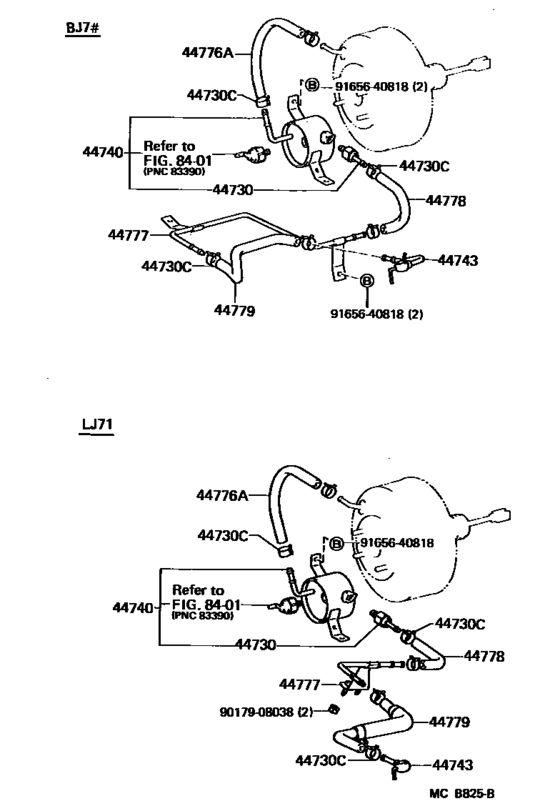

Brake Booster & Vacuum Tube ([08.1988 - ] (8411-8808) ; (8808- )BJ71,74,LJ71) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44730
|
44730
44730-60040 Booster Kit, Brake[11.1984 - 01.1990] BJ7#,LJ71 |
44730-60040 |
US $77.93 |
||
|
44730C
|
44730C
90467-16002
Clip(Vaccum Transmitting Hose No.1)
[11.1984 - 01.1990] BJ7#,LJ71 |
90467-16002 |
— | ||
| replacement | |||||
|
44730C
|
44730C
96133-41500 Clamp Or Clip(For Air Hose, No.5)[11.1984 - 01.1990] BJ7#,LJ71 |
96133-41500 |
from US $2.26 |
||
|
44740
|
44740
44740-60090
Reservoir Assy, Vacuum
[11.1984 - 08.1987] BJ7#,LJ71 |
44740-60090 |
— | ||
|
44743
|
44743
90405-09122 Union(For Vacuum Pump)[10.1985 - 01.1990] BJ71,74..MTM |
90405-09122 |
US $10.77 |
||
|
44776A
|
44776A
95441-09280
Hose, Vacuum Reservoir To Brake Booster
[11.1984 - 01.1990] BJ7#,LJ71 |
95441-09280 |
— | ||
| replacement | |||||
|
44776A
|
44776A
95446-09300 Hose, Solenoid To Vacuum Tube[11.1984 - 01.1990] BJ7#,LJ71 |
95446-09300 |
US $11.65 |
||
|
44777
|
44777
44777-60030 Connector, Vacuum Hose, No.1[11.1984 - 01.1990] BJ7# |
44777-60030 |
US $17.91 |
||
|
44778
|
44778
44778-60030 Hose, Connector To Check Valve[11.1984 - 01.1990] BJ7#,LJ71 |
44778-60030 |
US $14.15 |
||
|
44779
|
44779
44774-60080
Hose, Union To Connector
[12.1988 - 01.1990] BJ71,74 |
44774-60080 |
— | ||
|
44779
|
44779
95444-09240 Hose, Union To Connector[11.1984 - 08.1988] BJ7# |
95444-09240 |
US $26.21 |
||
| replacement | |||||
|
44779
|
44779
44774-60080
Hose, Union To Connector
[11.1984 - 08.1988] BJ7# |
44774-60080 |
— | ||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
