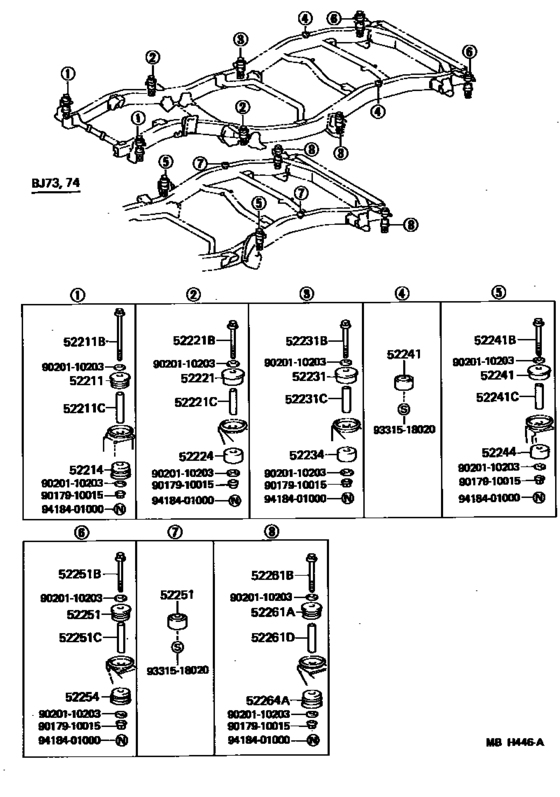

Cab Mounting & Body Mounting ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52211
|
52211
52201-25020 Cushion Sub-Assy, Cab Front Mounting[11.1984 - 01.1990] BJ7#,LJ71 |
52201-25020 |
from US $11.76 |
||
|
52211B
|
52211B
90105-10103 Bolt, Hexagon[11.1984 - 01.1990] BJ7#,LJ71 |
90105-10103 |
from US $1.82 |
||
|
52211C
|
52211C
90440-17021 Spacer(For Body Mounting No.1 Cushion)[11.1984 - 01.1990] BJ7#,LJ71 |
90440-17021 |
from US $9.99 |
||
|
52214
|
52214
52202-25020 Cushion Sub-Assy, Cab Front Mounting, Lower[11.1984 - 01.1990] BJ7#,LJ71 |
52202-25020 |
from US $16.72 |
||
| replacement | |||||
|
52214
|
52214
48760-42030 Arm Assy, Trailing, Rear RhTRAILING, REAR [11.1984 - 01.1990] BJ7#,LJ71 |
48760-42030 |
from US $132.22 |
||
|
52221
|
52221
52203-60020 Cushion Sub-Assy, Cab Mounting, No.2 Upper[11.1984 - 01.1990] BJ70,71,LJ71 |
52203-60020 |
from US $19.59 |
||
|
52221B
|
52221B
90105-10039
Bolt(For Body Mounting No.1 Cushion)
[11.1984 - 01.1990] BJ7#,LJ71 |
90105-10039 |
— | ||
| replacement | |||||
|
52221B
|
52221B
52217-60100 Bolt(For Body Mounting No.1 Cushion)[11.1984 - 01.1990] BJ7#,LJ71 |
52217-60100 |
from US $2.43 |
||
|
52221C
|
52221C
90560-12233 Spacer(For Body Mount No.2 Cushion)[11.1984 - 01.1990] BJ7#,LJ71 |
90560-12233 |
from US $4.10 |
||
|
52224
|
52224
52204-60020 Cushion Sub-Assy, Cab Mounting, No.2 Lower[11.1984 - 01.1990] BJ70,71,LJ71 |
52204-60020 |
from US $17.31 |
||
|
52231
|
52231
52203-60030 Cushion Sub-Assy, Cab Mounting, No.2 Upper[11.1984 - 01.1990] BJ7#,LJ71 |
52203-60030 |
from US $19.27 |
||
|
52231B
|
52231B
90105-10039
Bolt(For Body Mounting No.1 Cushion)
[11.1984 - 01.1990] BJ7#,LJ71 |
90105-10039 |
— | ||
| replacement | |||||
|
52231B
|
52231B
52217-60100 Bolt(For Body Mounting No.1 Cushion)[11.1984 - 01.1990] BJ7#,LJ71 |
52217-60100 |
from US $2.43 |
||
|
52231C
|
52231C
90560-12233 Spacer(For Body Mount No.2 Cushion)[11.1984 - 01.1990] BJ7#,LJ71 |
90560-12233 |
from US $4.10 |
||
|
52234
|
52234
52204-60030 Cushion Sub-Assy, Body Mounting, Rear Lower[11.1984 - 01.1990] BJ7#,LJ71 |
52204-60030 |
from US $15.71 |
||
|
52241
|
52241
52209-60020 Cushion Sub-Assy, Rear End Body Mounting, Upper[11.1984 - 01.1990] BJ70,71,LJ71 |
52209-60020 |
from US $9.86 |
||
|
52251
|
52251
52201-25020 Cushion Sub-Assy, Cab Front Mounting[11.1984 - 01.1990] BJ70,71,LJ71 |
52201-25020 |
from US $11.76 |
||
|
52251B
|
52251B
90105-10039
Bolt(For Body Mounting No.1 Cushion)
[11.1984 - 01.1990] BJ70,71,LJ71 |
90105-10039 |
— | ||
| replacement | |||||
|
52251B
|
52251B
52217-60100 Bolt(For Body Mounting No.1 Cushion)[11.1984 - 01.1990] BJ70,71,LJ71 |
52217-60100 |
from US $2.43 |
||
|
52251C
|
52251C
90440-17021 Spacer(For Body Mounting No.1 Cushion)[11.1984 - 01.1990] BJ70,71,LJ71 |
90440-17021 |
from US $9.99 |
||
|
52254
|
52254
52202-25020 Cushion Sub-Assy, Cab Front Mounting, Lower[11.1984 - 01.1990] BJ70,71,LJ71 |
52202-25020 |
from US $16.72 |
||
| replacement | |||||
|
52254
|
52254
48760-42030 Arm Assy, Trailing, Rear RhTRAILING, REAR [11.1984 - 01.1990] BJ70,71,LJ71 |
48760-42030 |
from US $132.22 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9020110203
|
9020110203
90201-10203 Washer, Plate |
90201-10203 |
from US $1.62 |
||
|
9331518020
|
9331518020
93315-18020
BOLT
|
93315-18020 |
— | ||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.10 |
||
