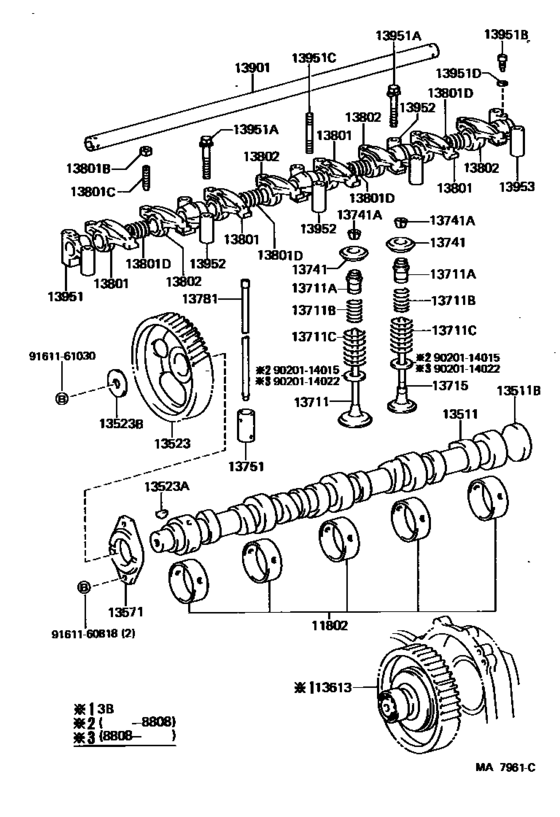

Camshaft & Valve ([08.1988 - ] (8411-8808)13BT,3B ; (8808- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11802
|
11802
11802-56020
Bearing Set, Camshaft
[11.1984 - 06.1986] 13BT,3B..BJ7# ＳＴＤ |
11802-56020 |
— | ||
|
11802
|
11802
11802-56021
Bearing Set, Camshaft
[06.1986 - 08.1988] 13BT,3B..BJ7# ＳＴＤ |
11802-56021 |
— | ||
|
13511
|
13511
13511-56050
Camshaft
[10.1985 - 01.1990] 13BT..BJ71,74 |
13511-56050 |
— | ||
|
13511B
|
13511B
90331-56001
Plug, Expansion(For Camshaft)
[11.1984 - 08.1988] 13BT,3B..BJ7# OD=56 |
90331-56001 |
— | ||
|
13523
|
13523
13523-56040 Gear Or Sprocket, Camshaft Timing[11.1984 - 01.1990] 13BT,3B..BJ7# |
13523-56040 |
US $221.31 |
||
| replacement | |||||
|
13523
|
13523
13523-58010 Gear Or Sprocket, Camshaft Timing[11.1984 - 01.1990] 13BT,3B..BJ7# |
13523-58010 |
US $160.74 |
||
|
13523A
|
13523A
95161-10519 Key(For Oil Pump Drive Spline)[11.1984 - 01.1990] 13BT,3B..BJ7# |
95161-10519 |
from US $1.60 |
||
|
13523B
|
13523B
90201-10227 Washer, Plate(For Timing Gear)[11.1984 - 01.1990] 13BT,3B..BJ7# |
90201-10227 |
US $3.06 |
||
|
13571
|
13571
13571-56020
Plate, Camshaft Thrust
[11.1984 - 08.1988] 13BT,3B..BJ7# |
13571-56020 |
— | ||
| replacement | |||||
|
13571
|
13571
13571-56030 Plate, Camshaft Thrust[11.1984 - 08.1988] 13BT,3B..BJ7# |
13571-56030 |
US $34.25 |
||
|
13711
|
13711
13711-58010 Valve, Intake[11.1984 - 08.1988] 13BT,3B..BJ7# |
13711-58010 |
from US $22.97 |
||
|
13711A
|
13711A
90913-02051 Seal Or Ring, O(For Valve Stem Oil)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90913-02051 |
from US $7.14 |
||
|
13711A
|
13711A
90913-02076 Seal Or Ring, O(For Valve Stem Oil)[08.1988 - 01.1990] 13BT,3B..BJ7# |
90913-02076 |
from US $4.54 |
||
|
13711B
|
13711B
90501-31001
Spring, Compression(For Inner)
[10.1985 - 01.1990] 13BT..BJ71,74 |
90501-31001 |
— | ||
|
13711C
|
13711C
90501-44006
Spring, Compression(For Outer)
[10.1985 - 01.1990] 13BT..BJ71,74 |
90501-44006 |
— | ||
|
13715
|
13715
13715-58030
Valve, Exhaust
[10.1985 - 01.1990] 13BT..BJ71,74 |
13715-58030 |
— | ||
|
13741
|
13741
13741-56030 Retainer, Valve Spring[10.1985 - 01.1990] 13BT..BJ71,74 |
13741-56030 |
US $9.46 |
||
|
13741A
|
13741A
90913-03019 Lock, Valve Spring Retainer[11.1984 - 08.1988] 13BT,3B..BJ7# |
90913-03019 |
US $3.40 |
||
|
13751
|
13751
13751-56020
Lifter, Valve
[11.1984 - 08.1988] 13BT,3B..BJ7# |
13751-56020 |
— | ||
|
13781
|
13781
13781-56010 Rod, Valve Push[11.1984 - 08.1988] 13BT,3B..BJ7# |
13781-56010 |
from US $14.10 |
||
|
13801
|
13801
13811-56040
Arm Sub-Assy, Valve Rocker, No.1
[10.1985 - 01.1990] 13BT..BJ71,74 |
13811-56040 |
— | ||
|
13801B
|
13801B
90041-70001
Nut, Hexagon(For Valve Adjusting)
[11.1984 - 04.1986] 13BT,3B..BJ7# |
90041-70001 |
— | ||
|
13801B
|
13801B
90170-08022
Nut, Hexagon(For Valve Adjusting)
[04.1986 - 08.1988] 13BT,3B..BJ7# |
90170-08022 |
— | ||
|
13801C
|
13801C
90913-05021 Screw, Valve Adjusting[11.1984 - 08.1988] 13BT,3B..BJ7# |
90913-05021 |
US $4.89 |
||
|
13801D
|
13801D
90501-16163
Spring, Compression(For Rocker Arm)
[11.1984 - 08.1988] 13BT,3B..BJ7# WD=1.6,CW=7.5; 2LT..LJ71 WD=1.6,CW=7.5 |
90501-16163 |
— | ||
|
13802
|
13802
13811-56040
Arm Sub-Assy, Valve Rocker, No.1
[10.1985 - 01.1990] 13BT..BJ71,74 |
13811-56040 |
— | ||
|
13901
|
13901
13901-56020
Shaft Sub-Assy, Valve Rocker, No.1
[11.1984 - 04.1988] 13BT,3B..BJ7# |
13901-56020 |
— | ||
| replacement | |||||
|
13901
|
13901
13901-56030 Shaft Sub-Assy, Valve Rocker, No.1[11.1984 - 04.1988] 13BT,3B..BJ7# |
13901-56030 |
from US $43.33 |
||
|
13901
|
13901
13901-56030 Shaft Sub-Assy, Valve Rocker, No.1[04.1988 - 01.1990] 13BT,3B..BJ7# |
13901-56030 |
from US $43.33 |
||
|
13951
|
13951
13951-56020 Support, Valve Rocker, No.1[10.1985 - 01.1990] 13BT..BJ71,74 |
13951-56020 |
US $32.03 |
||
| replacement | |||||
|
13951
|
13951
13951-56021 Support, Valve Rocker, No.1[10.1985 - 01.1990] 13BT..BJ71,74 |
13951-56021 |
US $32.03 |
||
|
13951A
|
13951A
90105-08165 Bolt(For Rocker Support Set)[08.1988 -] 13BT,3B..BJ7# *8-1.25PX53-30 |
90105-08165 |
US $1.51 |
||
|
13951A
|
13951A
90105-08177 Bolt(For Rocker Support Set)[08.1988 -] 13BT,3B..BJ7# *8-1.25PX63-30 |
90105-08177 |
US $1.46 |
||
|
13951A
|
13951A
91611-60855 Bolt(For Rocker Support Set)[11.1984 - 08.1988] 13BT,3B..BJ7# *8-1.25PX55-30 |
91611-60855 |
US $1.79 |
||
|
13951A
|
13951A
91611-60865 Bolt(For Rocker Support Set)[11.1984 - 08.1988] 13BT,3B..BJ7# *8-1.25PX65-30 |
91611-60865 |
US $2.15 |
||
|
13951B
|
13951B
13958-56010 Screw Or Bolt(For Valve Rocker Shaft Lock)[11.1984 - 01.1990] 13BT,3B..BJ7# |
13958-56010 |
US $3.04 |
||
|
13951C
|
13951C
90116-08123
Bolt, Stud(For Rocker Support)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
90116-08123 |
— | ||
|
13951D
|
13951D
90201-06177 Washer, Seal(For Head Cover Set)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90201-06177 |
US $0.93 |
||
|
13951D
|
13951D
90201-06350 Washer, Seal(For Head Cover Set)[08.1988 - 01.1990] 13BT..BJ71,74 |
90201-06350 |
US $0.87 |
||
|
13952
|
13952
13952-56020 Support, Valve Rocker, No.2[10.1985 - 01.1990] 13BT..BJ71,74 |
13952-56020 |
US $34.51 |
||
| replacement | |||||
|
13952
|
13952
13952-56021 Support, Valve Rocker, No.2[10.1985 - 01.1990] 13BT..BJ71,74 |
13952-56021 |
US $34.94 |
||
|
13953
|
13953
13953-56020 Support, Valve Rocker, No.3[10.1985 - 01.1990] 13BT..BJ71,74 |
13953-56020 |
US $32.03 |
||
| replacement | |||||
|
13953
|
13953
13953-56021 Support, Valve Rocker, No.3[10.1985 - 01.1990] 13BT..BJ71,74 |
13953-56021 |
US $32.03 |
||
|
9020114015
|
9020114015
90201-14015
New Genuine Part
|
90201-14015 |
— | ||
|
9020114022
|
9020114022
90201-14022
New Genuine Part
|
90201-14022 |
— | ||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.05 |
||
