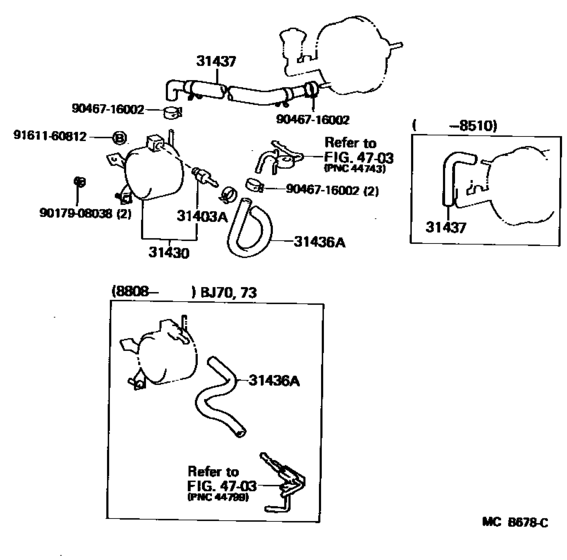

Clutch Booster ([11.1984 - ] (8411- )BJ7#..MTM) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31403A
|
31403A
44730-60040 Booster Kit, Brake[11.1984 - 01.1990] BJ7#..MTM |
44730-60040 |
US $77.93 |
||
|
31430
|
31430
31430-60030
Reservoir Assy, Clutch Vacuum
[11.1984 - 01.1990] BJ7#..MTM |
31430-60030 |
— | ||
|
31436A
|
31436A
31437-60060
Hose, No.1(For Clutch Booster Vacuum)
[11.1984 - 08.1988] BJ7#..MTM |
31437-60060 |
— | ||
|
31437
|
31437
31438-60040 Hose, No.2(For Clutch Booster Vacuum)[10.1985 - 06.1988] BJ71,74..MTM |
31438-60040 |
US $56.49 |
||
| replacement | |||||
|
31437
|
31437
31438-60041 Hose, No.2(For Clutch Booster Vacuum)[10.1985 - 06.1988] BJ71,74..MTM |
31438-60041 |
US $56.64 |
||
|
31437
|
31437
31438-60041 Hose, No.2(For Clutch Booster Vacuum)[06.1988 - 01.1990] BJ71,74..MTM |
31438-60041 |
US $56.64 |
||
|
9017908038
|
9017908038
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9046716002
|
9046716002
90467-16002
Clip(Vaccum Transmitting Hose No.1)
|
90467-16002 |
— | ||
| replacement | |||||
|
9046716002
|
9046716002
96133-41500 Clamp Or Clip(For Air Hose, No.5) |
96133-41500 |
from US $2.26 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
