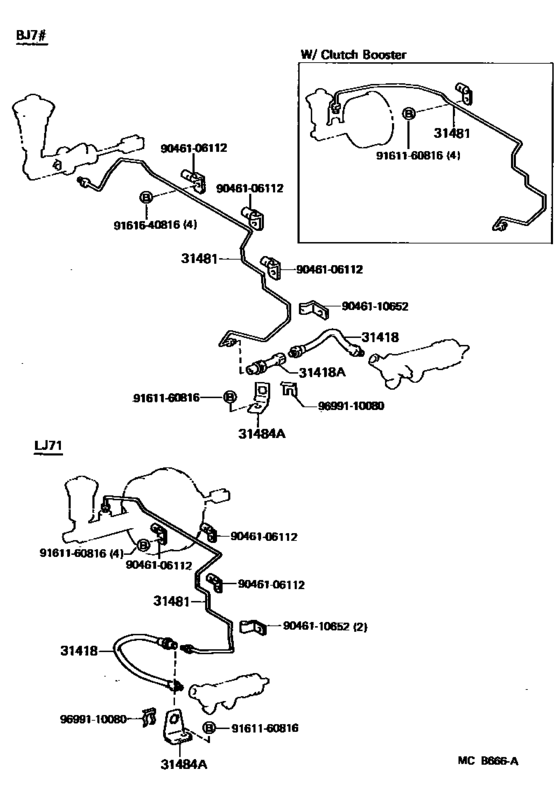

Clutch Pedal & Flexible Hose ([11.1984 - ] (8411- )MTM) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31418
|
31418
90931-01020
Hose, Clutch
[10.1985 - 01.1990] BJ7#..MTM |
90931-01020 |
— | ||
|
31418A
|
31418A
90404-10028 Union(For Clutch Hose)[11.1984 - 01.1990] BJ7#..MTM |
90404-10028 |
US $8.15 |
||
|
31481
|
31481
31481-60411 Tube, Clutch Master Cylinder To Flexible Hose[10.1985 - 01.1990] BJ7#..MTM W/CLUTCH BOOSTER |
31481-60411 |
US $19.80 |
||
|
31484A
|
31484A
31484-60050
Bracket, Flexible Hose, No.1(For Clutch)
[11.1984 - 01.1990] BJ7#..MTM |
31484-60050 |
— | ||
|
9046106112
|
9046106112
90461-06112 Clamp, Brake Tube, No.6 |
90461-06112 |
US $2.33 |
||
|
9046110652
|
9046110652
90461-10652 New Genuine Part |
90461-10652 |
US $4.66 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9699110080
|
9699110080
96991-10080 CLIP |
96991-10080 |
from US $1.16 |
||
