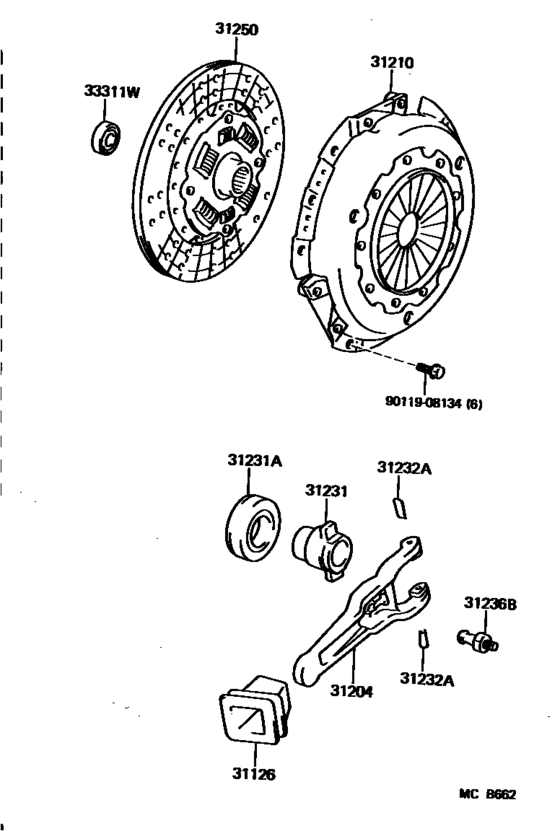

Clutch & Release Fork ([11.1984 - ] (8411- )BJ7#..MTM) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31126
|
31126
31126-60030
Boot, Clutch Release Fork
[11.1984 - 01.1990] BJ7#..MTM |
31126-60030 |
— | ||
|
31204
|
31204
31204-60080
Fork Sub-Assy, Clutch Release
[11.1984 - 01.1990] BJ7#..MTM |
31204-60080 |
— | ||
|
31210
|
31210
31210-36140 Cover Assy, Clutch[09.1988 - 10.1989] BJ71,74..MTM |
31210-36140 |
US $327.60 |
||
| replacement | |||||
|
31210
|
31210
31210-36330 Cover Assy, ClutchCLUTCH [09.1988 - 10.1989] BJ71,74..MTM |
31210-36330 |
from US $224.81 |
||
|
31210
|
31210
31210-36160
Cover Assy, Clutch
[10.1989 - 01.1990] BJ71,74..MTM |
31210-36160 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36330 Cover Assy, ClutchCLUTCH [10.1989 - 01.1990] BJ71,74..MTM |
31210-36330 |
from US $224.81 |
||
|
31210
|
31210
31210-60070
Cover Assy, Clutch
[10.1985 - 12.1987] BJ71,74..MTM |
31210-60070 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36330 Cover Assy, ClutchCLUTCH [10.1985 - 12.1987] BJ71,74..MTM |
31210-36330 |
from US $224.81 |
||
|
31210
|
31210
31210-60071
Cover Assy, Clutch
[12.1987 - 09.1988] BJ71,74..MTM |
31210-60071 |
— | ||
| replacement | |||||
|
31210
|
31210
31210-36330 Cover Assy, ClutchCLUTCH [12.1987 - 09.1988] BJ71,74..MTM |
31210-36330 |
from US $224.81 |
||
|
31231
|
31231
31231-60100
Hub, Clutch Release Bearing
[10.1985 - 08.1988] BJ71,74..MTM |
31231-60100 |
— | ||
|
31231A
|
31231A
90363-45009 Bearing, Ball(For Clutch Release Hub)[10.1985 - 09.1987] BJ71,74..MTM |
90363-45009 |
US $74.26 |
||
| replacement | |||||
|
31231A
|
31231A
90363-45013 Bearing, Ball(For Clutch Release Hub)[10.1985 - 09.1987] BJ71,74..MTM |
90363-45013 |
from US $30.70 |
||
|
31231A
|
31231A
90363-45013 Bearing, Ball(For Clutch Release Hub)[09.1987 - 01.1990] BJ71,74..MTM |
90363-45013 |
from US $30.70 |
||
|
31232A
|
31232A
31232-60020 Clip Or Spring, Release Bearing Hub[11.1984 - 01.1990] BJ7#..MTM |
31232-60020 |
from US $1.03 |
||
|
31236B
|
31236B
31236-60030
Ball, Release Fork
[11.1984 - 01.1990] BJ7#..MTM |
31236-60030 |
— | ||
|
31250
|
31250
31250-60120 Disc Assy, Clutch[10.1985 - 10.1986] BJ71,74..MTM |
31250-60120 |
US $253.34 |
||
| replacement | |||||
|
31250
|
31250
31250-36406 Disc Assy, Clutch[10.1985 - 10.1986] BJ71,74..MTM |
31250-36406 |
US $172.97 |
||
|
31250
|
31250
31250-60121 Disc Assy, Clutch[10.1986 - 08.1987] BJ71,74..MTM |
31250-60121 |
US $253.34 |
||
| replacement | |||||
|
31250
|
31250
31250-36406 Disc Assy, Clutch[10.1986 - 08.1987] BJ71,74..MTM |
31250-36406 |
US $172.97 |
||
|
31250
|
31250
31250-60190 Disc Assy, Clutch[08.1987 - 01.1990] BJ71,74..MTM |
31250-60190 |
US $374.19 |
||
| replacement | |||||
|
31250
|
31250
31250-60431
Disc Assy, Clutch
[08.1987 - 01.1990] BJ71,74..MTM |
31250-60431 |
— | ||
|
33311W
|
33311W
90363-12002
Bearing (For Input Shaft)
[11.1984 - 01.1990] BJ7#,LJ71..MTM |
90363-12002 |
— | ||
| replacement | |||||
|
33311W
|
33311W
90363-12024 Bearing, Radial Ball[11.1984 - 01.1990] BJ7#,LJ71..MTM |
90363-12024 |
from US $5.53 |
||
|
9011908134
|
9011908134
90119-08134 BOLT |
90119-08134 |
from US $0.76 |
||
