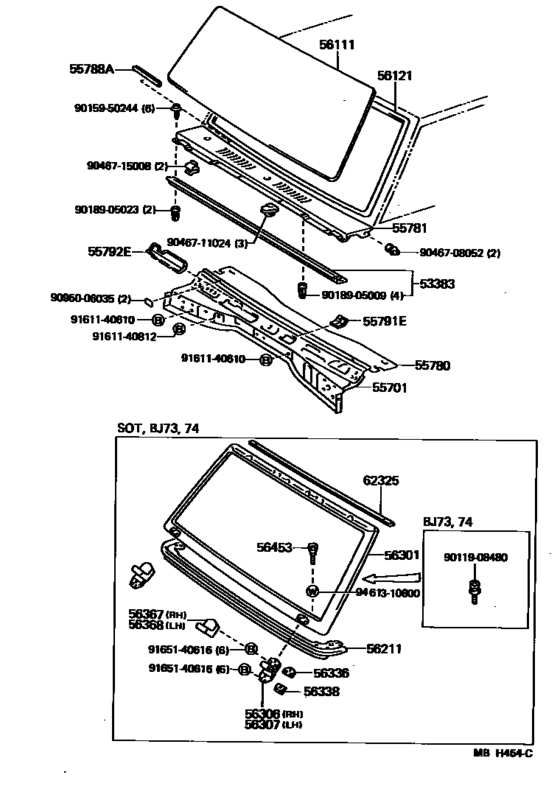

Cowl Panel & Windshield Glass ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383
|
53383
53383-90K00
Seal, Hood To Cowl Top
[11.1984 - 01.1990] BJ7#,LJ71 |
53383-90K00 |
— | ||
| replacement | |||||
|
53383
|
53383
53383-60040 Seal, Hood To Cowl Top[11.1984 - 01.1990] BJ7#,LJ71 |
53383-60040 |
from US $30.99 |
||
|
55701
|
55701
55700-90K34 Panel Sub-Assy, Cowl[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
55700-90K34 |
US $551.82 |
||
|
55780
|
55780
55780-90K00
Insulator Assy, Cowl Top
[11.1984 - 01.1990] BJ7#,LJ71 |
55780-90K00 |
— | ||
|
55781
|
55781
55781-90K00 Louver, Cowl Ventilator[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
55781-90K00 |
US $88.82 |
||
| replacement | |||||
|
55781
|
55781
55781-60041 Louver, Cowl Top Ventilator[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
55781-60041 |
from US $74.26 |
||
|
55788A
|
55788A
55788-90K00
Protector, Cowl Top Ventilator Louver
[06.1985 - 01.1990] BJ7#,LJ71 |
55788-90K00 |
— | ||
|
55791E
|
55791E
55791-90K00 Cover, Heater Duct Hole[11.1984 - 01.1990] BJ7#,LJ71 |
55791-90K00 |
US $6.81 |
||
|
55792E
|
55792E
55792-90K00 Cover, Heater Air Duct Hole, No.2[11.1984 - 01.1990] BJ7#,LJ71 |
55792-90K00 |
US $15.59 |
||
|
56111
|
56111
56111-90K03
Glass, Windshield
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＬ，Ｔ＝５．３,*TL,T=5.3 |
56111-90K03 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-60220 Glass, Windshield[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＬ，Ｔ＝５．３,*TL,T=5.3 |
56111-60220 |
US $383.55 |
||
|
56121
|
56121
56121-90K02
Weatherstrip, Windshield
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5,SX5 |
56121-90K02 |
— | ||
| replacement | |||||
|
56121
|
56121
56121-60130 Weatherstrip, WindshieldFor model with moulding [10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5,SX5 |
56121-60130 |
from US $122 |
||
|
9011908480
|
9011908480
90119-08480 Handle, Windshield Catch |
90119-08480 |
US $3.49 |
||
|
9015950244
|
9015950244
90159-50244 SCREW |
90159-50244 |
from US $0.95 |
||
|
9018905009
|
9018905009
90189-05009 CLIP |
90189-05009 |
US $3.05 |
||
|
9018905023
|
9018905023
90189-05023 CLIP |
90189-05023 |
US $1.08 |
||
|
9046708052
|
9046708052
90467-08052
Seal, Cowl Top To Louver
|
90467-08052 |
— | ||
| replacement | |||||
|
9046708052
|
9046708052
55789-60030 Seal, Cowl Top To Louver |
55789-60030 |
from US $0.91 |
||
|
9046711024
|
9046711024
90467-11024 CLIP |
90467-11024 |
from US $1.06 |
||
|
9046715008
|
9046715008
90467-15008 CLIP |
90467-15008 |
from US $1.98 |
||
|
9095006035
|
9095006035
90950-06035
Protector, Front Side Panel, No.3
|
90950-06035 |
— | ||
| replacement | |||||
|
9095006035
|
9095006035
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $3.05 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9461310800
|
9461310800
94613-10800 Spacer (For Control Select Lever Support) |
94613-10800 |
from US $0.67 |
||
