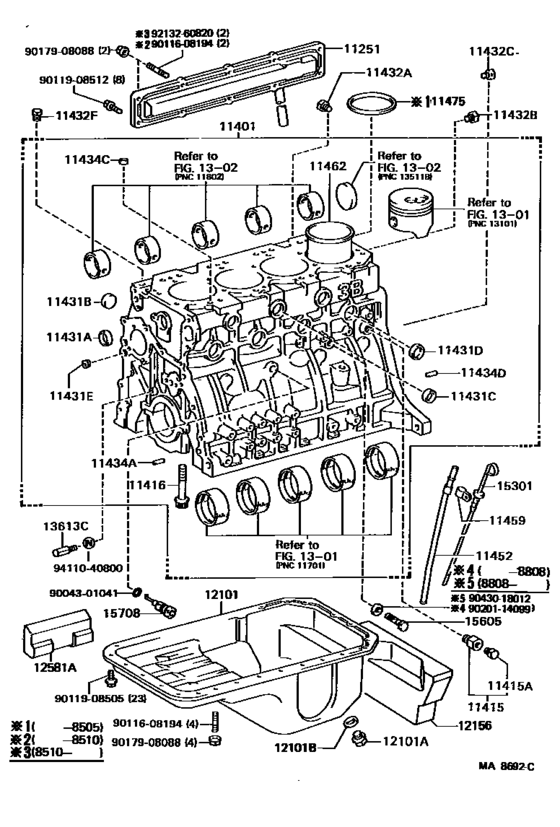

Cylinder Block ([08.1988 - ] (8411-8808)13BT,3B ; (8808- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11251
|
11251
11203-56050 Cover, Valve Push Rod[10.1985 - 01.1990] 13BT..BJ71,74 |
11203-56050 |
US $53 |
||
|
11401
|
11401
11401-59295
Block Sub-Assy, Cylinder
[10.1985 - 08.1988] 13BT..BJ71,74 |
11401-59295 |
— | ||
| replacements | |||||
|
11401
|
11401
11381-58011 Retainer, Engine Rear Oil Seal[10.1985 - 08.1988] 13BT..BJ71,74 |
11381-58011 |
US $62.90 |
||
|
11401
|
11401
15403-56050 Pipe Sub-Assy, Oil Pump Outlet[10.1985 - 08.1988] 13BT..BJ71,74 |
15403-56050 |
US $54.16 |
||
|
11401
|
11401
15605-56010 Valve Sub-Assy, Oil Check[10.1985 - 08.1988] 13BT..BJ71,74 |
15605-56010 |
US $32.32 |
||
|
11401
|
11401
90401-20009 Union(For Oil Pump Outlet Pipe)[10.1985 - 08.1988] 13BT..BJ71,74 |
90401-20009 |
US $5.42 |
||
|
11401
|
11401
90430-18012 Gasket(For Oil Pump Outlet Pipe)[10.1985 - 08.1988] 13BT..BJ71,74 |
90430-18012 |
US $3.05 |
||
|
11401
|
11401
90430-20018 Gasket(For Oil Pump Outlet Pipe)[10.1985 - 08.1988] 13BT..BJ71,74 |
90430-20018 |
from US $1.16 |
||
|
11401
|
11401
11401-59297
Block Sub-assy, Cylinder
[10.1985 - 08.1988] 13BT..BJ71,74 |
11401-59297 |
— | ||
|
11401
|
11401
11401-59405 Block Sub-Assy, Cylinder[08.1988 -] 13BT..BJ71,74 |
11401-59405 |
US $4,571.84 |
||
| replacements | |||||
|
11401
|
11401
11381-58011 Retainer, Engine Rear Oil Seal[08.1988 -] 13BT..BJ71,74 |
11381-58011 |
US $62.90 |
||
|
11401
|
11401
11401-59407 Block Sub-assy, Cylinder[08.1988 -] 13BT..BJ71,74 |
11401-59407 |
US $4,135.04 |
||
|
11415
|
11415
96431-53828 Cock Sub-Assy, Water Drain(For Cylinder Block)[04.1985 - 07.1989] 13BT,3B..BJ7#; 2LT..LJ71 |
96431-53828 |
US $8.12 |
||
|
11415A
|
11415A
96432-23814
Plug, Water Drain Cock(For Cylinder Block)
[04.1985 - 07.1989] 13BT,3B..BJ7# L=24; 2LT..LJ71 L=24 |
96432-23814 |
— | ||
|
11416
|
11416
90109-16001
Bolt(For Crankshaft Bearing Cap Set)
[11.1984 - 08.1988] 13BT,3B..BJ7# *16-2PX88.5-32 |
90109-16001 |
— | ||
|
11431A
|
11431A
90331-51032 Plug, Tight, No.1(For Cylinder Block)[11.1984 - 08.1988] 13BT,3B..BJ7# OD=51 |
90331-51032 |
from US $6.63 |
||
|
11431B
|
11431B
96411-42800 Plug, Tight, No.1[09.1985 - 08.1988] 13BT,3B..BJ7# OD=28 |
96411-42800 |
from US $2.81 |
||
|
11431C
|
11431C
96411-43000 Plug, Tight, No.1[09.1985 - 01.1990] 13BT,3B..BJ7# OD=30 |
96411-43000 |
from US $3.57 |
||
|
11431D
|
11431D
96411-43500 Plug, Tight, No.1[09.1985 - 08.1988] 13BT,3B..BJ7# OD=35 |
96411-43500 |
from US $3.48 |
||
|
11431E
|
11431E
96411-11400
Plug, Tight, No.5(For Cylinder Block)
[09.1985 - 12.1986] 13BT,3B..BJ7# OD=14,OIL HOLE |
96411-11400 |
— | ||
| replacement | |||||
|
11431E
|
11431E
96411-41400 Plug, Tight, No.5(For Cylinder Block)[09.1985 - 12.1986] 13BT,3B..BJ7# OD=14,OIL HOLE |
96411-41400 |
US $2.15 |
||
|
11431E
|
11431E
96411-41400 Plug, Tight, No.5(For Cylinder Block)[12.1986 - 01.1990] 13BT,3B..BJ7# OD=14,OIL HOLE |
96411-41400 |
US $2.15 |
||
|
11432A
|
11432A
90043-45027 Plug, W/head Taper Screw, No.1[11.1984 - 08.1988] 13BT,3B..BJ7# |
90043-45027 |
US $5.53 |
||
| replacement | |||||
|
11432A
|
11432A
90345-51007 Plug, W/head Taper Screw, No.1[11.1984 - 08.1988] 13BT,3B..BJ7# |
90345-51007 |
US $0.70 |
||
|
11432B
|
11432B
90345-53001
Plug, Water Drain Cock(For Cylinder Block)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
90345-53001 |
— | ||
|
11432B
|
11432B
90345-53004 Plug, W/head Taper Screw, No.2[08.1988 - 01.1990] 13BT,3B..BJ7# |
90345-53004 |
US $2.48 |
||
|
11432C
|
11432C
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.1984 - 01.1990] 13BT,3B..BJ7# |
90345-52001 |
from US $4.12 |
||
|
11432F
|
11432F
90043-45010
Plug, W/head Taper Screw, No.1
[11.1984 - 08.1986] 13BT,3B..BJ7# |
90043-45010 |
— | ||
|
11434A
|
11434A
90250-08120 Pin, Straight, No.1[11.1984 - 01.1990] 13BT,3B..BJ7# 長さ＝１８，外径＝８ |
90250-08120 |
from US $0.99 |
||
|
11434C
|
11434C
90253-15005 Pin, Ring(For Crankshaft Bearing Cap Set)[11.1984 - 01.1990] 13BT,3B..BJ7# 長さ＝７，外径＝１４．５; 2LT..LJ71 長さ＝７，外径＝１４．５ |
90253-15005 |
from US $1.52 |
||
|
11434D
|
11434D
90250-08120 Pin, Straight, No.1[11.1984 - 01.1990] 13BT,3B..BJ7# 長さ＝１８，外径＝８ |
90250-08120 |
from US $0.99 |
||
|
11452
|
11452
11452-56050 Guide, Oil Level Gage[11.1984 - 01.1990] 13BT,3B..BJ7# |
11452-56050 |
US $25.68 |
||
|
11459
|
11459
11459-56040 Support, Oil Level Gage Guide[11.1984 - 01.1990] 13BT,3B..BJ7# |
11459-56040 |
US $11.71 |
||
|
11462
|
11462
11461-58020 Liner, Cylinder[11.1984 - 08.1988] 13BT,3B..BJ7# |
11461-58020 |
US $290.04 |
||
|
12101
|
12101
12101-56070
Pan Sub-Assy, Oil
[10.1985 - 08.1986] 13BT..BJ71,74 |
12101-56070 |
— | ||
|
12101A
|
12101A
90341-18089
Plug(For Oil Pan Drain)
[11.1984 - 01.1990] 13BT,3B..BJ7#; 2LT..LJ71 |
90341-18089 |
— | ||
| replacement | |||||
|
12101A
|
12101A
90033-41020 Plug(For Oil Pan Drain)[11.1984 - 01.1990] 13BT,3B..BJ7#; 2LT..LJ71 |
90033-41020 |
from US $2.13 |
||
|
12101B
|
12101B
90430-18018
Gasket(For Oil Pan Drain Plug)
[08.1988 - 01.1990] 13BT,3B..BJ7# |
90430-18018 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[08.1988 - 01.1990] 13BT,3B..BJ7# |
90430-18023 |
from US $1.01 |
||
|
12101B
|
12101B
90430-18244
Gasket(For Oil Pan Drain Plug)
[11.1984 - 08.1988] 13BT,3B..BJ7# |
90430-18244 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-18023 Gasket(For Oil Pan)[11.1984 - 08.1988] 13BT,3B..BJ7# |
90430-18023 |
from US $1.01 |
||
|
12156
|
12156
12156-58010
Insulator, Oil Pan
[10.1985 - 08.1986] 13BT..BJ71,74 |
12156-58010 |
— | ||
|
12581A
|
12581A
12581-58010 Insulator, Cylinder Block, No.1[10.1985 - 01.1990] 13BT..BJ71,74 |
12581-58010 |
US $72.36 |
||
|
13613C
|
13613C
90915-01015 Nozzle, Oil[11.1984 - 01.1990] 13BT,3B..BJ7# |
90915-01015 |
US $7.34 |
||
|
15301
|
15301
15301-56040
Gage Sub-Assy, Oil Level
[11.1984 - 08.1988] 13BT,3B..BJ7# |
15301-56040 |
— | ||
| replacement | |||||
|
15301
|
15301
15301-56060 Gage Sub-Assy, Oil Level[11.1984 - 08.1988] 13BT,3B..BJ7# |
15301-56060 |
US $16.31 |
||
|
15605
|
15605
15605-56010 Valve Sub-Assy, Oil Check[08.1988 - 01.1990] 13BT,3B..BJ7# |
15605-56010 |
US $32.32 |
||
|
15605
|
15605
15605-58010
Valve Sub-Assy, Oil Check
[11.1984 - 08.1988] 13BT,3B..BJ7# |
15605-58010 |
— | ||
|
15708
|
15708
15708-58020
Nozzle Sub-Assy, Oil, No.1
[11.1984 - 01.1990] 13BT,3B..BJ7# |
15708-58020 |
— | ||
| replacement | |||||
|
15708
|
15708
15708-56010 Nozzle Sub-Assy, Oil, No.1[11.1984 - 01.1990] 13BT,3B..BJ7# |
15708-56010 |
from US $14.97 |
||
|
9004301041
|
9004301041
90043-01041
Ring, O(For Timing Gear Case, Lower)
|
90043-01041 |
— | ||
| replacement | |||||
|
9004301041
|
9004301041
96721-24010 Ring, O(For Timing Gear Case, Lower) |
96721-24010 |
from US $0.84 |
||
|
9011608194
|
9011608194
90116-08194 Bolt |
90116-08194 |
US $1.97 |
||
|
9011908505
|
9011908505
90119-08505 Bolt, Washer |
90119-08505 |
US $1.79 |
||
|
9011908512
|
9011908512
90119-08512 New Genuine Part |
90119-08512 |
US $1.89 |
||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.46 |
||
|
9043018012
|
9043018012
90430-18012 Gasket(For Oil Pump Outlet Pipe) |
90430-18012 |
US $3.05 |
||
|
9213260820
|
9213260820
92132-60820 Bolt, Stud(For Intake Manifold To Cylinder Head) |
92132-60820 |
US $0.79 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
