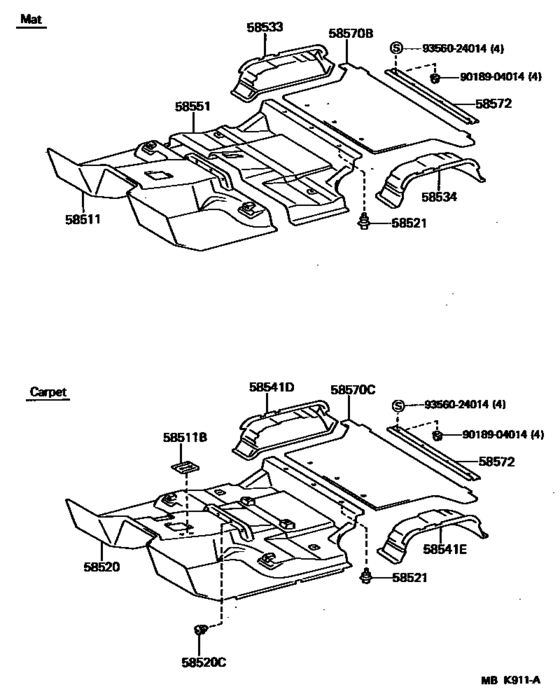

Floor Mat & Silencer Pad ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58511B
|
58511B
58562-90K00-01
Mat, Floor, Front Side
[11.1984 - 01.1990] BJ7#..LX BLACK,BLACK |
58562-90K00-01 |
— | ||
|
58520
|
58520
58510-90K05-03 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX GRAY,SHADOW GRAY |
58510-90K05-03 |
US $827.01 |
||
| replacement | |||||
|
58520
|
58520
58510-90L32-03 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX GRAY,SHADOW GRAY |
58510-90L32-03 |
US $832.83 |
||
|
58520
|
58520
58510-90K05-06 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX BROWN,SEPIA BROWN |
58510-90K05-06 |
US $827.01 |
||
| replacement | |||||
|
58520
|
58520
58510-90L32-06 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX BROWN,SEPIA BROWN |
58510-90L32-06 |
US $832.83 |
||
|
58520
|
58520
58510-90K31-03 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX W/*SUS,GRAY,SHADOW GRAY |
58510-90K31-03 |
US $827.01 |
||
| replacement | |||||
|
58520
|
58520
58510-90L33-03 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX W/*SUS,GRAY,SHADOW GRAY |
58510-90L33-03 |
US $832.83 |
||
|
58520
|
58520
58510-90K31-06 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX W/*SUS,BROWN,SEPIA BROWN |
58510-90K31-06 |
US $827.01 |
||
| replacement | |||||
|
58520
|
58520
58510-90L33-06 Carpet Assy, Front Floor[11.1984 - 08.1986] BJ70,71..LX W/*SUS,BROWN,SEPIA BROWN |
58510-90L33-06 |
US $832.83 |
||
|
58520
|
58520
58510-90L32-03 Carpet Assy, Front Floor[08.1986 - 01.1990] BJ70,71..LX GRAY,SHADOW GRAY |
58510-90L32-03 |
US $832.83 |
||
|
58520
|
58520
58510-90L32-06 Carpet Assy, Front Floor[08.1986 - 01.1990] BJ70,71..LX BROWN,SEPIA BROWN |
58510-90L32-06 |
US $832.83 |
||
|
58520
|
58520
58510-90L33-03 Carpet Assy, Front Floor[08.1986 - 01.1990] BJ70,71..LX W/*SUS,GRAY,SHADOW GRAY |
58510-90L33-03 |
US $832.83 |
||
|
58520
|
58520
58510-90L33-06 Carpet Assy, Front Floor[08.1986 - 01.1990] BJ70,71..LX W/*SUS,BROWN,SEPIA BROWN |
58510-90L33-06 |
US $832.83 |
||
|
58520C
|
58520C
90467-12014-13 Clip(For Front Floor Carpet)[05.1986 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/*SUS,GRAY,SHADOW GRAY |
90467-12014-13 |
US $2.33 |
||
| replacement | |||||
|
58520C
|
58520C
90467-12014-23 Clip(For Front Floor Carpet)[05.1986 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/*SUS,GRAY,SHADOW GRAY |
90467-12014-23 |
US $1.89 |
||
|
58520C
|
58520C
90467-12014-16 Clip(For Front Floor Carpet)[05.1986 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/*SUS,BROWN,SEPIA BROWN |
90467-12014-16 |
US $2.33 |
||
| replacement | |||||
|
58520C
|
58520C
90467-12014-E0 Clip(For Front Floor Carpet)[05.1986 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/*SUS,BROWN,SEPIA BROWN |
90467-12014-E0 |
US $1.89 |
||
|
58521
|
58521
90530-06001 Fastener, Hook[11.1984 - 01.1990] BJ70,71,LJ71 |
90530-06001 |
US $1.97 |
||
|
58541D
|
58541D
62613-90K03-03 Carpet, Rear Wheel House, Rh[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5 GRAY,SHADOW GRAY |
62613-90K03-03 |
US $206.75 |
||
|
58541D
|
58541D
62613-90K03-06 Carpet, Rear Wheel House, Rh[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5 BROWN,SEPIA BROWN |
62613-90K03-06 |
US $206.75 |
||
|
58541E
|
58541E
62614-90K03-03 Carpet, Rear Wheel House, Lh[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5 GRAY,SHADOW GRAY |
62614-90K03-03 |
US $205.30 |
||
| replacement | |||||
|
58541E
|
58541E
62614-60391-B1
Cover, Quarter Wheel House, Lh
[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5 GRAY,SHADOW GRAY |
62614-60391-B1 |
— | ||
|
58541E
|
58541E
62614-90K03-06 Carpet, Rear Wheel House, Lh[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5 BROWN,SEPIA BROWN |
62614-90K03-06 |
US $205.30 |
||
| replacement | |||||
|
58541E
|
58541E
62614-60391-E1
Cover, Quarter Wheel House, Lh
[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5 BROWN,SEPIA BROWN |
62614-60391-E1 |
— | ||
|
58570C
|
58570C
58570-90K07-03 Carpet Assy, Rear Floor[10.1985 - 01.1990] BJ70,71..LX GRAY,SHADOW GRAY |
58570-90K07-03 |
US $311.58 |
||
|
58570C
|
58570C
58570-90K07-06 Carpet Assy, Rear Floor[10.1985 - 01.1990] BJ70,71..LX BROWN,SEPIA BROWN |
58570-90K07-06 |
US $311.58 |
||
| replacement | |||||
|
58570C
|
58570C
58570-90K07-16 Carpet Assy, Rear Floor[10.1985 - 01.1990] BJ70,71..LX BROWN,SEPIA BROWN |
58570-90K07-16 |
US $311.58 |
||
|
58572
|
58572
58573-90K00
Set Plate, Rear Floor Mat, Rear
[11.1984 - 01.1990] BJ7#,LJ71 |
58573-90K00 |
— | ||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.95 |
||
|
9356024014
|
9356024014
93560-24014 Screw |
93560-24014 |
US $1.43 |
||
