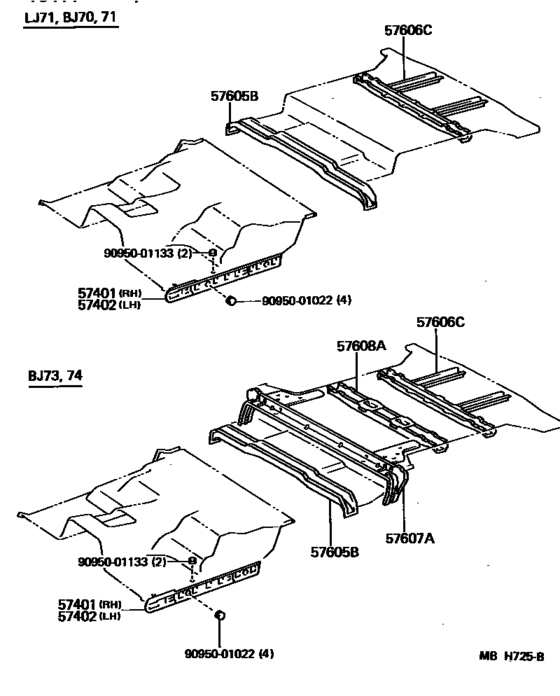

Floor Member ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57401
|
57401
57401-90K00 Member Sub-Assy, Main Floor Side, Rh[11.1984 - 01.1990] BJ7#,LJ71 |
57401-90K00 |
from US $156.72 |
||
|
57402
|
57402
57402-90K01
Member Sub-Assy, Main Floor Side, Lh
[10.1985 - 01.1990] BJ7#,LJ71 |
57402-90K01 |
— | ||
|
57605B
|
57605B
57605-90K00
Member Sub-Assy, Rear Floor Cross, No.1
[11.1984 - 08.1986] BJ7#,LJ71 |
57605-90K00 |
— | ||
| replacement | |||||
|
57605B
|
57605B
57605-60210 Member Sub-Assy, Rear Floor Cross, No.1[11.1984 - 08.1986] BJ7#,LJ71 |
57605-60210 |
US $179.09 |
||
|
57605B
|
57605B
57605-90K10 Member Sub-Assy, Rear Floor Cross, No.1[08.1986 - 01.1990] BJ7#,LJ71 |
57605-90K10 |
US $251.89 |
||
| replacement | |||||
|
57605B
|
57605B
57605-60210 Member Sub-Assy, Rear Floor Cross, No.1[08.1986 - 01.1990] BJ7#,LJ71 |
57605-60210 |
US $179.09 |
||
|
57606C
|
57606C
57606-90K07 Member Sub-Assy, Rear Floor Cross, No.2[11.1984 - 01.1990] BJ70,71 |
57606-90K07 |
US $214.03 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $1.96 |
||
|
9095001133
|
9095001133
90950-01133 Plug, Hole(For Front Fender Apron) |
90950-01133 |
from US $2.36 |
||
