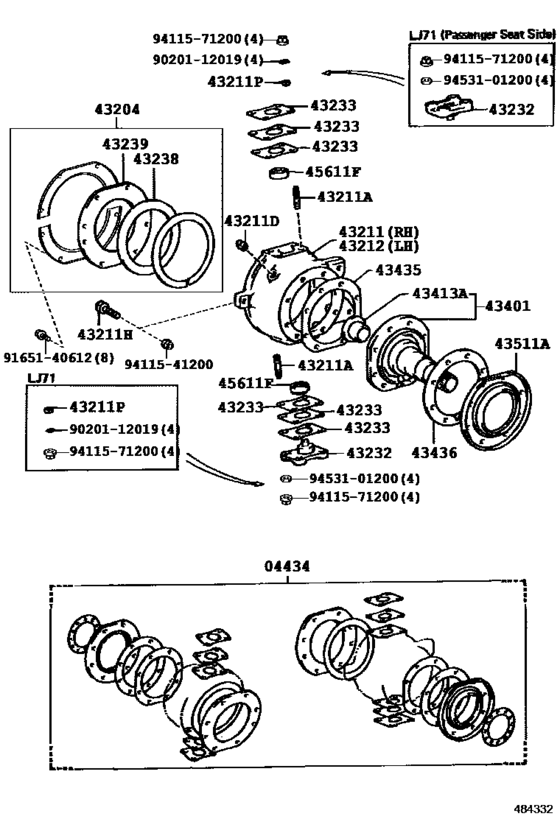

Front Axle Arm & Steering Knuckle ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04434
|
04434
04434-60020
Gasket Kit, Front Axle Overhaul
[11.1984 - 01.1990] BJ7#,LJ71 |
04434-60020 |
— | ||
| replacement | |||||
|
04434
|
04434
04434-60021 Gasket Kit, Front Axle Overhaul[11.1984 - 01.1990] BJ7#,LJ71 |
04434-60021 |
US $181.71 |
||
|
43204
|
43204
43204-60020 Seal Sub-Assy, Steering Knuckle Oil[11.1984 - 01.1990] BJ7#,LJ71 |
43204-60020 |
from US $23.94 |
||
|
43211
|
43211
43211-60050
Knuckle, Steering, Rh
[11.1984 - 01.1990] BJ7# |
43211-60050 |
— | ||
|
43211A
|
43211A
90116-12007
Bolt, Stud (For Steering Set)
[11.1984 - 01.1990] BJ7#,LJ71 |
90116-12007 |
— | ||
| replacement | |||||
|
43211A
|
43211A
90126-12005
Bolt, Stud (For Steering Set)
[11.1984 - 01.1990] BJ7#,LJ71 |
90126-12005 |
— | ||
|
43211D
|
43211D
90345-53020 Plug, W/head Taper Screw (For Winch Gear Case)[11.1984 - 01.1990] BJ7#,LJ71 |
90345-53020 |
from US $4.30 |
||
|
43211H
|
43211H
90106-12022 Bolt, Round Hexagon (For Steering Knuckle Stopper Bolt)[11.1984 - 01.1990] BJ7#,LJ71 |
90106-12022 |
from US $3.53 |
||
|
43211P
|
43211P
42323-60020 Washer, Cone (For Steering Knuckle Arm)[11.1984 - 01.1990] BJ7#,LJ71 |
42323-60020 |
from US $2.68 |
||
|
43212
|
43212
43212-60050
Knuckle, Steering, Lh
[11.1984 - 01.1990] BJ7# |
43212-60050 |
— | ||
|
43232
|
43232
43232-35010 Cap, Steering Knuckle Bearing[11.1984 - 01.1990] BJ7#,LJ71 |
43232-35010 |
from US $53.94 |
||
|
43233
|
43233
43233-60011 Shim, Steering Knuckle Adjust, No.1[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝０．２０,T=0.2 |
43233-60011 |
from US $1.18 |
||
|
43233
|
43233
43234-60011 Shim, Steering Knuckle Adjust, No.1[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝０．５０,T=0.5 |
43234-60011 |
from US $1.71 |
||
|
43233
|
43233
43235-60010 Shim, Steering Knuckle Adjust, No.1[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝１．０,T=1.0 |
43235-60010 |
from US $2.30 |
||
|
43233
|
43233
43236-60010 Shim, Steering Knuckle Adjust, No.1[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝０．１,T=0.1 |
43236-60010 |
from US $1.18 |
||
|
43233
|
43233
43237-60030 Shim, Steering Knuckle Adjust, No.1[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝０．３０,T=0.3 |
43237-60030 |
from US $1.20 |
||
|
43238
|
43238
43238-60010 Seal, Steering Knuckle Oil, Inner[11.1984 - 01.1990] BJ7#,LJ71 |
43238-60010 |
US $8.88 |
||
|
43239
|
43239
43239-60020 Seal, Steering Knuckle Oil, Outer[11.1984 - 01.1990] BJ7#,LJ71 |
43239-60020 |
US $9.61 |
||
|
43401
|
43401
43401-60012
Spindle Sub-Assy, Steering Knuckle
[11.1984 - 01.1990] BJ7#,LJ71 |
43401-60012 |
— | ||
| replacement | |||||
|
43401
|
43401
43401-60060 Spindle Sub-Assy, Steering Knuckle[11.1984 - 01.1990] BJ7#,LJ71 |
43401-60060 |
from US $267.18 |
||
|
43413A
|
43413A
90999-70067 Bush, Solid (For Drive Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
90999-70067 |
from US $19.99 |
||
|
43435
|
43435
43435-60011 Gasket, Knuckle Spindle[11.1984 - 01.1990] BJ7#,LJ71 |
43435-60011 |
from US $1.03 |
||
|
43436
|
43436
43436-60011 Gasket, Brake Drum Oil Deflector[11.1984 - 01.1990] BJ7#,LJ71 |
43436-60011 |
from US $1.16 |
||
|
43511A
|
43511A
90313-93011 Seal, Oil (For Front Axle Hub)[11.1984 - 01.1990] BJ7#,LJ71 |
90313-93011 |
from US $31.92 |
||
|
45611F
|
45611F
90366-17001
Bearing(For Steering Knuckle Arm)
[11.1984 - 01.1990] BJ7#,LJ71 |
90366-17001 |
— | ||
| replacement | |||||
|
45611F
|
45611F
90366-17007 Bearing(For Steering Knuckle Arm)[11.1984 - 01.1990] BJ7#,LJ71 |
90366-17007 |
from US $26.38 |
||
|
9020112019
|
9020112019
90201-12019 WASHER |
90201-12019 |
from US $1.10 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9411571200
|
9411571200
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-71200 |
from US $0.95 |
||
|
9453101200
|
9453101200
94531-01200 WASHER |
94531-01200 |
from US $0.72 |
||
