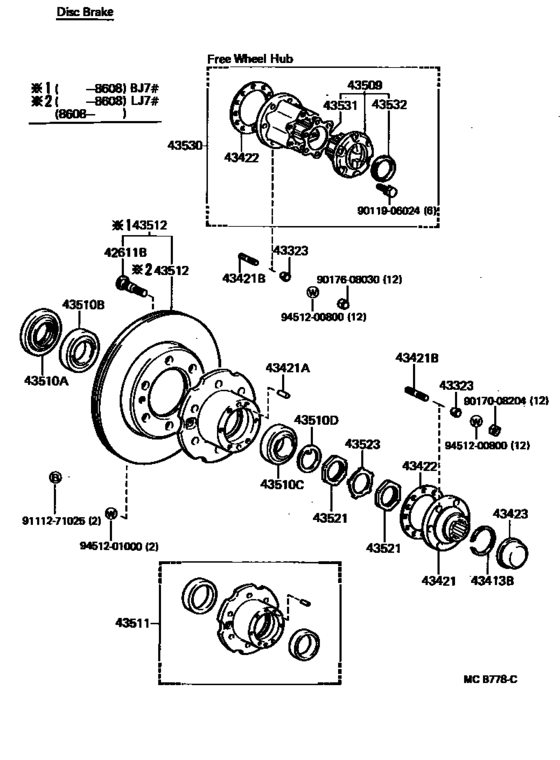

Front Axle Hub ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42611B
|
42611B
90942-02053 Bolt, Hub (For Front Axle)[11.1984 - 01.1990] BJ7#,LJ71 |
90942-02053 |
from US $5.78 |
||
|
43323
|
43323
42323-60010 Washer, Cone (For Axle Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
42323-60010 |
from US $2.91 |
||
|
43413B
|
43413B
90520-31001
Ring, Snap (For Rear Axle Shaft)
[11.1984 - 01.1990] BJ7#,LJ71 |
90520-31001 |
— | ||
| replacement | |||||
|
43413B
|
43413B
90520-31007 Ring, Snap (For Front Drive Shaft Rh)[11.1984 - 01.1990] BJ7#,LJ71 |
90520-31007 |
from US $1.37 |
||
|
43421A
|
43421A
90250-07057 Pin, Straight (For Axle Hub)[11.1984 - 01.1990] BJ7#,LJ71 |
90250-07057 |
from US $1.06 |
||
|
43421B
|
43421B
90116-08325 Bolt, Stud (For Axle Hub)[11.1984 - 01.1990] BJ7#,LJ71 |
90116-08325 |
from US $0.82 |
||
|
43422
|
43422
43422-60020
Gasket, Axle Shaft
[11.1984 - 01.1990] BJ7#,LJ71 |
43422-60020 |
— | ||
| replacement | |||||
|
43422
|
43422
43422-60010 Gasket, Axle Shaft[11.1984 - 01.1990] BJ7#,LJ71 |
43422-60010 |
from US $0.86 |
||
|
43509
|
43509
43509-60015
Cover Sub-Assy, Free Wheel Hub
[11.1984 - 01.1990] BJ7#,LJ71 |
43509-60015 |
— | ||
|
43510A
|
43510A
90311-62001 Seal, Oil[11.1984 - 01.1990] BJ7#,LJ71 |
90311-62001 |
from US $13.44 |
||
|
43510B
|
43510B
90368-49084 Bearing (For Axle Shaft Inner)[11.1984 - 01.1990] BJ7#,LJ71 |
90368-49084 |
from US $52.97 |
||
|
43510C
|
43510C
90368-45087 Bearing (For Axle Shaft Outer)[11.1984 - 01.1990] BJ7#,LJ71 |
90368-45087 |
from US $42.54 |
||
|
43510D
|
43510D
90214-42030 Washer, Claw (For Rear Axle Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
90214-42030 |
from US $2.68 |
||
|
43511
|
43511
43502-60020
Hub Sub-Assy, Front Axle, Rh
[11.1984 - 01.1990] BJ7#,LJ71 |
43502-60020 |
— | ||
| replacement | |||||
|
43511
|
43511
43502-69125
Hub Sub-Assy, Front Axle, Rh
[11.1984 - 01.1990] BJ7#,LJ71 |
43502-69125 |
— | ||
|
43512
|
43512
43512-60040
Disc, Front
[08.1986 - 01.1990] BJ7# |
43512-60040 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-60100 Disc, Front[08.1986 - 01.1990] BJ7# |
43512-60100 |
from US $206.83 |
||
|
43512
|
43512
43512-69016 Disc, Front[11.1984 - 08.1986] BJ7# |
43512-69016 |
US $152.88 |
||
| replacement | |||||
|
43512
|
43512
43512-60100 Disc, Front[11.1984 - 08.1986] BJ7# |
43512-60100 |
from US $206.83 |
||
|
43521
|
43521
43521-60011 Nut, Front Wheel Adjusting[11.1984 - 01.1990] BJ7#,LJ71 |
43521-60011 |
from US $5.30 |
||
|
43523
|
43523
90215-42025 Washer, Front Wheel Adjusting Lock[11.1984 - 01.1990] BJ7#,LJ71 |
90215-42025 |
from US $1.86 |
||
|
43530
|
43530
43530-69045 Hub Assy, Free Wheel[11.1984 - 01.1990] BJ7#,LJ71 |
43530-69045 |
US $362.54 |
||
| replacement | |||||
|
43530
|
43530
43530-69055 Hub Assy, Free Wheel[11.1984 - 01.1990] BJ7#,LJ71 |
43530-69055 |
US $411.84 |
||
|
43531
|
43531
43531-60010 Gasket, Free Wheel Hub(manual free-wheel hub) [11.1984 - 01.1990] BJ7#,LJ71 |
43531-60010 |
from US $1.75 |
||
|
43532
|
43532
43532-60010 Ring, Free Wheel Hub[11.1984 - 01.1990] BJ7#,LJ71 |
43532-60010 |
from US $2.81 |
||
|
9011906024
|
9011906024
90119-06024
BOLTWWASHER
|
90119-06024 |
— | ||
| replacement | |||||
|
9011906024
|
9011906024
91641-80616 BOLTWWASHER |
91641-80616 |
from US $0.80 |
||
|
9017008204
|
9017008204
90170-08204 Nut (For Propeller Shaft) |
90170-08204 |
from US $0.72 |
||
|
9017608030
|
9017608030
90176-08030 NUT |
90176-08030 |
from US $1.29 |
||
|
9111271025
|
9111271025
91112-71025 Bolt(For Strut Bar Setting) |
91112-71025 |
US $2.33 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
