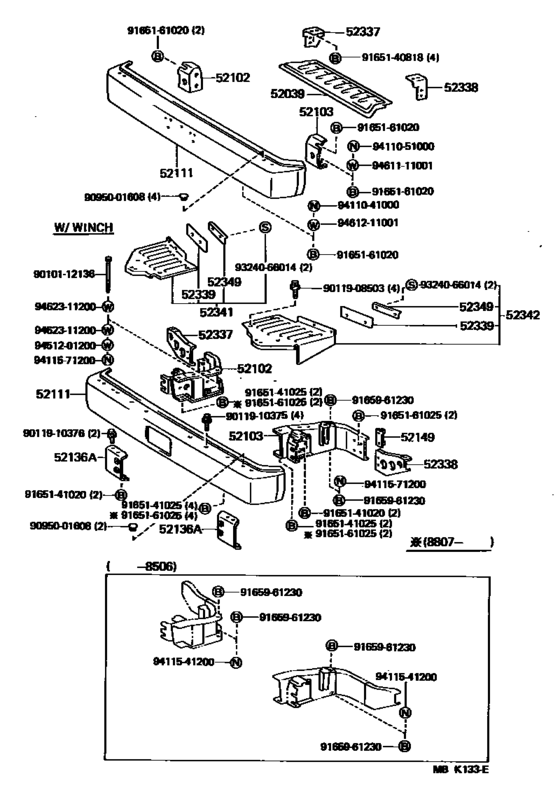

Front Bumper & Bumper Stay ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52102
|
52102
52116-60020 Bracket Sub-Assy, Front Bumper, Rh[11.1984 - 01.1990] BJ7#,LJ71 |
52116-60020 |
US $19.32 |
||
|
52102
|
52102
52130-90K00 Bracket Sub-Assy, Front Bumper, Rh[06.1985 - 01.1990] BJ7# W/WINCH |
52130-90K00 |
US $225.68 |
||
|
52103
|
52103
52117-60010 Bracket Sub-Assy, Front Bumper, Lh[11.1984 - 01.1990] BJ7#,LJ71 |
52117-60010 |
US $19.32 |
||
|
52103
|
52103
52140-60020 Bracket Sub-Assy, Front Bumper, Lh[11.1984 - 01.1990] BJ7# W/WINCH |
52140-60020 |
US $241.70 |
||
|
52111
|
52111
52101-60020
Bumper Assy, Front
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
52101-60020 |
— | ||
| replacement | |||||
|
52111
|
52111
52101-60100 Bar, Front Bumper[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
52101-60100 |
US $642.72 |
||
|
52111
|
52111
52101-60040
Bumper Assy, Front
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/WINCH |
52101-60040 |
— | ||
|
52136A
|
52136A
52131-60050 Retainer, Front Bumper Side, Rh[11.1984 - 01.1990] BJ7#,LJ71 RH |
52131-60050 |
US $57.12 |
||
|
52136A
|
52136A
52132-60030 Retainer, Front Bumper Side, Lh[11.1984 - 01.1990] BJ7#,LJ71 LH |
52132-60030 |
US $57.12 |
||
|
52149
|
52149
52149-60010 Bracket, Front Bumper, Inner[11.1984 - 01.1990] BJ7# |
52149-60010 |
from US $5.47 |
||
|
52337
|
52337
52333-90K00 Bracket, Front Bumper Step Mounting, Rh[11.1984 - 01.1990] BJ7# ｱﾘ(ｳｲﾝﾁ) |
52333-90K00 |
US $80.72 |
||
|
52337
|
52337
52333-90K01 Stay, Front Bumper Step, Rh[08.1986 - 01.1990] BJ7#,LJ71 |
52333-90K01 |
US $21.84 |
||
|
52338
|
52338
52334-90K00 Bracket, Front Bumper Step Mounting, Lh[11.1984 - 01.1990] BJ7# ｱﾘ(ｳｲﾝﾁ) |
52334-90K00 |
US $80.72 |
||
|
52338
|
52338
52334-90K01 Stay, Front Bumper Step, Lh[08.1986 - 01.1990] BJ7#,LJ71 |
52334-90K01 |
US $21.84 |
||
|
52339
|
52339
52339-90K00 Seal, Front Bumper Step[11.1984 - 01.1990] BJ7# |
52339-90K00 |
US $10.13 |
||
|
52341
|
52341
52330-90K00
Step, Front Bumper, Rh
[11.1984 - 01.1990] BJ7# |
52330-90K00 |
— | ||
| replacement | |||||
|
52341
|
52341
52330-90K01
Step, Front Bumper, Rh
[11.1984 - 01.1990] BJ7# |
52330-90K01 |
— | ||
|
52342
|
52342
52340-90K00
Step, Front Bumper, Lh
[11.1984 - 01.1990] BJ7# |
52340-90K00 |
— | ||
| replacement | |||||
|
52342
|
52342
52340-90K01
Step, Front Bumper, Lh
[11.1984 - 01.1990] BJ7# |
52340-90K01 |
— | ||
|
52349
|
52349
52349-90K00
Retainer, Front Bumper Step Seal
[11.1984 - 01.1990] BJ7# |
52349-90K00 |
— | ||
|
9010112136
|
9010112136
90101-12136 BOLT |
90101-12136 |
US $2.33 |
||
|
9011908503
|
9011908503
90119-08503 BOLT |
90119-08503 |
from US $1.84 |
||
|
9011910375
|
9011910375
90119-10375 BOLT |
90119-10375 |
from US $3.58 |
||
|
9011910376
|
9011910376
90119-10376 New Genuine Part |
90119-10376 |
US $3.05 |
||
|
9095001608
|
9095001608
90950-01608 Plug, Hole(For Front Bumper Extension) |
90950-01608 |
from US $2.81 |
||
|
9165140818
|
9165140818
91651-40818 BOLT, W-WASHER |
91651-40818 |
from US $1.16 |
||
|
9165141020
|
9165141020
91651-41020 BOLTWWASHER |
91651-41020 |
from US $1.52 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.48 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.48 |
||
|
9165961230
|
9165961230
91659-61230
New Genuine Part
|
91659-61230 |
— | ||
| replacement | |||||
|
9165961230
|
9165961230
90119-12297 New Genuine Part |
90119-12297 |
US $4.84 |
||
|
9324066014
|
9324066014
93240-66014 BOLT |
93240-66014 |
from US $1.22 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9411571200
|
9411571200
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-71200 |
from US $0.95 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.70 |
||
|
9461111001
|
9461111001
94611-11001 Plate, Rear Seat Back Stopper |
94611-11001 |
US $1.43 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
|
9462311200
|
9462311200
94623-11200
New Genuine Part
|
94623-11200 |
— | ||
