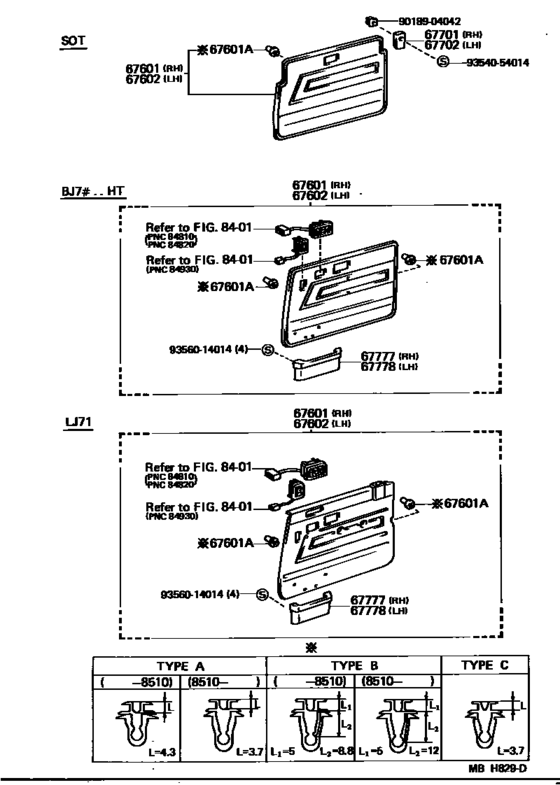

Front Door Panel & Glass ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-90K28-03
Board Sub-Assy, Front Door Trim, Rh
[10.1985 - 08.1986] BJ7#..LX W/POWER WINDOW,GRAY,GRAY |
67610-90K28-03 |
— | ||
|
67601
|
67601
67610-90K28-05
Board Sub-Assy, Front Door Trim, Rh
[10.1985 - 08.1986] BJ7#..LX W/POWER WINDOW,BEIGE,BEIGE |
67610-90K28-05 |
— | ||
|
67601
|
67601
67610-90K37-03
Board Sub-Assy, Front Door Trim, Rh
[10.1985 - 08.1986] BJ7#..LX GRAY,GRAY |
67610-90K37-03 |
— | ||
|
67601
|
67601
67610-90K37-05
Board Sub-Assy, Front Door Trim, Rh
[10.1985 - 08.1986] BJ7#..LX BEIGE,BEIGE |
67610-90K37-05 |
— | ||
|
67601
|
67601
67610-90K44-03
Board Sub-Assy, Front Door Trim, Rh
[08.1986 - 08.1987] BJ7#..LX W/POWER WINDOW,GRAY,GRAY |
67610-90K44-03 |
— | ||
|
67601
|
67601
67610-90K44-05
Board Sub-Assy, Front Door Trim, Rh
[08.1986 - 08.1987] BJ7#..LX W/POWER WINDOW,BEIGE,BEIGE |
67610-90K44-05 |
— | ||
|
67601
|
67601
67610-90K45-03
Board Sub-Assy, Front Door Trim, Rh
[08.1986 - 08.1987] BJ7#..LX GRAY,GRAY |
67610-90K45-03 |
— | ||
|
67601
|
67601
67610-90K45-05
Board Sub-Assy, Front Door Trim, Rh
[08.1986 - 08.1987] BJ7#..LX BEIGE,BEIGE |
67610-90K45-05 |
— | ||
|
67601
|
67601
67610-90K59-03
Board Sub-Assy, Front Door Trim, Rh
[08.1987 - 01.1990] BJ7#..LX W/POWER WINDOW,GRAY,GRAY |
67610-90K59-03 |
— | ||
|
67601
|
67601
67610-90K59-05
Board Sub-Assy, Front Door Trim, Rh
[08.1987 - 01.1990] BJ7#..LX W/POWER WINDOW,BEIGE,BEIGE |
67610-90K59-05 |
— | ||
|
67601
|
67601
67610-90K60-03
Board Sub-Assy, Front Door Trim, Rh
[08.1987 - 01.1990] BJ7#..LX GRAY,GRAY |
67610-90K60-03 |
— | ||
|
67601
|
67601
67610-90K60-05
Board Sub-Assy, Front Door Trim, Rh
[08.1987 - 01.1990] BJ7#..LX BEIGE,BEIGE |
67610-90K60-05 |
— | ||
|
67601A
|
67601A
67771-22010 Retainer, Door Trim[10.1985 - 01.1990] BJ7#..LX TYPE B |
67771-22010 |
from US $1.10 |
||
|
67601A
|
67601A
67771-30060 Retainer (For Quarter Inside Trim Board)[10.1985 - 01.1990] BJ7#..LX TYPE A |
67771-30060 |
from US $1.82 |
||
|
67601A
|
67601A
67771-90K00
Retainer (For Quarter Inside Trim Board)
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 TYPE C |
67771-90K00 |
— | ||
|
67602
|
67602
67620-90K31-03
Board Sub-Assy, Front Door Trim, Lh
[10.1985 - 08.1986] BJ7#..LX W/POWER WINDOW,GRAY,GRAY |
67620-90K31-03 |
— | ||
|
67602
|
67602
67620-90K31-05
Board Sub-Assy, Front Door Trim, Lh
[10.1985 - 08.1986] BJ7#..LX W/POWER WINDOW,BEIGE,BEIGE |
67620-90K31-05 |
— | ||
|
67602
|
67602
67620-90K34-03
Board Sub-Assy, Front Door Trim, Lh
[10.1985 - 08.1986] BJ7#..LX GRAY,GRAY |
67620-90K34-03 |
— | ||
|
67602
|
67602
67620-90K34-05
Board Sub-Assy, Front Door Trim, Lh
[10.1985 - 08.1986] BJ7#..LX BEIGE,BEIGE |
67620-90K34-05 |
— | ||
|
67602
|
67602
67620-90K42-03
Board Sub-Assy, Front Door Trim, Lh
[08.1986 - 08.1987] BJ7#..LX W/POWER WINDOW,GRAY,GRAY |
67620-90K42-03 |
— | ||
|
67602
|
67602
67620-90K42-05
Board Sub-Assy, Front Door Trim, Lh
[08.1986 - 08.1987] BJ7#..LX W/POWER WINDOW,BEIGE,BEIGE |
67620-90K42-05 |
— | ||
|
67602
|
67602
67620-90K43-03
Board Sub-Assy, Front Door Trim, Lh
[08.1986 - 08.1987] BJ7#..LX GRAY,GRAY |
67620-90K43-03 |
— | ||
|
67602
|
67602
67620-90K43-05
Board Sub-Assy, Front Door Trim, Lh
[08.1986 - 08.1987] BJ7#..LX BEIGE,BEIGE |
67620-90K43-05 |
— | ||
|
67602
|
67602
67620-90K56-03
Board Sub-Assy, Front Door Trim, Lh
[08.1987 - 01.1990] BJ7#..LX W/POWER WINDOW,GRAY,GRAY |
67620-90K56-03 |
— | ||
|
67602
|
67602
67620-90K56-05
Board Sub-Assy, Front Door Trim, Lh
[08.1987 - 01.1990] BJ7#..LX W/POWER WINDOW,BEIGE,BEIGE |
67620-90K56-05 |
— | ||
|
67602
|
67602
67620-90K57-03
Board Sub-Assy, Front Door Trim, Lh
[08.1987 - 01.1990] BJ7#..LX GRAY,GRAY |
67620-90K57-03 |
— | ||
|
67602
|
67602
67620-90K57-05
Board Sub-Assy, Front Door Trim, Lh
[08.1987 - 01.1990] BJ7#..LX BEIGE,BEIGE |
67620-90K57-05 |
— | ||
|
67777
|
67777
67777-90K00-03
Pocket, Front Door Trim, Rh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 GRAY,GRAY |
67777-90K00-03 |
— | ||
| replacement | |||||
|
67777
|
67777
67777-90K00-B0
Pocket, Front Door Trim, Rh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 GRAY,GRAY |
67777-90K00-B0 |
— | ||
|
67777
|
67777
67777-90K00-05
Pocket, Front Door Trim, Rh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 BROWN,BROWN |
67777-90K00-05 |
— | ||
|
67778
|
67778
67777-90K00-03
Pocket, Front Door Trim, Rh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 GRAY,GRAY |
67777-90K00-03 |
— | ||
| replacement | |||||
|
67778
|
67778
67777-90K00-B0
Pocket, Front Door Trim, Rh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 GRAY,GRAY |
67777-90K00-B0 |
— | ||
|
67778
|
67778
67777-90K00-05
Pocket, Front Door Trim, Rh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 BROWN,BROWN |
67777-90K00-05 |
— | ||
|
9018904042
|
9018904042
90189-04042 CLIP |
90189-04042 |
US $1.97 |
||
|
9354054014
|
9354054014
93540-54014 SCREW |
93540-54014 |
from US $0.95 |
||
|
9356014014
|
9356014014
93560-14014 SCREW |
93560-14014 |
US $1.08 |
||
