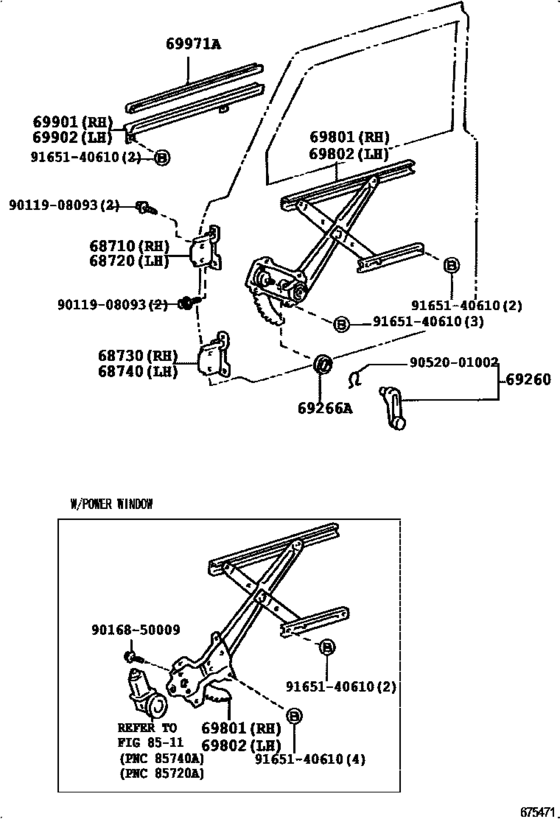

Front Door Window Regulator & Hinge ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-14030 Hinge Assy, Front Door, Upper Rh[11.1984 - 01.1990] BJ7#,LJ71 |
68710-14030 |
US $42.81 |
||
| replacement | |||||
|
68710
|
68710
68710-60040 Hinge Assy, Front Door, Upper Rh[11.1984 - 01.1990] BJ7#,LJ71 |
68710-60040 |
from US $27.63 |
||
|
68720
|
68720
68720-14030
Hinge Assy, Front Door, Upper Lh
[11.1984 - 01.1990] BJ7#,LJ71 |
68720-14030 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-60040 Hinge Assy, Front Door, Upper Lh[11.1984 - 01.1990] BJ7#,LJ71 |
68720-60040 |
from US $27.68 |
||
|
68730
|
68730
68730-24010
Hinge Assy, Front Door, Lower Rh
[11.1984 - 01.1990] BJ7#,LJ71 |
68730-24010 |
— | ||
| replacement | |||||
|
68730
|
68730
68730-60020 Hinge Assy, Front Door, Lower Rh[11.1984 - 01.1990] BJ7#,LJ71 |
68730-60020 |
from US $30.74 |
||
|
68740
|
68740
68740-24010
Hinge Assy, Front Door, Lower Lh
[11.1984 - 01.1990] BJ7#,LJ71 |
68740-24010 |
— | ||
| replacement | |||||
|
68740
|
68740
68740-60020 Hinge Assy, Front Door, Lower Lh[11.1984 - 01.1990] BJ7#,LJ71 |
68740-60020 |
from US $30.95 |
||
|
69260
|
69260
69260-10040-10
Handle Assy, Front Door Window Regulator
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD BROWN,SEPIA BROWN |
69260-10040-10 |
— | ||
|
69260
|
69260
69260-10040-33
Handle Assy, Front Door Window Regulator
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD GRAY,SHADOW GRAY |
69260-10040-33 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-10040-P0 Handle Assy, Front Door Window Regulator[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD GRAY,SHADOW GRAY |
69260-10040-P0 |
from US $14.82 |
||
|
69266A
|
69266A
69266-22010
Escutcheon, Door Regulator Handle(For Front Door)
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD |
69266-22010 |
— | ||
| replacement | |||||
|
69266A
|
69266A
69266-22010-08 Escutcheon, Window Regulator Handle (CLEAR)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD |
69266-22010-08 |
from US $0.99 |
||
|
69801
|
69801
69801-90K00
Regulator Sub-Assy, Front Door Window, Rh
[11.1984 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 W/*PW |
69801-90K00 |
— | ||
| replacement | |||||
|
69801
|
69801
69801-60100 Regulator Sub-Assy, Front Door Window, Rh[11.1984 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 W/*PW |
69801-60100 |
from US $77.11 |
||
|
69801
|
69801
69810-90K00 Regulator Sub-Assy, Front Door Window, Rh[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD |
69810-90K00 |
US $89.11 |
||
|
69802
|
69802
69802-90K00
Regulator Sub-Assy, Front Door Window, Lh
[11.1984 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 W/*PW |
69802-90K00 |
— | ||
| replacement | |||||
|
69802
|
69802
69802-60100 Regulator Sub-Assy, Front Door Window, Lh[11.1984 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 W/*PW |
69802-60100 |
from US $77.11 |
||
|
69802
|
69802
69820-90K00 Regulator Sub-Assy, Front Door Window, Lh[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,STD |
69820-90K00 |
US $89.11 |
||
|
69901
|
69901
69901-90K00 Channel Sub-Assy, Front Door Glass, Rh[11.1984 - 01.1990] BJ7#,LJ71 |
69901-90K00 |
from US $17.30 |
||
|
69902
|
69902
69902-90K01 Channel Sub-Assy, Front Door Glass, Lh[11.1984 - 01.1990] BJ7#,LJ71 |
69902-90K01 |
from US $14.50 |
||
|
69971A
|
69971A
69971-90K00 Filler, Front Door Glass Channel[11.1984 - 01.1990] BJ7#,LJ71 |
69971-90K00 |
from US $8.21 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.20 |
||
|
9016850009
|
9016850009
90168-50009 New Genuine Part |
90168-50009 |
US $1.89 |
||
|
9052001002
|
9052001002
90520-01002
Ring, Shaft Snap(For Vent Window Control)
|
90520-01002 |
— | ||
| replacement | |||||
|
9052001002
|
9052001002
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle) |
90520-01274 |
from US $0.91 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
