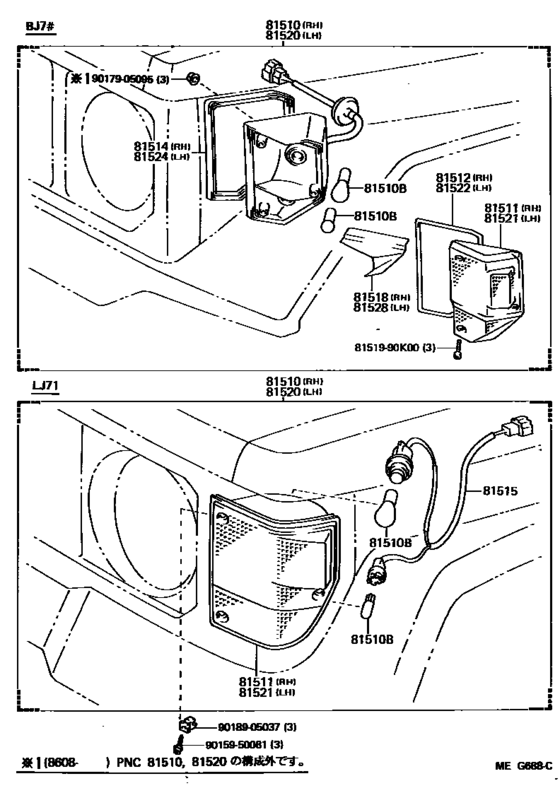

Front Turn Signal Lamp ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81510
|
81510
81510-69265
Lamp Assy, Front Turn Signal, Rh
[11.1984 - 08.1986] BJ7# |
81510-69265 |
— | ||
| replacement | |||||
|
81510
|
81510
81510-90K02
Lamp Assy, Front Turn Signal, Rh
[11.1984 - 08.1986] BJ7# |
81510-90K02 |
— | ||
|
81510
|
81510
81510-90K02
Lamp Assy, Front Turn Signal, Rh
[08.1986 - 01.1990] BJ7# |
81510-90K02 |
— | ||
|
81510B
|
81510B
90981-16016 Bulb[11.1984 - 01.1990] BJ7# ２４Ｖ ５Ｗ,24V 5W(PARKING & CLEARANCE) |
90981-16016 |
from US $3.23 |
||
|
81510B
|
81510B
99134-11250 Bulb, Fog Lamp[11.1984 - 01.1990] BJ7# ２４Ｖ ２５Ｗ,24V 25W(TURN) |
99134-11250 |
from US $4.12 |
||
|
81511
|
81511
81511-90K02
Lens, Front Turn Signal Lamp, Rh
[11.1984 - 01.1990] BJ7# |
81511-90K02 |
— | ||
| replacement | |||||
|
81511
|
81511
81511-60452 Lens, Front Turn Signal Lamp, Rh[11.1984 - 01.1990] BJ7# |
81511-60452 |
from US $23.88 |
||
|
81512
|
81512
81512-90K01 Gasket, Front Turn Signal Lamp Lens[11.1984 - 01.1990] BJ7# |
81512-90K01 |
US $9.32 |
||
|
81514
|
81514
81514-90K01
Gasket, Front Turn Signal Lamp Body, Rh
[11.1984 - 01.1990] BJ7# |
81514-90K01 |
— | ||
|
81518
|
81518
81517-90K01
Shade, Front Turn Signal Lamp (Rh)
[11.1984 - 01.1990] BJ7# |
81517-90K01 |
— | ||
|
81520
|
81520
81520-69265
Lamp Assy, Front Turn Signal, Lh
[11.1984 - 08.1986] BJ7# |
81520-69265 |
— | ||
| replacement | |||||
|
81520
|
81520
81520-90K02
Lamp Assy, Front Turn Signal, Lh
[11.1984 - 08.1986] BJ7# |
81520-90K02 |
— | ||
|
81520
|
81520
81520-90K02
Lamp Assy, Front Turn Signal, Lh
[08.1986 - 01.1990] BJ7# |
81520-90K02 |
— | ||
|
81521
|
81521
81521-90K02
Lens, Front Turn Signal Lamp, Lh
[11.1984 - 01.1990] BJ7# |
81521-90K02 |
— | ||
| replacement | |||||
|
81521
|
81521
81521-60322 Lens, Front Turn Signal Lamp, Lh[11.1984 - 01.1990] BJ7# |
81521-60322 |
from US $26.05 |
||
|
81522
|
81522
81512-90K01 Gasket, Front Turn Signal Lamp Lens[11.1984 - 01.1990] BJ7# |
81512-90K01 |
US $9.32 |
||
|
81524
|
81524
81524-90K01
Gasket, Front Turn Signal Lamp Body, Lh
[11.1984 - 01.1990] BJ7# |
81524-90K01 |
— | ||
|
81528
|
81528
81527-90K01 Shade, Front Turn Signal Lamp (Lh)[11.1984 - 01.1990] BJ7# |
81527-90K01 |
US $3.89 |
||
|
8151990K00
|
8151990K00
81519-90K00
Bolt
|
81519-90K00 |
— | ||
|
9015950081
|
9015950081
90159-50081 SCREW |
90159-50081 |
from US $1.16 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9018905037
|
9018905037
90189-05037 GROMMET |
90189-05037 |
US $2.33 |
||
