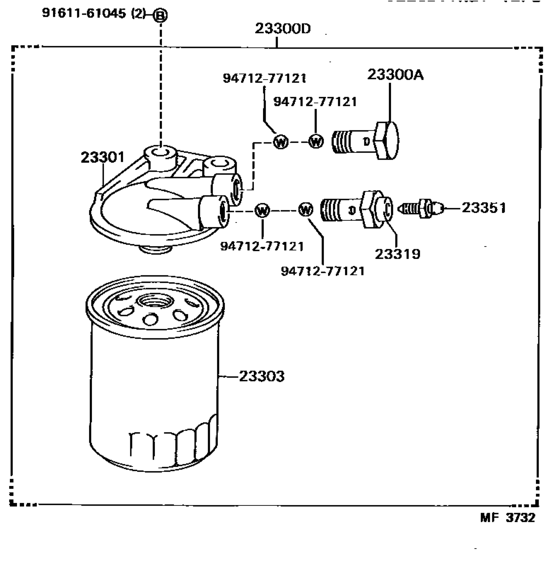

Fuel Filter ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300A
|
23300A
90099-18010 Screw, Fuel Pipe Follow[12.1985 - 01.1990] 13BT..BJ71,74 |
90099-18010 |
US $3.32 |
||
|
23300A
|
23300A
90401-14060
Union, Nipple(For Fuel Filter Inlet)
[10.1985 - 12.1985] 13BT..BJ71,74 |
90401-14060 |
— | ||
| replacement | |||||
|
23300A
|
23300A
90099-18010 Screw, Fuel Pipe Follow[10.1985 - 12.1985] 13BT..BJ71,74 |
90099-18010 |
US $3.32 |
||
|
23300D
|
23300D
23300-56080 Filter Assy, Fuel(For Diesel)[10.1985 - 01.1990] 13BT..BJ71,74 |
23300-56080 |
US $133.95 |
||
|
23301
|
23301
23311-56070 Body Sub-Assy, Fuel Filter[10.1985 - 01.1990] 13BT..BJ71,74 |
23311-56070 |
US $50.09 |
||
|
23303
|
23303
23303-54071
Element Sub-Assy, Fuel Filter
[10.1985 - 01.1990] 13BT..BJ71,74 |
23303-54071 |
— | ||
| replacement | |||||
|
23303
|
23303
23303-54072 Element Sub-Assy, Fuel Filter[10.1985 - 01.1990] 13BT..BJ71,74 |
23303-54072 |
from US $53.18 |
||
|
23319
|
23319
23319-48010
Union, Nipple(For Fuel Filter Inlet)
[10.1985 - 01.1990] 13BT..BJ71,74 |
23319-48010 |
— | ||
|
23351
|
23351
23351-54010 Plug, Air Vent[10.1985 - 01.1990] 13BT..BJ71,74 SEDIMENTER |
23351-54010 |
US $3.49 |
||
|
23351
|
23351
47547-12030 Plug, Air Vent[10.1985 - 01.1990] 13BT..BJ71,74 FILTER |
47547-12030 |
from US $4.60 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.12 |
||
|
9471277121
|
9471277121
94712-77121 Gasket, Nipple Union(For Fuel) |
94712-77121 |
from US $1.12 |
||
