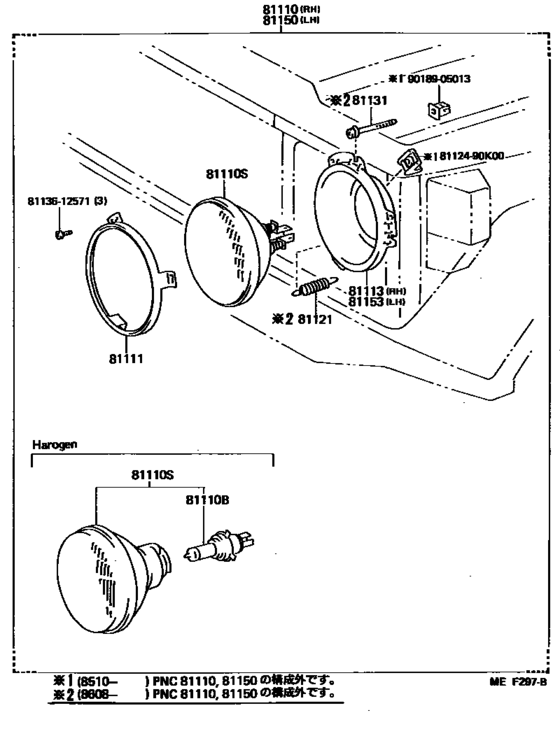

Headlamp ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-90K28 Headlamp Assy, Rh[10.1985 - 08.1986] BJ7# |
81110-90K28 |
US $84.45 |
||
| replacement | |||||
|
81110
|
81110
81110-90K31 Headlamp Assy, Rh[10.1985 - 08.1986] BJ7# |
81110-90K31 |
US $82.99 |
||
|
81110
|
81110
81110-90K30
Headlamp Assy, Rh
[10.1985 - 01.1990] BJ7# HALOGEN |
81110-90K30 |
— | ||
|
81110B
|
81110B
90981-17011
Bulb(For Headlamp, No.1)
[11.1984 - 01.1990] BJ7# ２４Ｖ ７５／７０Ｗ，＊ＨＡＬ ＊ＷＨ,24V 75/70W HALOGEN |
90981-17011 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-17019 Bulb(For Headlamp, No.1)[11.1984 - 01.1990] BJ7# ２４Ｖ ７５／７０Ｗ，＊ＨＡＬ ＊ＷＨ,24V 75/70W HALOGEN |
90981-17019 |
from US $55.44 |
||
|
81110S
|
81110S
90981-06014
Sealed Beam Unit, No.1
[10.1985 - 08.1986] BJ7# ２４Ｖ ７５／５５Ｗ，＊ＷＢ,24V 75/55W |
90981-06014 |
— | ||
| replacements | |||||
|
81110S
|
81110S
90981-06H11 New Genuine Part[10.1985 - 08.1986] BJ7# ２４Ｖ ７５／５５Ｗ，＊ＷＢ,24V 75/55W |
90981-06H11 |
US $87.12 |
||
|
81110S
|
81110S
90981-06H12
New Genuine Part
[10.1985 - 08.1986] BJ7# ２４Ｖ ７５／５５Ｗ，＊ＷＢ,24V 75/55W |
90981-06H12 |
— | ||
|
81110S
|
81110S
90981-06015 Sealed Beam Unit, No.1[10.1985 - 01.1990] BJ7# ２４Ｖ ７５／７０Ｗ，＊ＨＷＳ,24V 75/70W,HALOGEN |
90981-06015 |
US $189.28 |
||
|
81111
|
81111
81111-22150 Ring, Sealed Beam Retaining[11.1984 - 01.1990] BJ7#,LJ71 |
81111-22150 |
from US $12.22 |
||
|
81113
|
81113
81113-90K00 Ring, Sealed Beam Mounting, No.1 Rh[11.1984 - 01.1990] BJ7#,LJ71 |
81113-90K00 |
from US $14.34 |
||
|
81121
|
81121
81121-62010 Spring, Headlamp Tension[11.1984 - 01.1990] BJ7#,LJ71 |
81121-62010 |
from US $1.88 |
||
|
81131
|
81131
81131-28050 Screw, Headlamp Adjusting[11.1984 - 01.1990] BJ7#,LJ71 |
81131-28050 |
from US $3.02 |
||
|
81150
|
81150
81150-90K28 Headlamp Assy, Lh[10.1985 - 08.1986] BJ7# |
81150-90K28 |
US $84.45 |
||
| replacements | |||||
|
81150
|
81150
90981-06H11 New Genuine Part[10.1985 - 08.1986] BJ7# |
90981-06H11 |
US $87.12 |
||
|
81150
|
81150
81170-60760
Headlamp Assy, Lh
[10.1985 - 08.1986] BJ7# |
81170-60760 |
— | ||
|
81150
|
81150
90981-06H12
New Genuine Part
[10.1985 - 08.1986] BJ7# |
90981-06H12 |
— | ||
|
81150
|
81150
81150-90K30
Headlamp Assy, Lh
[10.1985 - 01.1990] BJ7# HALOGEN |
81150-90K30 |
— | ||
|
81153
|
81153
81153-90K00 Ring, Sealed Beam Mounting, No.1 Lh[11.1984 - 01.1990] BJ7#,LJ71 |
81153-90K00 |
from US $14.34 |
||
|
8112490K00
|
8112490K00
81124-90K00 Plate, Headlamp |
81124-90K00 |
from US $2 |
||
|
8113612571
|
8113612571
81136-12571 Screw |
81136-12571 |
from US $2.14 |
||
|
9018905013
|
9018905013
90189-05013 Grommet |
90189-05013 |
from US $0.97 |
||
