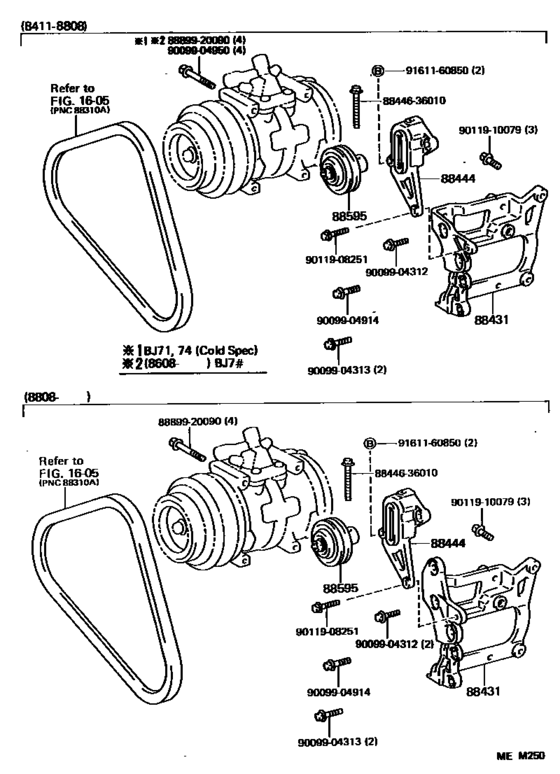

Heating & Air Conditioning - Compressor ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88431
|
88431
88431-36190
Bracket, Compressor Mounting, No.1
[11.1984 - 08.1988] BJ7# |
88431-36190 |
— | ||
|
88444
|
88444
88444-36110
Bracket, Idle Pulley
[11.1984 - 01.1990] BJ7# |
88444-36110 |
— | ||
|
88595
|
88595
88440-12160 Pulley Assy, Power Steering Idle[11.1984 - 01.1990] BJ7# |
88440-12160 |
US $88.56 |
||
|
8844636010
|
8844636010
88446-36010
Bolt, Idle Pulley
|
88446-36010 |
— | ||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009904312
|
9009904312
90099-04312
New Genuine Part
|
90099-04312 |
— | ||
|
9009904313
|
9009904313
90099-04313 BOLT |
90099-04313 |
US $1.98 |
||
|
9009904914
|
9009904914
90099-04914
New Genuine Part
|
90099-04914 |
— | ||
|
9009904950
|
9009904950
90099-04950 BOLT |
90099-04950 |
from US $1.89 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
from US $1.20 |
||
|
9011910079
|
9011910079
90119-10079 Bolt(For Front Suspension Lower Arm No.1 Rh) |
90119-10079 |
US $4.30 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
