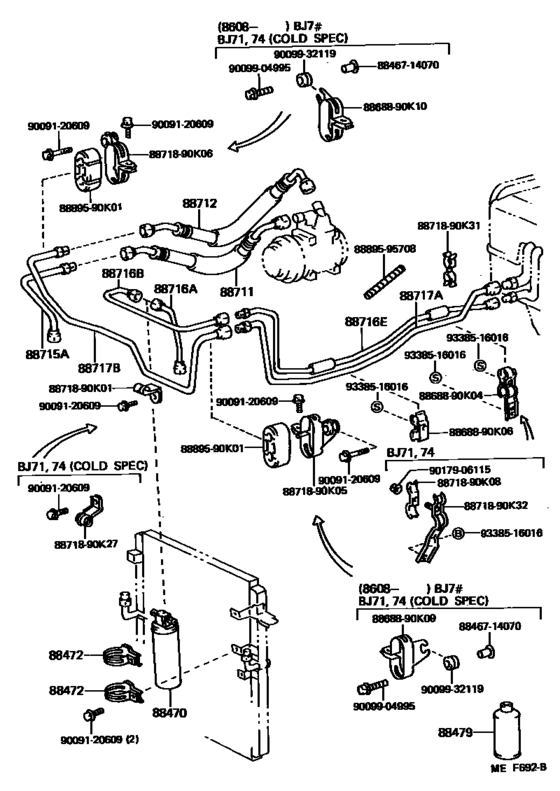

Heating & Air Conditioning - Cooler Piping ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88470
|
88470
88470-12050 Receiver & Dryer Assy, Cooler[11.1984 - 08.1987] BJ7# |
88470-12050 |
US $91.73 |
||
| replacement | |||||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[11.1984 - 08.1987] BJ7# |
88470-14010 |
— | ||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[08.1987 - 01.1990] BJ7# |
88470-14010 |
— | ||
|
88472
|
88472
88472-22090
Bracket, Receiver Tank, No.1
[11.1984 - 01.1990] BJ7#,LJ71 |
88472-22090 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[11.1984 - 01.1990] BJ7#,LJ71 ４００Ｇ |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[11.1984 - 01.1990] BJ7#,LJ71 ４００Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[11.1984 - 01.1990] BJ7#,LJ71 ４００Ｇ |
90986-02005 |
— | ||
|
88711
|
88711
88711-90K01
Hose, Cooler Refrigerant Discharge, No.1
[11.1984 - 01.1990] BJ7# |
88711-90K01 |
— | ||
|
88712
|
88712
88712-90K02
Hose, Cooler Refrigerant Suction, No.1
[11.1984 - 08.1988] BJ7# |
88712-90K02 |
— | ||
| replacement | |||||
|
88712
|
88712
88712-90K17
Hose, Cooler Refrigerant Suction, No.1
[11.1984 - 08.1988] BJ7# |
88712-90K17 |
— | ||
|
88715A
|
88715A
88715-90K00 Pipe, Cooler Refrigerant Discharge, A[11.1984 - 01.1990] BJ7# |
88715-90K00 |
US $50.23 |
||
|
88716A
|
88716A
88716-90K02
Pipe, Cooler Refrigerant Liquid, A
[11.1984 - 01.1990] BJ7# |
88716-90K02 |
— | ||
|
88716A
|
88716A
88716-90K30 Pipe, Cooler Refrigerant Liquid, A[10.1985 - 01.1990] BJ71,74 COLD SPEC |
88716-90K30 |
US $32.61 |
||
|
88716B
|
88716B
88716-90K12 Pipe, Cooler Refrigerant Liquid, B[11.1984 - 01.1990] BJ7# |
88716-90K12 |
US $41.64 |
||
|
88716B
|
88716B
88716-90K29
Pipe, Cooler Refrigerant Liquid, B
[10.1985 - 01.1990] BJ71,74 COLD SPEC |
88716-90K29 |
— | ||
|
88716E
|
88716E
88716-90K13
Pipe, Cooler Refrigerant Liquid, E
[11.1984 - 01.1990] BJ7# |
88716-90K13 |
— | ||
|
88717A
|
88717A
88717-90K01 Pipe, Cooler Refrigerant Suction, A[11.1984 - 01.1990] BJ7# |
88717-90K01 |
US $173.26 |
||
|
88717B
|
88717B
88717-90K00 Pipe, Cooler Refrigerant Suction, B[11.1984 - 01.1990] BJ7# |
88717-90K00 |
US $182 |
||
|
88717B
|
88717B
88717-90K16 Pipe, Cooler Refrigerant Suction, B[10.1985 - 01.1990] BJ71,74 COLD SPEC |
88717-90K16 |
US $187.82 |
||
|
8868890K04
|
8868890K04
88688-90K04
Bracket, Cooler Diaphragm
|
88688-90K04 |
— | ||
|
8868890K06
|
8868890K06
88688-90K06
Bracket, Cooler Diaphragm
|
88688-90K06 |
— | ||
|
8868890K09
|
8868890K09
88688-90K09
Pipe, Cooler Refrigerant Suction, No.2
|
88688-90K09 |
— | ||
| replacement | |||||
|
8868890K09
|
8868890K09
88718-90K05
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K05 |
— | ||
|
8868890K10
|
8868890K10
88688-90K10
Pipe, Cooler Refrigerant Suction, No.2
|
88688-90K10 |
— | ||
| replacement | |||||
|
8868890K10
|
8868890K10
88718-90K06
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K06 |
— | ||
|
8871890K01
|
8871890K01
88718-90K01
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K01 |
— | ||
|
8871890K05
|
8871890K05
88718-90K05
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K05 |
— | ||
|
8871890K06
|
8871890K06
88718-90K06
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K06 |
— | ||
|
8871890K08
|
8871890K08
88718-90K08
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K08 |
— | ||
|
8871890K27
|
8871890K27
88718-90K27
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K27 |
— | ||
|
8871890K31
|
8871890K31
88718-90K31
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K31 |
— | ||
|
8871890K32
|
8871890K32
88718-90K32
Pipe, Cooler Refrigerant Suction, No.2
|
88718-90K32 |
— | ||
|
8889590K01
|
8889590K01
88895-90K01
Holder, Fuse
|
88895-90K01 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
8889595708
|
8889595708
88895-95708
Insulator, Hose (For Idle Up Device)
|
88895-95708 |
— | ||
|
9009120609
|
9009120609
90091-20609 BOLT |
90091-20609 |
US $0.41 |
||
|
9009904995
|
9009904995
90099-04995
New Genuine Part
|
90099-04995 |
— | ||
|
9009932119
|
9009932119
90099-32119
New Genuine Part
|
90099-32119 |
— | ||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9338516016
|
9338516016
93385-16016 New Genuine Part |
93385-16016 |
US $1.43 |
||
