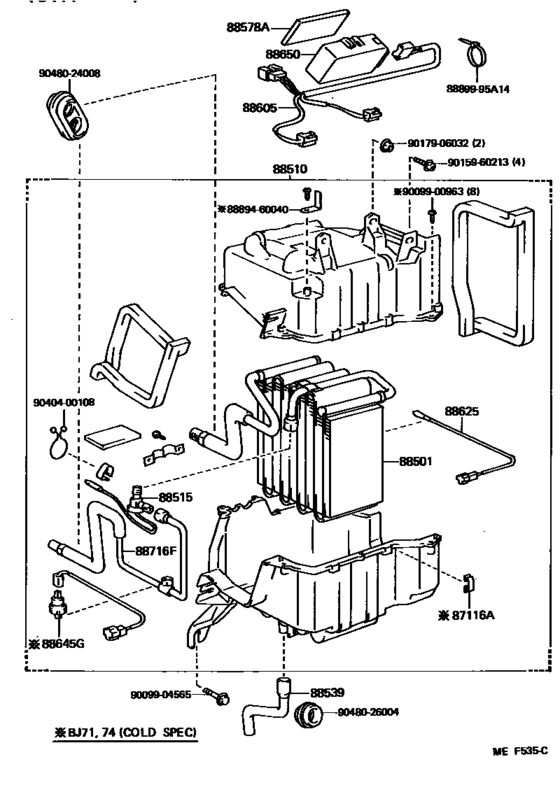

Heating & Air Conditioning - Cooler Unit ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-14010
Spring, Heater Case Fastening
[10.1985 - 01.1990] BJ71,74 COLD SPEC |
87116-14010 |
— | ||
|
88501
|
88501
88501-90K00
Evaporator Sub-Assy, Cooler, No.1
[11.1984 - 03.1986] BJ7#,LJ71 |
88501-90K00 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-90K02
Evaporator Sub-Assy, Cooler, No.1
[11.1984 - 03.1986] BJ7#,LJ71 |
88501-90K02 |
— | ||
|
88501
|
88501
88501-90K02
Evaporator Sub-Assy, Cooler, No.1
[03.1986 - 01.1990] BJ7#,LJ71 |
88501-90K02 |
— | ||
|
88510
|
88510
88510-90K00
Unit Assy, Cooler
[11.1984 - 01.1990] BJ7#,LJ71 |
88510-90K00 |
— | ||
|
88510
|
88510
88510-90K02
Unit Assy, Cooler
[10.1985 - 01.1990] BJ71,74 COLD SPEC |
88510-90K02 |
— | ||
|
88515
|
88515
88515-87004
Valve, Cooler Expansion
[11.1984 - 01.1990] BJ7#,LJ71 |
88515-87004 |
— | ||
|
88539
|
88539
88539-90K00
Hose, Cooler Unit Drain, No.1
[11.1984 - 01.1990] BJ7#,LJ71 |
88539-90K00 |
— | ||
|
88578A
|
88578A
88578-95400
Packing, Cooler Stabilizer Amplifier
[11.1984 - 01.1990] BJ7#,LJ71 |
88578-95400 |
— | ||
|
88605
|
88605
88605-90K02
Harness Sub-Assy, Cooler Wiring, No.1
[11.1984 - 01.1990] BJ7#,LJ71 |
88605-90K02 |
— | ||
|
88625
|
88625
88625-20060
Thermistor, Cooler, No.1
[11.1984 - 01.1990] BJ7#,LJ71 |
88625-20060 |
— | ||
| replacement | |||||
|
88625
|
88625
88625-87001
Thermistor, Cooler, No.1
[11.1984 - 01.1990] BJ7#,LJ71 |
88625-87001 |
— | ||
|
88645G
|
88645G
88645-10020
Switch, Pressure
[10.1985 - 01.1990] BJ71,74 COLD SPEC |
88645-10020 |
— | ||
|
88645G
|
88645G
88645-12020 Switch, Pressure[11.1984 - 01.1990] BJ7#,LJ71 |
88645-12020 |
US $27.61 |
||
|
88650
|
88650
88650-90K01
Amplifier Assy, Cooler Stabilizer
[11.1984 - 01.1990] BJ7# |
88650-90K01 |
— | ||
|
88716F
|
88716F
88716-90K00 Pipe, Cooler Refrigerant Liquid, F[11.1984 - 01.1990] BJ7#,LJ71 |
88716-90K00 |
US $77.17 |
||
|
8889995A14
|
8889995A14
88899-95A14
Cover, Evaporator
|
88899-95A14 |
— | ||
|
8889460040
|
8889460040
88894-60040
New Genuine Part
|
88894-60040 |
— | ||
|
9009900963
|
9009900963
90099-00963
New Genuine Part
|
90099-00963 |
— | ||
|
9009904565
|
9009904565
90099-04565
New Genuine Part
|
90099-04565 |
— | ||
|
9015960213
|
9015960213
90159-60213 New Genuine Part |
90159-60213 |
US $1.43 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.68 |
||
|
9040400108
|
9040400108
90404-00108
New Genuine Part
|
90404-00108 |
— | ||
|
9048024008
|
9048024008
90480-24008
Grommet (For Cooler Unit)
|
90480-24008 |
— | ||
| replacement | |||||
|
9048024008
|
9048024008
90099-32137 Grommet (For Cooler Unit) |
90099-32137 |
US $4.54 |
||
|
9048026004
|
9048026004
90480-26004 Grommet, Heater Hose |
90480-26004 |
US $1.12 |
||
