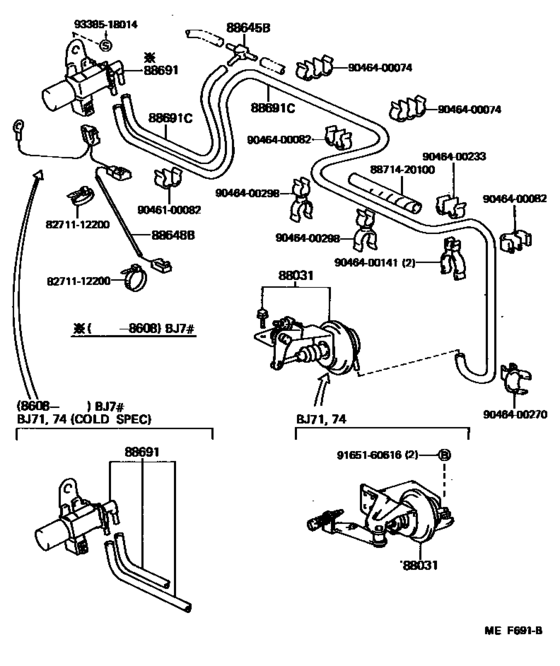

Heating & Air Conditioning - Vacuum Piping ([08.1988 - ] (8411- )BJ7# ; (8808- )BJ71,74) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88031
|
88031
88031-60060
Actuator Set, Idle-Up
[10.1985 - 01.1990] BJ71,74 |
88031-60060 |
— | ||
|
88645B
|
88645B
90413-04001 Way, 3(For Transfer Breather Hose)[11.1984 - 01.1990] BJ7#,LJ71 |
90413-04001 |
US $5.56 |
||
|
88648B
|
88648B
88648-90K02
Wiring, Cooler, No.1
[11.1984 - 01.1990] BJ7# |
88648-90K02 |
— | ||
|
88691
|
88691
88690-90K03
Valve, Magnet (For Idle Up Device)
[08.1986 - 08.1988] BJ7# |
88690-90K03 |
— | ||
|
88691
|
88691
88690-90K07
Valve, Magnet (For Idle Up Device)
[10.1985 - 01.1990] BJ71,74 COLD SPEC |
88690-90K07 |
— | ||
|
88691
|
88691
88691-90K00
Valve, Magnet (For Idle Up Device)
[11.1984 - 08.1986] BJ7# |
88691-90K00 |
— | ||
|
88691C
|
88691C
90445-08218 Hose, Fuel, No.1(For Charcoal Canister)[05.1985 - 08.1986] BJ7# ＊Ｈ，Ｌ＝１６５０ |
90445-08218 |
US $34.36 |
||
| replacement | |||||
|
88691C
|
88691C
90999-92007 Hose, Vacuum Tank[05.1985 - 08.1986] BJ7# ＊Ｈ，Ｌ＝１６５０ |
90999-92007 |
US $41.50 |
||
|
88691C
|
88691C
95411-10030
Hose (For Idle Up Device)
[11.1984 - 08.1986] BJ7# ＊Ｈ，Ｌ＝２８０，マーク＝＃０ |
95411-10030 |
— | ||
| replacement | |||||
|
88691C
|
88691C
90999-92002
Air Hose (300 mm)
[11.1984 - 08.1986] BJ7# ＊Ｈ，Ｌ＝２８０，マーク＝＃０ |
90999-92002 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
US $2.15 |
||
|
8871420100
|
8871420100
88714-20100
Insulator, Cooler Refrigerant Hose, No.1
|
88714-20100 |
— | ||
|
9046100082
|
9046100082
90461-00082
New Genuine Part
|
90461-00082 |
— | ||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $2.15 |
||
|
9046400082
|
9046400082
90464-00082 Clamp(For Resistive Cord) |
90464-00082 |
US $1.79 |
||
|
9046400141
|
9046400141
90464-00141 New Genuine Part |
90464-00141 |
US $2.62 |
||
|
9046400233
|
9046400233
90464-00233
Clamp (For Idle Up Divice), No.1
|
90464-00233 |
— | ||
|
9046400270
|
9046400270
90464-00270 Clamp(For Vacuum Hose) |
90464-00270 |
US $2.62 |
||
|
9046400298
|
9046400298
90464-00298 Clamp, No.2 (For Transfer Vacuum) |
90464-00298 |
US $2.62 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
|
9338518014
|
9338518014
93385-18014
New Genuine Part
|
93385-18014 |
— | ||
