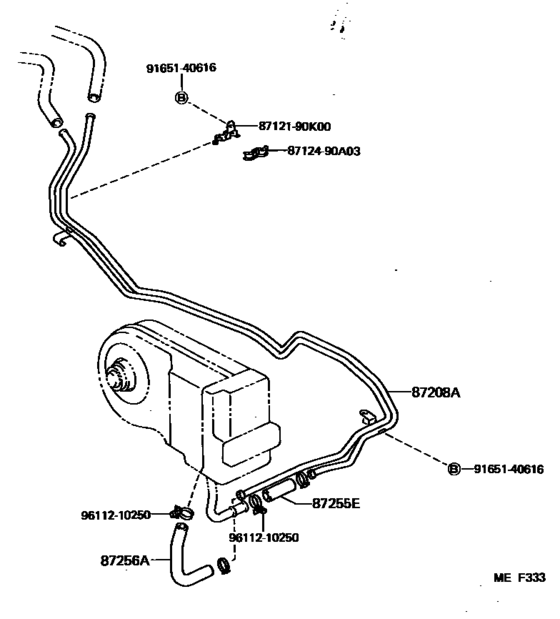

Heating & Air Conditioning - Water Piping ([11.1984 - 08.1987] (8411-8708) ; (8708- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87208A
|
87208A
87208-90K10
Pipe Sub-Assy, Heater Water, A
[10.1985 - 01.1990] BJ71,74 |
87208-90K10 |
— | ||
|
87255E
|
87255E
99556-20080
Hose, Rear Heater Water Inlet, A(From Engine)
[11.1984 - 01.1990] BJ7#,LJ71 ＊Ｈ，Ｌ＝８０ |
99556-20080 |
— | ||
| replacement | |||||
|
87255E
|
87255E
99556-20200 Hose, Water(For Lpg Regulator Outlet)[11.1984 - 01.1990] BJ7#,LJ71 ＊Ｈ，Ｌ＝８０ |
99556-20200 |
from US $6.16 |
||
|
87256A
|
87256A
87245-90K16 Hose, Rear Heater Water Outlet, A (From Heater Unit)[11.1984 - 01.1990] BJ7#,LJ71 |
87245-90K16 |
US $12.54 |
||
|
8712190K00
|
8712190K00
87121-90K00
Bracket, Heater, Front Rh
|
87121-90K00 |
— | ||
|
8712490A03
|
8712490A03
87124-90A03
Clamp, Heater
|
87124-90A03 |
— | ||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.22 |
||
