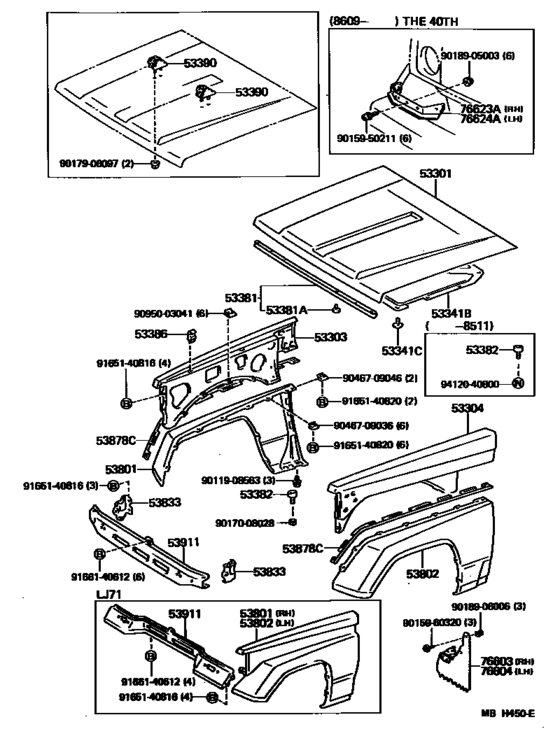

Hood & Front Fender ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-90K13 Hood Sub-Assy[07.1985 - 08.1986] BJ7#..HT |
53301-90K13 |
US $678.50 |
||
| replacements | |||||
|
53301
|
53301
53301-60151 Hood Sub-Assy[07.1985 - 08.1986] BJ7#..HT |
53301-60151 |
from US $654.76 |
||
|
53301
|
53301
85381-12050 Nozzle Sub-Assy, Washer[07.1985 - 08.1986] BJ7#..HT |
85381-12050 |
from US $16.19 |
||
|
53301
|
53301
53301-90K27 Hood Sub-Assy[08.1986 - 01.1990] BJ7#..HT |
53301-90K27 |
US $681.41 |
||
| replacements | |||||
|
53301
|
53301
53301-60151 Hood Sub-Assy[08.1986 - 01.1990] BJ7#..HT |
53301-60151 |
from US $654.76 |
||
|
53301
|
53301
85381-12050 Nozzle Sub-Assy, Washer[08.1986 - 01.1990] BJ7#..HT |
85381-12050 |
from US $16.19 |
||
|
53303
|
53303
53303-90K02 Panel Sub-Assy, Hood Side, Rh[11.1984 - 01.1990] BJ7# W/FENDER MIRROR,RADIO |
53303-90K02 |
US $302.85 |
||
|
53303
|
53303
53303-90K07 Panel Sub-Assy, Hood Side, Rh[11.1984 - 01.1990] BJ7# W/DOOR MIRROR,RADIO |
53303-90K07 |
US $302.85 |
||
|
53304
|
53304
53304-90K02 Panel Sub-Assy, Hood Side, Lh[11.1984 - 08.1986] BJ7# W/FENDER MIRROR |
53304-90K02 |
US $299.94 |
||
| replacement | |||||
|
53304
|
53304
53304-60070 Panel Sub-Assy, Hood Side, Lh[11.1984 - 08.1986] BJ7# W/FENDER MIRROR |
53304-60070 |
US $298.48 |
||
|
53304
|
53304
53304-90K07 Panel Sub-Assy, Hood Side, Lh[11.1984 - 08.1986] BJ7# W/DOOR MIRROR |
53304-90K07 |
US $299.94 |
||
| replacement | |||||
|
53304
|
53304
53304-60050 Panel Sub-Assy, Hood Side, Lh[11.1984 - 08.1986] BJ7# W/DOOR MIRROR |
53304-60050 |
from US $293.53 |
||
|
53304
|
53304
53304-90K11 Panel Sub-Assy, Hood Side, Lh[08.1986 - 01.1990] BJ7# W/FENDER MIRROR |
53304-90K11 |
US $302.85 |
||
| replacement | |||||
|
53304
|
53304
53304-60070 Panel Sub-Assy, Hood Side, Lh[08.1986 - 01.1990] BJ7# W/FENDER MIRROR |
53304-60070 |
US $298.48 |
||
|
53304
|
53304
53304-90K15 Panel Sub-Assy, Hood Side, Lh[08.1986 - 01.1990] BJ7# W/DOOR MIRROR |
53304-90K15 |
US $302.85 |
||
| replacement | |||||
|
53304
|
53304
53304-60050 Panel Sub-Assy, Hood Side, Lh[08.1986 - 01.1990] BJ7# W/DOOR MIRROR |
53304-60050 |
from US $293.53 |
||
|
53341B
|
53341B
53341-90K06 Insulator, Hood[10.1985 - 01.1990] BJ71,74 |
53341-90K06 |
from US $184.96 |
||
|
53341C
|
53341C
90467-09006 Clip(For Hood Insulator)[11.1984 - 02.1987] BJ7#,LJ71 |
90467-09006 |
from US $0.78 |
||
|
53341C
|
53341C
90467-09014 Clip(For Hood Insulator)[02.1987 - 01.1990] BJ7#,LJ71 |
90467-09014 |
from US $0.78 |
||
|
53381
|
53381
53381-90K01 Seal, Hood To Radiator Support[11.1984 - 01.1990] BJ7# |
53381-90K01 |
from US $19.32 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[11.1984 - 01.1990] BJ7# |
90467-08011 |
from US $0.32 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[11.1984 - 01.1990] BJ7# |
90467-08011-TH |
US $0.30 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [11.1984 - 01.1990] BJ7# |
90467-08011-83 |
US $0.51 |
||
|
53382
|
53382
53382-90K00
Bumper, Hood, Front
[11.1985 - 05.1988] BJ7#,LJ71 |
53382-90K00 |
— | ||
| replacement | |||||
|
53382
|
53382
53382-90K01 Bumper, Hood, Front[11.1985 - 05.1988] BJ7#,LJ71 |
53382-90K01 |
from US $6.59 |
||
|
53382
|
53382
53382-90K01 Bumper, Hood, Front[05.1988 - 01.1990] BJ7#,LJ71 |
53382-90K01 |
from US $6.59 |
||
|
53382
|
53382
53382-95189
Bumper, Hood, Front
[11.1984 - 11.1985] BJ7#,LJ71 |
53382-95189 |
— | ||
| replacement | |||||
|
53382
|
53382
53382-90K01 Bumper, Hood, Front[11.1984 - 11.1985] BJ7#,LJ71 |
53382-90K01 |
from US $6.59 |
||
|
53386
|
53386
53382-30060
Bumper, Hood, Rear
[11.1984 - 01.1990] BJ7#,LJ71 |
53382-30060 |
— | ||
| replacement | |||||
|
53386
|
53386
53384-60030 Bumper, Hood, Rear[11.1984 - 01.1990] BJ7#,LJ71 |
53384-60030 |
from US $5.57 |
||
|
53801
|
53801
53801-90K04 Fender Sub-Assy, Front Rh[11.1984 - 01.1990] BJ7# |
53801-90K04 |
US $489.84 |
||
|
53802
|
53802
53802-90K04 Fender Sub-Assy, Front Lh[11.1984 - 01.1990] BJ7# |
53802-90K04 |
from US $483.80 |
||
|
53833
|
53833
53833-90K01 Panel, Front Fender Side, Lower[11.1984 - 01.1990] BJ7# RH |
53833-90K01 |
from US $9.36 |
||
|
53833
|
53833
53834-90K01 Panel, Front Fender Side, Lower[11.1984 - 01.1990] BJ7# LH |
53834-90K01 |
US $9.36 |
||
|
53878C
|
53878C
53878-90K00 Spacer, Front Fender (Rh)[11.1984 - 01.1990] BJ7# RH |
53878-90K00 |
from US $19.32 |
||
|
53878C
|
53878C
53879-90K00 Spacer, Front Fender (Lh)[11.1984 - 01.1990] BJ7# LH |
53879-90K00 |
from US $19.32 |
||
|
53911
|
53911
53911-90K02
Panel, Front Valance
[11.1984 - 01.1990] BJ7# |
53911-90K02 |
— | ||
| replacement | |||||
|
53911
|
53911
53911-60010 Panel, Front Valance[11.1984 - 01.1990] BJ7# |
53911-60010 |
from US $123.31 |
||
|
53911
|
53911
53911-90K03
Panel, Front Valance
[11.1984 - 01.1990] BJ7#..LX W/HEADLAMP CLEANER |
53911-90K03 |
— | ||
| replacement | |||||
|
53911
|
53911
53911-60020 Panel, Front Valance[11.1984 - 01.1990] BJ7#..LX W/HEADLAMP CLEANER |
53911-60020 |
US $167.28 |
||
|
76603
|
76603
76603-90K00
Mudguard Sub-Assy, Front Fender, Rh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
76603-90K00 |
— | ||
| replacement | |||||
|
76603
|
76603
76603-60160 Mudguard Sub-Assy, Front Fender, Rh[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
76603-60160 |
from US $63.73 |
||
|
76604
|
76604
76604-90K00
Mudguard Sub-Assy, Front Fender, Lh
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
76604-90K00 |
— | ||
| replacement | |||||
|
76604
|
76604
76604-60150 Mudguard Sub-Assy, Front Fender, Lh[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
76604-60150 |
from US $59.66 |
||
|
9011908563
|
9011908563
90119-08563 Bolt |
90119-08563 |
US $2.87 |
||
|
9015950211
|
9015950211
90159-50211 New Genuine Part |
90159-50211 |
US $1.75 |
||
|
9015960320
|
9015960320
90159-60320
New Genuine Part
|
90159-60320 |
— | ||
| replacement | |||||
|
9015960320
|
9015960320
90159-60510 Screw with washer |
90159-60510 |
from US $0.74 |
||
|
9017008028
|
9017008028
90170-08028 Nut |
90170-08028 |
US $3.11 |
||
|
9017906097
|
9017906097
90179-06097 Clip(For Front Bumper), No.1 |
90179-06097 |
US $0.86 |
||
| replacement | |||||
|
9017906097
|
9017906097
90179-06206 Nut |
90179-06206 |
from US $0.76 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.10 |
||
|
9018906006
|
9018906006
90189-06006 Grommet |
90189-06006 |
from US $0.95 |
||
|
9046709036
|
9046709036
90467-09036 Clip |
90467-09036 |
from US $1.25 |
||
|
9046709046
|
9046709046
90467-09046 Clip |
90467-09046 |
from US $0.74 |
||
|
9095003041
|
9095003041
90950-03041 CASE |
90950-03041 |
from US $2.45 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.95 |
||
|
9165140820
|
9165140820
91651-40820 Bolt |
91651-40820 |
from US $0.96 |
||
|
9166140612
|
9166140612
91661-40612 New Genuine Part |
91661-40612 |
US $2.33 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
