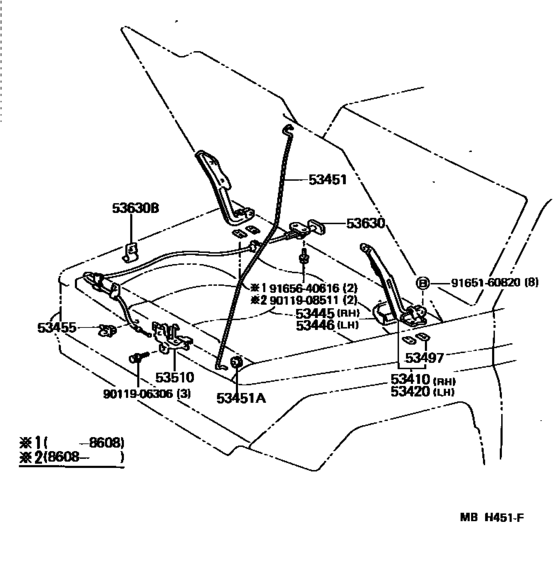

Hood Lock & Hinge ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-90K00
Hinge Assy, Hood, Rh
[11.1984 - 02.1989] BJ7#,LJ71 |
53410-90K00 |
— | ||
| replacement | |||||
|
53410
|
53410
53410-60100 Hinge Assy, Hood, Rh[11.1984 - 02.1989] BJ7#,LJ71 |
53410-60100 |
from US $21.36 |
||
|
53410
|
53410
53410-90K01
Hinge Assy, Hood, Rh
[02.1989 - 01.1990] BJ7#,LJ71 |
53410-90K01 |
— | ||
| replacement | |||||
|
53410
|
53410
53410-60100 Hinge Assy, Hood, Rh[02.1989 - 01.1990] BJ7#,LJ71 |
53410-60100 |
from US $21.36 |
||
|
53420
|
53420
53420-90K00
Hinge Assy, Hood, Lh
[11.1984 - 02.1989] BJ7#,LJ71 |
53420-90K00 |
— | ||
| replacement | |||||
|
53420
|
53420
53420-60100 Hinge Assy, Hood, Lh[11.1984 - 02.1989] BJ7#,LJ71 |
53420-60100 |
from US $21.77 |
||
|
53420
|
53420
53420-90K01
Hinge Assy, Hood, Lh
[02.1989 - 01.1990] BJ7#,LJ71 |
53420-90K01 |
— | ||
| replacement | |||||
|
53420
|
53420
53420-60100 Hinge Assy, Hood, Lh[02.1989 - 01.1990] BJ7#,LJ71 |
53420-60100 |
from US $21.77 |
||
|
53451
|
53451
53451-90K01 Rod, Hood Support[11.1984 - 01.1990] BJ7# |
53451-90K01 |
from US $22.71 |
||
|
53451A
|
53451A
90480-15296 Grommet(For Hood Support)[11.1984 - 01.1990] BJ7#,LJ71 |
90480-15296 |
from US $2.20 |
||
|
53455
|
53455
53455-14020 Clamp, Hood Support Rod[11.1984 - 01.1990] BJ7#,LJ71 |
53455-14020 |
from US $1.28 |
||
|
53497
|
53497
53497-90K00
Pad, Hood Hinge, No.1
[11.1984 - 02.1989] BJ7#,LJ71 |
53497-90K00 |
— | ||
| replacement | |||||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[11.1984 - 02.1989] BJ7#,LJ71 |
53497-12070 |
US $1.79 |
||
|
53497
|
53497
53497-90K02
Pad, Hood Hinge, No.1
[02.1989 - 01.1990] BJ7#,LJ71 厚さ＝０．５ |
53497-90K02 |
— | ||
| replacement | |||||
|
53497
|
53497
53497-12070 Pad, Hood Hinge, No.1[02.1989 - 01.1990] BJ7#,LJ71 厚さ＝０．５ |
53497-12070 |
US $1.79 |
||
|
53510
|
53510
53510-90K00
Lock Assy, Hood
[11.1984 - 01.1990] BJ7#,LJ71 |
53510-90K00 |
— | ||
| replacement | |||||
|
53510
|
53510
53510-60220 Lock Assy, Hood[11.1984 - 01.1990] BJ7#,LJ71 |
53510-60220 |
from US $35.76 |
||
|
53630
|
53630
53630-90K01
Cable Assy, Hood Lock Control
[11.1984 - 08.1986] BJ7#,LJ71 |
53630-90K01 |
— | ||
|
53630
|
53630
53630-90K02 Cable Assy, Hood Lock Control[08.1986 - 01.1990] BJ7#,LJ71 |
53630-90K02 |
from US $27.38 |
||
|
53630
|
53630
53630-90K03
Cable Assy, Hood Lock Control
[08.1986 - 01.1990] BJ7#..LX W/*DL |
53630-90K03 |
— | ||
|
53630B
|
53630B
69749-12010 Clamp(For Hood Lock Control Cable)[11.1984 - 01.1990] BJ7# |
69749-12010 |
from US $1.16 |
||
|
9011906306
|
9011906306
90119-06306 Bolt, Back Window Stay |
90119-06306 |
US $2.15 |
||
|
9011908511
|
9011908511
90119-08511 BOLT |
90119-08511 |
US $6.09 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.97 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
