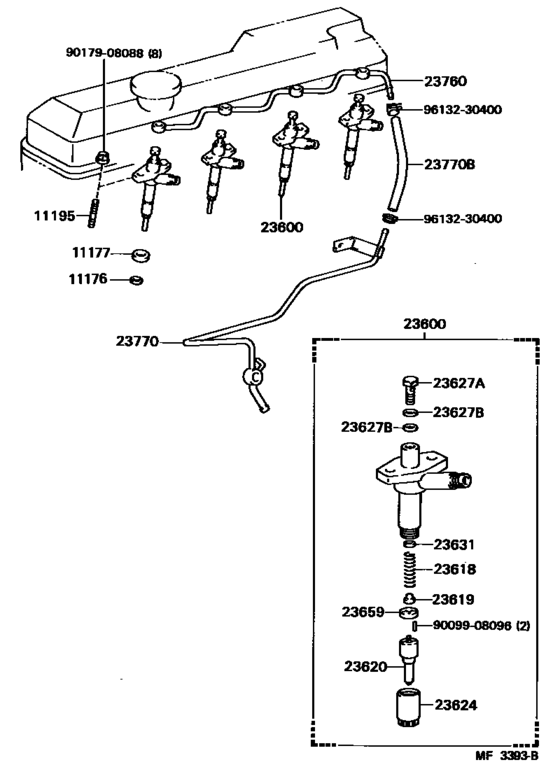

Injection Nozzle ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11176
|
11176
11176-56020 Seat, Injection Nozzle[10.1985 - 08.1988] 13BT..BJ71,74 |
11176-56020 |
from US $3.50 |
||
|
11176
|
11176
11176-56030
Seat, Injection Nozzle
[08.1988 -] 13BT..BJ71,74 |
11176-56030 |
— | ||
| replacement | |||||
|
11176
|
11176
11176-56031 Seat, Injection NozzleINJECTION NOZZLE [08.1988 -] 13BT..BJ71,74 |
11176-56031 |
from US $1.50 |
||
|
11177
|
11177
90430-17003 Gasket, Injection Nozzle Seat[10.1985 - 01.1990] 13BT..BJ71,74 |
90430-17003 |
from US $0.86 |
||
|
11195
|
11195
90116-08271 Bolt, Nozzle Set, Stud[08.1988 -] 13BT..BJ71,74 |
90116-08271 |
US $1.75 |
||
|
11195
|
11195
92132-60835
Bolt, Stud(For Head To Camshaft Bearing Cap)
[10.1985 - 08.1988] 13BT..BJ71,74 |
92132-60835 |
— | ||
|
23600
|
23600
23600-58020
Holder & Nozzle Set, Nozzle
[10.1985 - 01.1990] 13BT..BJ71,74 |
23600-58020 |
— | ||
|
23618
|
23618
23618-58010
Spring, Nozzle Holder Pressure
[10.1985 - 01.1990] 13BT..BJ71,74 |
23618-58010 |
— | ||
|
23619
|
23619
23619-58010
Pin, Nozzle Holder Pressure
[10.1985 - 01.1990] 13BT..BJ71,74 |
23619-58010 |
— | ||
|
23620
|
23620
23620-58020
Nozzle Assy
[10.1985 - 01.1990] 13BT..BJ71,74 |
23620-58020 |
— | ||
|
23624
|
23624
23624-58010
Nut, Nozzle Retaining
[10.1985 - 01.1990] 13BT..BJ71,74 |
23624-58010 |
— | ||
|
23627A
|
23627A
23625-58230 Screw, Follow(For Nozzle)[10.1985 - 01.1990] 13BT..BJ71,74 |
23625-58230 |
US $8.02 |
||
|
23627B
|
23627B
90201-08106 Washer(For Cap Nut)[10.1985 - 01.1990] 13BT..BJ71,74 |
90201-08106 |
from US $0.76 |
||
|
23631
|
23631
23631-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．０００ |
23631-58010 |
— | ||
|
23631
|
23631
23631-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．０５０ |
23631-58011 |
— | ||
|
23631
|
23631
23631-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．１００ |
23631-58012 |
— | ||
|
23631
|
23631
23631-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．１５０ |
23631-58013 |
— | ||
|
23631
|
23631
23631-58014
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．２００ |
23631-58014 |
— | ||
|
23631
|
23631
23631-58015
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．２５０ |
23631-58015 |
— | ||
|
23631
|
23631
23631-58016
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．３００ |
23631-58016 |
— | ||
|
23631
|
23631
23631-58017
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．３５０ |
23631-58017 |
— | ||
|
23631
|
23631
23631-58018
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．４００ |
23631-58018 |
— | ||
|
23631
|
23631
23631-58019
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．４５０ |
23631-58019 |
— | ||
|
23631
|
23631
23632-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．５００ |
23632-58010 |
— | ||
|
23631
|
23631
23632-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．５５０ |
23632-58011 |
— | ||
|
23631
|
23631
23632-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．６００ |
23632-58012 |
— | ||
|
23631
|
23631
23632-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．６５０ |
23632-58013 |
— | ||
|
23631
|
23631
23632-58014
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．７００ |
23632-58014 |
— | ||
|
23631
|
23631
23632-58015
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．７５０ |
23632-58015 |
— | ||
|
23631
|
23631
23632-58016
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．８００ |
23632-58016 |
— | ||
|
23631
|
23631
23632-58017
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．２７５ |
23632-58017 |
— | ||
|
23631
|
23631
23632-58018
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．３２５ |
23632-58018 |
— | ||
|
23631
|
23631
23632-58019
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．３７５ |
23632-58019 |
— | ||
|
23631
|
23631
23633-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．４２５ |
23633-58010 |
— | ||
|
23631
|
23631
23633-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．４７５ |
23633-58011 |
— | ||
|
23631
|
23631
23633-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝０．９５０ |
23633-58012 |
— | ||
|
23631
|
23631
23633-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝０．７００ |
23633-58013 |
— | ||
|
23631
|
23631
23633-58014
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝０．７５０ |
23633-58014 |
— | ||
|
23631
|
23631
23633-58015
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝０．８００ |
23633-58015 |
— | ||
|
23631
|
23631
23633-58016
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝０．８５０ |
23633-58016 |
— | ||
|
23631
|
23631
23633-58017
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝０．９００ |
23633-58017 |
— | ||
|
23631
|
23631
23633-58018
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝０．９７５ |
23633-58018 |
— | ||
|
23631
|
23631
23633-58019
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．０２５ |
23633-58019 |
— | ||
|
23631
|
23631
23634-58010
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．０７５ |
23634-58010 |
— | ||
|
23631
|
23631
23634-58011
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．１２５ |
23634-58011 |
— | ||
|
23631
|
23631
23634-58012
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．１７５ |
23634-58012 |
— | ||
|
23631
|
23631
23634-58013
Washer(For Nozzle Holder Pressure Spring)
[10.1985 - 01.1990] 13BT..BJ71,74 厚さ＝１．２２５ |
23634-58013 |
— | ||
|
23659
|
23659
23659-58010
Packing, Tip(For Nozzle)
[10.1985 - 01.1990] 13BT..BJ71,74 |
23659-58010 |
— | ||
|
23760
|
23760
23760-56050
Pipe Assy, Nozzle Leakage
[10.1985 - 01.1990] 13BT..BJ71,74 |
23760-56050 |
— | ||
|
23770
|
23770
23770-56070
Pipe Assy, Nozzle Leakage, No.2
[10.1985 - 01.1990] 13BT..BJ71,74 |
23770-56070 |
— | ||
|
23770B
|
23770B
95332-04020
Hose, Lpg Injector
[10.1985 - 02.1987] 13BT..BJ71,74 ＊Ｈ，Ｌ＝１５０; 2LT..LJ71 ＊Ｈ，Ｌ＝１１０ |
95332-04020 |
— | ||
| replacement | |||||
|
23770B
|
23770B
95333-04020 Hose, Lpg Injector[10.1985 - 02.1987] 13BT..BJ71,74 ＊Ｈ，Ｌ＝１５０; 2LT..LJ71 ＊Ｈ，Ｌ＝１１０ |
95333-04020 |
from US $4.48 |
||
|
23770B
|
23770B
95333-04020 Hose, Lpg Injector[02.1987 - 01.1990] 13BT..BJ71,74 ＊Ｈ，Ｌ＝１５０ |
95333-04020 |
from US $4.48 |
||
|
9009908096
|
9009908096
90099-08096
New Genuine Part
|
90099-08096 |
— | ||
|
9017908088
|
9017908088
90179-08088
NUT
|
90179-08088 |
— | ||
| replacement | |||||
|
9017908088
|
9017908088
94185-60800 NUT |
94185-60800 |
from US $0.80 |
||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.44 |
||
