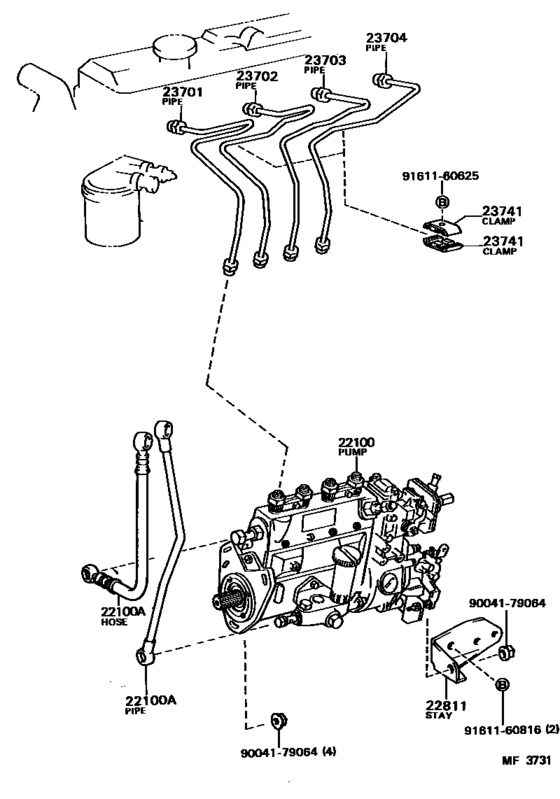

Injection Pump Assembly ([10.1985 - ] (8510- )13BT) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22100
|
22100
22100-58360
Pump Assy, Injection Or Supply
[10.1985 - 01.1990] 13BT..BJ71,74..MTM COLD SPEC |
22100-58360 |
— | ||
|
22100
|
22100
22100-58400
Pump Assy, Injection Or Supply
[10.1985 - 01.1990] 13BT..BJ71,74..MTM |
22100-58400 |
— | ||
|
22100A
|
22100A
23801-56060
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[10.1985 - 01.1990] 13BT..BJ71,74 パイプ 長さ＝３００,L=300 |
23801-56060 |
— | ||
|
22100A
|
22100A
23802-56040
Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
[10.1985 - 01.1990] 13BT..BJ71,74 ホース 長さ＝２１０,L=210 |
23802-56040 |
— | ||
|
22811
|
22811
22811-56040 Stay, Injection Pump, No.1[10.1985 - 01.1990] 13BT..BJ71,74 |
22811-56040 |
US $21.84 |
||
|
23701
|
23701
23701-56060
Pipe Sub-Assy, Injection, No.1
[10.1985 - 01.1990] 13BT..BJ71,74 |
23701-56060 |
— | ||
|
23702
|
23702
23702-56060
Pipe Sub-Assy, Injection, No.2
[10.1985 - 01.1990] 13BT..BJ71,74 |
23702-56060 |
— | ||
|
23703
|
23703
23703-56060
Pipe Sub-Assy, Injection, No.3
[10.1985 - 01.1990] 13BT..BJ71,74 |
23703-56060 |
— | ||
|
23704
|
23704
23704-56060
Pipe Sub-Assy, Injection, No.4
[10.1985 - 01.1990] 13BT..BJ71,74 |
23704-56060 |
— | ||
|
23741
|
23741
23741-56010 Clamp, Injection Pipe, No.1[11.1984 - 01.1990] 13BT,3B..BJ7#; 2LT..LJ71 |
23741-56010 |
from US $6.04 |
||
|
9004179064
|
9004179064
90041-79064
New Genuine Part
|
90041-79064 |
— | ||
|
9161160625
|
9161160625
91611-60625
Bolt, W/washer (For Parking Cove & Case)
|
91611-60625 |
— | ||
| replacement | |||||
|
9161160625
|
9161160625
91611-B0625 Bolt (For Automatic Transmission Oil Pan) |
91611-B0625 |
from US $0.38 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
