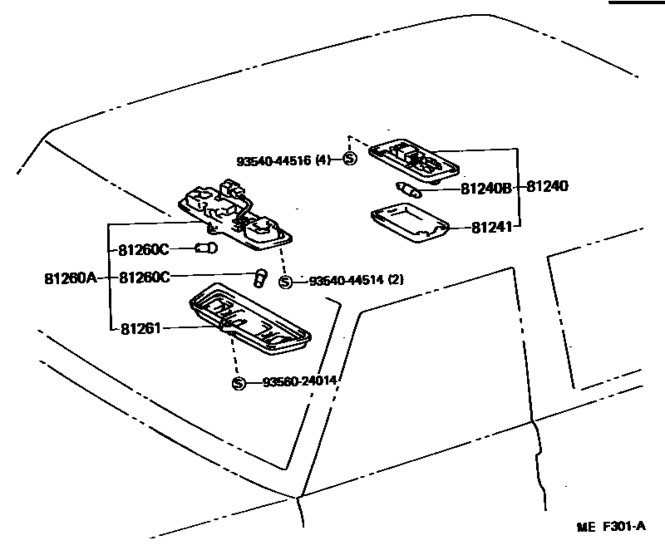

Interior Lamp ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81240
|
81240
81240-90K00 Lamp Assy, Room, No.1[11.1984 - 01.1990] BJ70,71 |
81240-90K00 |
US $28.56 |
||
|
81240
|
81240
81240-90K01
Lamp Assy, Room, No.1
[01.1985 - 07.1986] BJ70,71..LX W/SUN ROOF |
81240-90K01 |
— | ||
| replacement | |||||
|
81240
|
81240
81240-90K04
Lamp Assy, Room, No.1
[01.1985 - 07.1986] BJ70,71..LX W/SUN ROOF |
81240-90K04 |
— | ||
|
81240
|
81240
81240-90K04
Lamp Assy, Room, No.1
[07.1986 - 01.1990] BJ73,74; BJ70,71..LX W/SUN ROOF |
81240-90K04 |
— | ||
|
81240B
|
81240B
90981-16019 Bulb, Room Lamp, No.1[11.1984 - 01.1990] BJ7# ２４Ｖ １０Ｗ,24V 10W |
90981-16019 |
US $3.94 |
||
|
81241
|
81241
81241-20060 Lens, Room Lamp, No.1[11.1984 - 01.1990] BJ7#,LJ71 |
81241-20060 |
from US $4.96 |
||
|
81260A
|
81260A
81260-90K01
Lamp Assy, Map
[01.1985 - 08.1986] BJ70,71,LJ71..LX,LX5,SX5 |
81260-90K01 |
— | ||
|
81260C
|
81260C
99134-13060 Bulb(For Map Lamp)[01.1985 - 08.1986] BJ70,71,LJ71..LX,LX5,SX5 ２４Ｖ ６Ｗ,24V 6W |
99134-13060 |
US $1.03 |
||
|
81261
|
81261
81261-90K00 Lens And Cover, Map Lamp[01.1985 - 01.1990] BJ70,71,LJ71..LX,LX5,SX5 |
81261-90K00 |
US $32.50 |
||
|
9354044514
|
9354044514
93540-44514 New Genuine Part |
93540-44514 |
US $1.46 |
||
|
9354044516
|
9354044516
93540-44516 New Genuine Part |
93540-44516 |
US $0.52 |
||
|
9356024014
|
9356024014
93560-24014 Screw |
93560-24014 |
US $1.43 |
||
