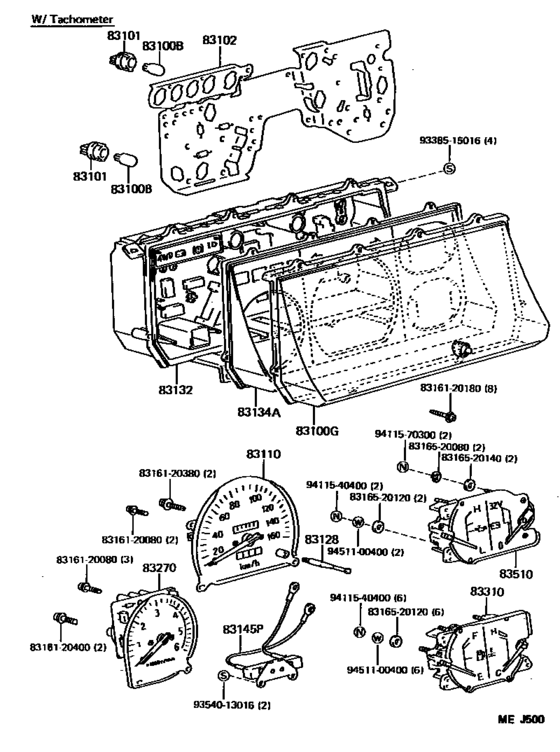

Meter ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
99134-12030 Bulb, Position Indicator Lamp[11.1984 - 01.1990] BJ7# ２４Ｖ ３Ｗ,24V 3W |
99134-12030 |
from US $2.15 |
||
|
83100G
|
83100G
83138-90K00 Glass, Combination Meter[11.1984 - 01.1990] BJ7# |
83138-90K00 |
from US $39.50 |
||
|
83101
|
83101
83101-89101 Socket Sub-Assy, Combination Meter Bulb[11.1984 - 01.1990] BJ7# |
83101-89101 |
US $9.32 |
||
|
83102
|
83102
83247-90K00
Plate Sub-Assy, Combination Meter Circuit, No.1
[11.1984 - 08.1986] BJ7# W/TACHOMETER |
83247-90K00 |
— | ||
|
83102
|
83102
83247-90K13
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1986 - 01.1990] BJ7#..LX |
83247-90K13 |
— | ||
|
83110
|
83110
83110-90K00
Speedometer Assy
[11.1984 - 08.1986] BJ7# W/TACHOMETER |
83110-90K00 |
— | ||
|
83128
|
83128
83128-90K00 Knob, Trip Counter[11.1984 - 01.1990] BJ7#,LJ71 |
83128-90K00 |
US $6.46 |
||
|
83132
|
83132
83132-90K00
Case, Combination Meter
[11.1984 - 08.1986] BJ7# W/TACHOMETER |
83132-90K00 |
— | ||
|
83132
|
83132
83132-90K06 Case, Combination Meter[08.1986 - 01.1990] BJ7#..LX |
83132-90K06 |
US $52.12 |
||
|
83132
|
83132
83132-90K07 Case, Combination Meter[08.1986 - 01.1990] BJ7#..LX W/DEFF LOCK |
83132-90K07 |
US $52.12 |
||
|
83134A
|
83134A
83134-90K00
Cover, Combination Gage
[11.1984 - 08.1986] BJ7#,LJ71 W/TACHOMETER |
83134-90K00 |
— | ||
| replacement | |||||
|
83134A
|
83134A
83134-90K05
Cover, Combination Gage
[11.1984 - 08.1986] BJ7#,LJ71 W/TACHOMETER |
83134-90K05 |
— | ||
|
83134A
|
83134A
83134-90K05
Cover, Combination Gage
[09.1986 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/TACHOMETER |
83134-90K05 |
— | ||
|
83145P
|
83145P
83145-90K00
Dropper, Meter
[08.1986 - 01.1990] BJ7# |
83145-90K00 |
— | ||
|
83145P
|
83145P
83340-90K00
Dropper, Meter
[10.1985 - 08.1986] BJ71,74 |
83340-90K00 |
— | ||
| replacement | |||||
|
83145P
|
83145P
83145-90K00
Dropper, Meter
[10.1985 - 08.1986] BJ71,74 |
83145-90K00 |
— | ||
|
83270
|
83270
83242-90K06 Tachometer Assy, Engine[10.1985 - 01.1990] BJ71,74 |
83242-90K06 |
US $487.76 |
||
|
83270
|
83270
83242-90K10 Tachometer Assy, Engine[08.1986 - 01.1990] BJ71,74 W/DEFF LOCK |
83242-90K10 |
US $541.63 |
||
|
83310
|
83310
83243-90K00
Gage Assy, Fuel Receiver
[11.1984 - 08.1986] BJ7#,LJ71 W/TACHOMETER |
83243-90K00 |
— | ||
|
83310
|
83310
83243-90K03
Gauge Sub-Assy, Fuel Receiver
[08.1986 - 06.1988] BJ7#,LJ71..LX,LX5,SX5 W/TACHO METER |
83243-90K03 |
— | ||
|
83310
|
83310
83243-90K06
Gauge Sub-Assy, Fuel Receiver
[06.1988 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 W/TACHO METER |
83243-90K06 |
— | ||
|
83510
|
83510
83246-90K00
Gage Assy, Oil Pressure Receiver
[11.1984 - 08.1986] BJ7# |
83246-90K00 |
— | ||
|
83510
|
83510
83246-90K02 Gauge, Oil Pressure Receiver[08.1986 - 01.1990] BJ7#..LX |
83246-90K02 |
US $195.20 |
||
|
8316120080
|
8316120080
83161-20080
Case, Combination Meter Mirror, No.1
|
83161-20080 |
— | ||
|
8316120180
|
8316120180
83161-20180 Case, Combination Meter Mirror, No.1 |
83161-20180 |
US $2.33 |
||
|
8316120380
|
8316120380
83161-20380 Case, Combination Meter Mirror, No.1 |
83161-20380 |
US $1.14 |
||
|
8316120400
|
8316120400
83161-20400
Case, Combination Meter Mirror, No.1
|
83161-20400 |
— | ||
|
8316520080
|
8316520080
83165-20080 Mirror, Combination Meter, No.2 |
83165-20080 |
US $2.18 |
||
|
8316520120
|
8316520120
83165-20120
Mirror, Combination Meter, No.2
|
83165-20120 |
— | ||
|
8316520140
|
8316520140
83165-20140 Mirror, Combination Meter, No.2 |
83165-20140 |
US $2.04 |
||
|
9338515016
|
9338515016
93385-15016 New Genuine Part |
93385-15016 |
US $1.43 |
||
|
9354013016
|
9354013016
93540-13016
Bulb, Combination Meter, No.1
|
93540-13016 |
— | ||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.33 |
||
|
9411570300
|
9411570300
94115-70300 New Genuine Part |
94115-70300 |
US $1.16 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
