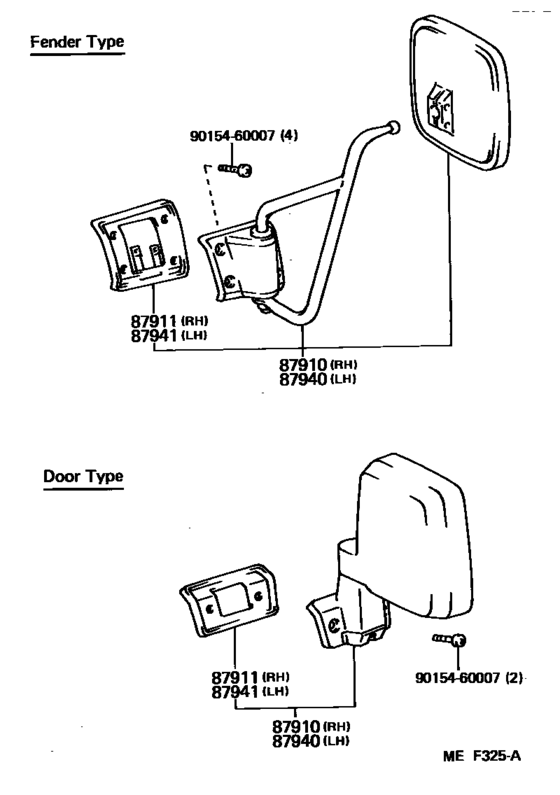

Mirror ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87910
|
87910
87910-90K02 Mirror Assy, Outer Rear View, Rh[11.1984 - 01.1990] BJ7# FENDER |
87910-90K02 |
US $139.40 |
||
|
87910
|
87910
87910-90K06
Mirror Assy, Outer Rear View, Rh
[10.1985 - 01.1990] BJ7#..LX DOOR |
87910-90K06 |
— | ||
|
87911
|
87911
87911-90K02
Gasket, Outer Rear View Mirror, Rh
[11.1984 - 01.1990] BJ7# FENDER |
87911-90K02 |
— | ||
|
87911
|
87911
87911-90K03
Gasket, Outer Rear View Mirror, Rh
[11.1984 - 07.1986] BJ7#,LJ71 DOOR |
87911-90K03 |
— | ||
| replacement | |||||
|
87911
|
87911
87911-90K05 Gasket, Outer Rear View Mirror[11.1984 - 07.1986] BJ7#,LJ71 DOOR |
87911-90K05 |
US $7.88 |
||
|
87911
|
87911
87911-90K05 Gasket, Outer Rear View Mirror[07.1986 - 01.1990] BJ7#,LJ71 DOOR |
87911-90K05 |
US $7.88 |
||
|
87940
|
87940
87940-90K02 Mirror Assy, Outer Rear View, Lh[11.1984 - 01.1990] BJ7# FENDER |
87940-90K02 |
US $139.40 |
||
|
87940
|
87940
87940-90K06
Mirror Assy, Outer Rear View, Lh
[10.1985 - 01.1990] BJ7#..LX DOOR |
87940-90K06 |
— | ||
|
87941
|
87941
87911-90K03
Gasket, Outer Rear View Mirror, Rh
[11.1984 - 07.1986] BJ7#,LJ71 DOOR |
87911-90K03 |
— | ||
| replacement | |||||
|
87941
|
87941
87911-90K05 Gasket, Outer Rear View Mirror[11.1984 - 07.1986] BJ7#,LJ71 DOOR |
87911-90K05 |
US $7.88 |
||
|
87941
|
87941
87911-90K05 Gasket, Outer Rear View Mirror[07.1986 - 01.1990] BJ7#,LJ71 DOOR |
87911-90K05 |
US $7.88 |
||
|
87941
|
87941
87941-90K00
Gasket, Outer Rear View Mirror, Lh
[11.1984 - 01.1990] BJ7# FENDER |
87941-90K00 |
— | ||
|
9015460007
|
9015460007
90154-60007 SCREW |
90154-60007 |
from US $1.06 |
||
