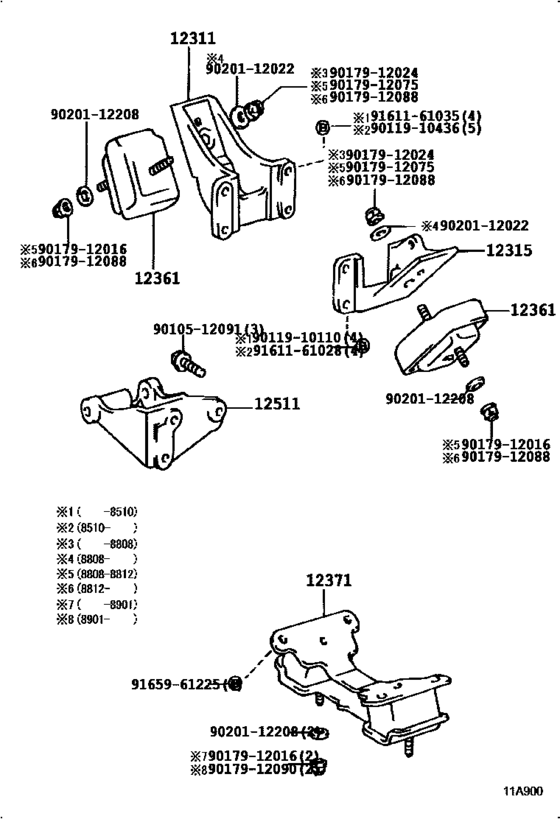

Mounting ([11.1984 - ] (8411- )13BT,3B) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-58031 Bracket, Engine Mounting, Front No.1 Rh[11.1984 - 12.1986] 13BT,3B..BJ7# |
12311-58031 |
US $68.43 |
||
|
12311
|
12311
12311-58032 Bracket, Engine Mounting, Front No.1 Rh[12.1986 - 01.1990] 13BT,3B..BJ7# |
12311-58032 |
US $117.94 |
||
|
12315
|
12315
12315-58020 Bracket, Engine Mounting, Front No.1 Lh[11.1984 - 01.1990] 13BT,3B..BJ7# |
12315-58020 |
US $43.68 |
||
|
12361
|
12361
12361-58030
Insulator, Engine Mounting, Front
[11.1984 - 07.1986] 13BT,3B..BJ7# |
12361-58030 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-58031
Insulator, Engine Mounting, Front
[11.1984 - 07.1986] 13BT,3B..BJ7# |
12361-58031 |
— | ||
|
12361
|
12361
12361-58060
Insulator, Engine Mounting, Front
[07.1986 - 08.1988] 13BT,3B..BJ7# |
12361-58060 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-58061
Insulator, Engine Mounting, Front
[07.1986 - 08.1988] 13BT,3B..BJ7# |
12361-58061 |
— | ||
|
12361
|
12361
12361-58061
Insulator, Engine Mounting, Front
[08.1988 - 01.1990] 13BT,3B..BJ7# |
12361-58061 |
— | ||
|
12371
|
12371
12371-58020
Insulator, Engine Mounting, Rear No.1
[11.1984 - 08.1988] 13BT,3B..BJ7#..MTM |
12371-58020 |
— | ||
| replacement | |||||
|
12371
|
12371
12371-58021 Insulator, Engine Mounting, Rear No.1[11.1984 - 08.1988] 13BT,3B..BJ7#..MTM |
12371-58021 |
from US $126.27 |
||
|
12371
|
12371
12371-58021 Insulator, Engine Mounting, Rear No.1[08.1988 - 01.1990] 13BT,3B..BJ7#..MTM |
12371-58021 |
from US $126.27 |
||
|
12511
|
12511
12511-56040
Bracket, Alternator, No.1
[11.1984 - 08.1988] 13BT,3B..BJ7# |
12511-56040 |
— | ||
|
9010512091
|
9010512091
90105-12091 New Genuine Part |
90105-12091 |
US $1.22 |
||
|
9011910110
|
9011910110
90119-10110
Bolt (For Control Shaft Cover)
|
90119-10110 |
— | ||
| replacement | |||||
|
9011910110
|
9011910110
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9011910436
|
9011910436
90119-10436
New Genuine Part
|
90119-10436 |
— | ||
|
9017912016
|
9017912016
90179-12016 NUT |
90179-12016 |
US $2.51 |
||
|
9017912024
|
9017912024
90179-12024 NUT |
90179-12024 |
from US $1.06 |
||
|
9017912075
|
9017912075
90179-12075 New Genuine Part |
90179-12075 |
US $2.62 |
||
|
9017912088
|
9017912088
90179-12088
New Genuine Part
|
90179-12088 |
— | ||
|
9017912090
|
9017912090
90179-12090 NUT |
90179-12090 |
from US $1.37 |
||
|
9020112022
|
9020112022
90201-12022 New Genuine Part |
90201-12022 |
US $1.51 |
||
|
9020112208
|
9020112208
90201-12208 WASHER |
90201-12208 |
from US $1.25 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161035
|
9161161035
91611-61035
BOLT
|
91611-61035 |
— | ||
| replacement | |||||
|
9161161035
|
9161161035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.10 |
||
|
9165961225
|
9165961225
91659-61225 BOLT |
91659-61225 |
US $3.76 |
||
