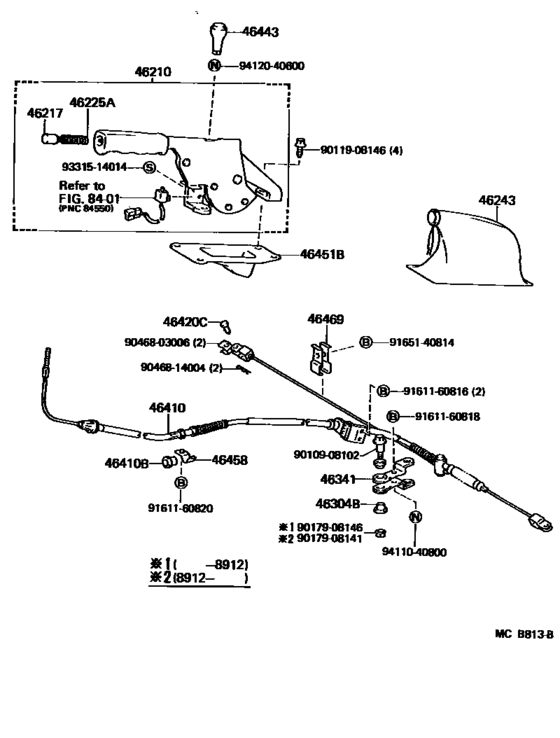

Parking Brake & Cable ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46210
|
46210
46210-60060-03
Lever Assy, Parking Brake
[10.1985 - 10.1988] BJ7#,LJ71..HT,WG GRAY,SHADOW GRAY |
46210-60060-03 |
— | ||
| replacement | |||||
|
46210
|
46210
46210-60061-C0
Lever Assy, Parking Brake
[10.1985 - 10.1988] BJ7#,LJ71..HT,WG GRAY,SHADOW GRAY |
46210-60061-C0 |
— | ||
|
46210
|
46210
46210-60060-06
Lever Assy, Parking Brake
[11.1984 - 10.1988] BJ7#,LJ71 BROWN,SEPIA BROWN |
46210-60060-06 |
— | ||
| replacement | |||||
|
46210
|
46210
46210-60061-C0
Lever Assy, Parking Brake
[11.1984 - 10.1988] BJ7#,LJ71 BROWN,SEPIA BROWN |
46210-60061-C0 |
— | ||
|
46210
|
46210
46210-60061-03
Lever Assy, Parking Brake
[10.1988 - 01.1990] BJ7#,LJ71..HT,WG GRAY,SHADOW GRAY |
46210-60061-03 |
— | ||
| replacement | |||||
|
46210
|
46210
46210-60061-C0
Lever Assy, Parking Brake
[10.1988 - 01.1990] BJ7#,LJ71..HT,WG GRAY,SHADOW GRAY |
46210-60061-C0 |
— | ||
|
46210
|
46210
46210-60061-06
Lever Assy, Parking Brake
[10.1988 - 01.1990] BJ7#,LJ71 BROWN,SEPIA BROWN |
46210-60061-06 |
— | ||
| replacement | |||||
|
46210
|
46210
46210-60061-C0
Lever Assy, Parking Brake
[10.1988 - 01.1990] BJ7#,LJ71 BROWN,SEPIA BROWN |
46210-60061-C0 |
— | ||
|
46217
|
46217
46217-10020-33 Knob, Parking Brake Release Rod[10.1985 - 01.1990] BJ7#,LJ71..HT,WG GRAY,GRAY |
46217-10020-33 |
US $3.35 |
||
| replacement | |||||
|
46217
|
46217
46217-10020-11 Knob, Parking Brake Release Rod (Black)[10.1985 - 01.1990] BJ7#,LJ71..HT,WG GRAY,GRAY |
46217-10020-11 |
from US $4.48 |
||
|
46217
|
46217
46217-10020-56 Knob, Parking Brake Release Rod[11.1984 - 01.1990] BJ7#,LJ71 BROWN,BROWN |
46217-10020-56 |
US $3.35 |
||
|
46225A
|
46225A
90501-10138 Spring, Compression(For Parking Brake Pawl Rod)[10.1988 - 01.1990] BJ7#,LJ71 |
90501-10138 |
US $0.52 |
||
|
46225A
|
46225A
90501-10745 Spring, Compression(For Parking Brake Pawl Rod)[11.1984 - 10.1988] BJ7#,LJ71 |
90501-10745 |
from US $2.87 |
||
|
46243
|
46243
46243-60060-01
Cover, Parking Brake Lever
[10.1985 - 01.1990] BJ7#,LJ71..HT,WG BLACK,BLACK |
46243-60060-01 |
— | ||
|
46243
|
46243
46243-60060-06
Cover, Parking Brake Lever
[11.1984 - 01.1990] BJ7#,LJ71 BROWN,SEPIA BROWN |
46243-60060-06 |
— | ||
|
46304B
|
46304B
90385-12029 Bush(For Parking Brake Equalizer)[11.1984 - 01.1990] BJ7#,LJ71 |
90385-12029 |
from US $1.58 |
||
|
46341
|
46341
46341-35030 Equalizer Sub-Assy, Parking Brake[11.1984 - 01.1990] BJ7#,LJ71 |
46341-35030 |
from US $5.95 |
||
|
46410
|
46410
46410-60210
Cable Assy, Parking Brake, No.1
[11.1984 - 08.1987] BJ70,71 SEMI FLOATING RR AXLE |
46410-60210 |
— | ||
| replacement | |||||
|
46410
|
46410
46410-60220
Cable Assy, Parking Brake, No.1
[11.1984 - 08.1987] BJ70,71 SEMI FLOATING RR AXLE |
46410-60220 |
— | ||
|
46410
|
46410
46410-60220
Cable Assy, Parking Brake, No.1
[11.1984 - 08.1987] BJ70,71 FULL FLOATING RR AXLE |
46410-60220 |
— | ||
|
46410B
|
46410B
90480-17158 Grommet(For Parking Brake Front Cable)[11.1984 - 01.1990] BJ7#,LJ71 |
90480-17158 |
from US $2.51 |
||
|
46420C
|
46420C
90240-08042 Pin, W/hole(For Gear Selecting Rod No.2)[11.1984 - 01.1990] BJ7#,LJ71 |
90240-08042 |
from US $1.75 |
||
|
46443
|
46443
46443-12020 Cap, Cable Adjusting[11.1984 - 01.1990] BJ7#,LJ71 |
46443-12020 |
from US $1.71 |
||
|
46451B
|
46451B
46451-60070
Bracket, Parking Brake Cable Support
[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
46451-60070 |
— | ||
|
46458
|
46458
46458-30020 Retainer, Cable[11.1984 - 01.1990] BJ7#,LJ71 |
46458-30020 |
US $5.02 |
||
|
46469
|
46469
46469-60020 Lever, Cable Guide Support[11.1984 - 01.1990] BJ7#,LJ71 |
46469-60020 |
US $12.54 |
||
|
9010908102
|
9010908102
90109-08102 NUT |
90109-08102 |
from US $1.27 |
||
|
9011908146
|
9011908146
90119-08146
Bolt(For Parking Brake Setting)
|
90119-08146 |
— | ||
|
9017908141
|
9017908141
90179-08141
Nut (For Transmission Control Cable)
|
90179-08141 |
— | ||
| replacement | |||||
|
9017908141
|
9017908141
90179-08038 Nut (For Transmission Control Cable) |
90179-08038 |
from US $0.78 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9046803006
|
9046803006
90468-03006 CLIP |
90468-03006 |
from US $1.27 |
||
|
9046814004
|
9046814004
90468-14004 Union, Auxiliary Fuel Band |
90468-14004 |
from US $0.65 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.79 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.20 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
