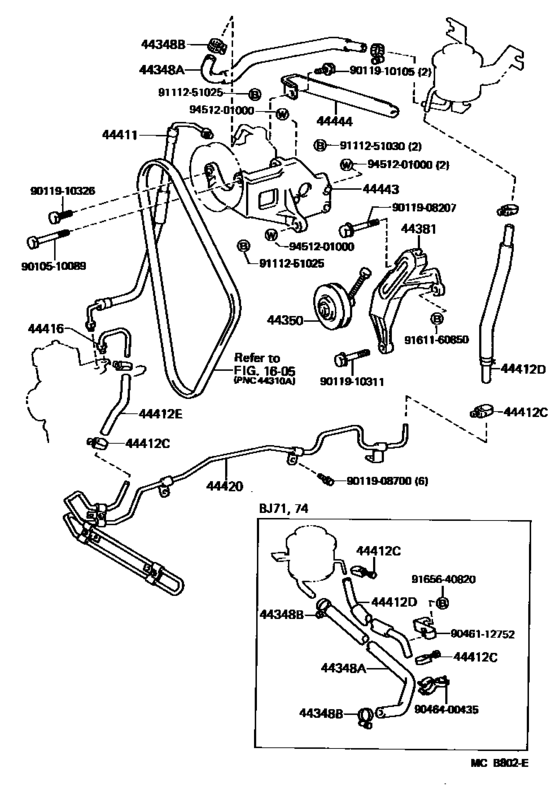

Power Steering Tube ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44348A
|
44348A
44348-60080
Hose, Oil Reservoir To Pump, No.1
[10.1985 - 01.1990] BJ71,74 |
44348-60080 |
— | ||
|
44348B
|
44348B
90460-26001 Clamp(For Oil Reservoir To Pump Hose)[11.1984 - 01.1990] BJ7#,LJ71 |
90460-26001 |
US $10.57 |
||
|
44350
|
44350
44350-60010
Pulley Assy, Power Steering Idle
[11.1984 - 01.1990] BJ7# |
44350-60010 |
— | ||
|
44381
|
44381
44381-60020
Bracket, Power Steering Idle Pulley
[11.1984 - 01.1990] BJ7# |
44381-60020 |
— | ||
|
44411
|
44411
44411-60221
Hose, Pressure Feed
[10.1985 - 08.1988] BJ7# |
44411-60221 |
— | ||
| replacement | |||||
|
44411
|
44411
44411-60320 Hose, Pressure Feed[10.1985 - 08.1988] BJ7# |
44411-60320 |
US $257.71 |
||
|
44411
|
44411
44411-60320 Hose, Pressure Feed[03.1989 - 01.1990] BJ7# |
44411-60320 |
US $257.71 |
||
|
44412C
|
44412C
90460-01001 Clamp, Oil Cooler Hose[11.1984 - 01.1990] BJ7#,LJ71 |
90460-01001 |
US $10.39 |
||
|
44412D
|
44412D
44412-60100 Hose, Return, No.1[10.1985 - 01.1990] BJ71,74 |
44412-60100 |
US $47.90 |
||
|
44412E
|
44412E
44412-60090
Hose, Return, No.2
[11.1984 - 01.1990] BJ7# |
44412-60090 |
— | ||
| replacement | |||||
|
44412E
|
44412E
90445-18147 Hose, Return, No.1[11.1984 - 01.1990] BJ7# |
90445-18147 |
US $10.66 |
||
|
44416
|
44416
44416-60090
Tube, Return(For Steering Gear Outlet)
[11.1984 - 01.1990] BJ7# |
44416-60090 |
— | ||
|
44420
|
44420
44420-60110 Cooler Assy, Oil[11.1984 - 01.1990] BJ7# |
44420-60110 |
US $183.46 |
||
|
44443
|
44443
44443-60060
Bracket, Pump
[11.1984 - 01.1990] BJ7# |
44443-60060 |
— | ||
|
44444
|
44444
44444-60020 Stay, Pump, Rear[10.1985 - 01.1990] BJ71,74 |
44444-60020 |
US $29.41 |
||
|
9010510089
|
9010510089
90105-10089 Bolt(For Alternator) |
90105-10089 |
US $6.45 |
||
|
9011908207
|
9011908207
90119-08207
New Genuine Part
|
90119-08207 |
— | ||
| replacement | |||||
|
9011908207
|
9011908207
90119-08768
New Genuine Part
|
90119-08768 |
— | ||
|
9011908700
|
9011908700
90119-08700 New Genuine Part |
90119-08700 |
US $1.79 |
||
|
9011910105
|
9011910105
90119-10105
New Genuine Part
|
90119-10105 |
— | ||
|
9011910311
|
9011910311
90119-10311 Bolt (For Transfer Extension Rear Housing) |
90119-10311 |
US $3.20 |
||
|
9011910326
|
9011910326
90119-10326
New Genuine Part
|
90119-10326 |
— | ||
| replacement | |||||
|
9011910326
|
9011910326
90119-10719 BOLT WWASHER |
90119-10719 |
US $4.12 |
||
|
9046112752
|
9046112752
90461-12752 New Genuine Part |
90461-12752 |
US $4.95 |
||
|
9046400435
|
9046400435
90464-00435 Clamp(For Ventilation Hose) |
90464-00435 |
US $3.32 |
||
|
9111251025
|
9111251025
91112-51025
Bolt(For Torque Arm Setting)
|
91112-51025 |
— | ||
| replacement | |||||
|
9111251025
|
9111251025
91112-61025 Bolt(For Clutch Pedal Stopper) |
91112-61025 |
from US $0.84 |
||
|
9111251030
|
9111251030
91112-51030
Pin Or Bolt(For Steering Worm Yoke)
|
91112-51030 |
— | ||
| replacement | |||||
|
9111251030
|
9111251030
91112-61032
Pin Or Bolt(For Steering Worm Yoke)
|
91112-61032 |
— | ||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
US $2.15 |
||
|
9165640820
|
9165640820
91656-40820
BOLT
|
91656-40820 |
— | ||
| replacement | |||||
|
9165640820
|
9165640820
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
