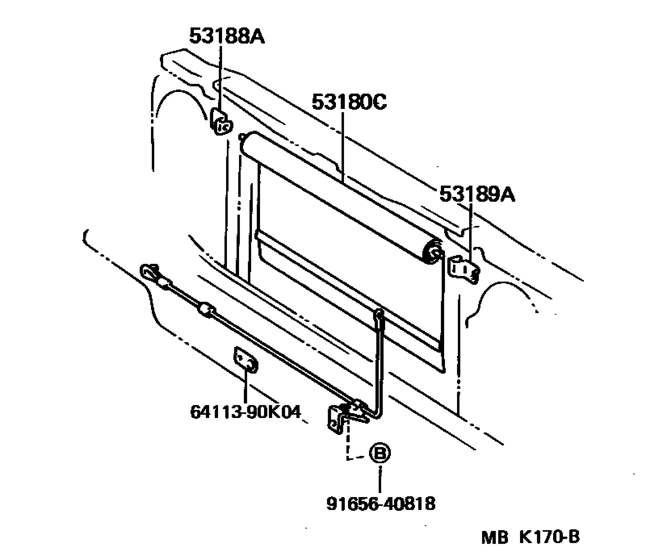

Radiator Support & Wind Guide ([10.1985 - ] (8510- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53180C
|
53180C
53180-90K00 Shutter Assy, Radiator[10.1985 - 01.1990] BJ71,74 |
53180-90K00 |
US $170.35 |
||
|
53188A
|
53188A
53188-90K00 Bracket, Radiator Shutter Support, Rh[10.1985 - 01.1990] BJ71,74 |
53188-90K00 |
US $5.39 |
||
|
53189A
|
53189A
53189-90K00 Bracket, Radiator Shutter Support, Lh[10.1985 - 01.1990] BJ71,74 |
53189-90K00 |
US $5.39 |
||
|
6411390K04
|
6411390K04
64113-90K04 Panel, Back Corner, Outer Rh |
64113-90K04 |
US $5.39 |
||
|
9165640818
|
9165640818
91656-40818
Clamp Or Clip, Hose(For Radiator Outlet No.1)
|
91656-40818 |
— | ||
| replacement | |||||
|
9165640818
|
9165640818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.84 |
||
