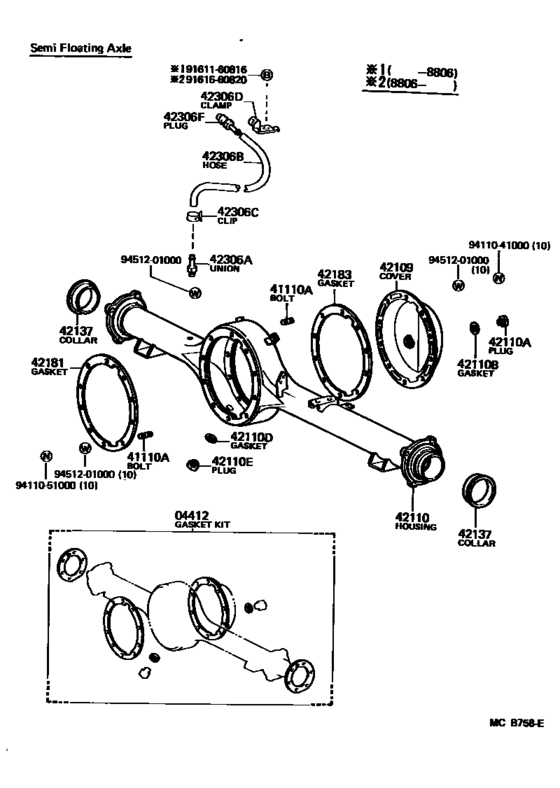

Rear Axle Housing & Differential ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04412
|
04412
04412-60010 Gasket Kit, Rear Differential Carrier[08.1986 - 01.1990] BJ7#..LX W/DIFFERENTIAL LOCK |
04412-60010 |
US $19.80 |
||
| replacement | |||||
|
04412
|
04412
04412-60140 Gasket Kit, Rear Differential Carrier[08.1986 - 01.1990] BJ7#..LX W/DIFFERENTIAL LOCK |
04412-60140 |
US $29.70 |
||
|
04412
|
04412
04412-60030 Gasket Kit, Rear Differential Carrier[08.1986 - 01.1990] BJ7# |
04412-60030 |
US $19.07 |
||
| replacement | |||||
|
04412
|
04412
04412-60130 Gasket Kit, Rear Differential Carrier[08.1986 - 01.1990] BJ7# |
04412-60130 |
US $18.78 |
||
|
04412
|
04412
04412-60040
Gasket Kit, Rear Differential Carrier
[08.1986 - 01.1990] BJ7# W/LSD |
04412-60040 |
— | ||
| replacement | |||||
|
04412
|
04412
04412-60140 Gasket Kit, Rear Differential Carrier[08.1986 - 01.1990] BJ7# W/LSD |
04412-60140 |
US $29.70 |
||
|
41110A
|
41110A
90116-10074 Bolt, Stud (For Power Take-Off Case)[11.1984 - 01.1990] BJ7# ネジ部長さ＝１６＆１２，長さ＝４０．５,L=40.5,S=12.5 & 16 |
90116-10074 |
from US $0.87 |
||
|
41110A
|
41110A
90116-10075 Bolt, Stud (For Power Take-Off Case)[11.1984 - 01.1990] BJ7# ネジ部長さ＝１８＆１２，長さ＝５３．５,L=53.5,S=12.5 & 8 |
90116-10075 |
from US $1.03 |
||
|
41110A
|
41110A
90116-10076 Bolt, No.1 (For Rear Differential Carrier Set)[11.1984 - 01.1990] BJ7# ネジ部長さ＝１５＆１２，長さ＝３５．５,L=35.5,S=12.5 & 15 |
90116-10076 |
from US $1.22 |
||
|
41110A
|
41110A
90116-10124 Bolt, No.1 (For Rear Differential Carrier Set)[08.1986 - 01.1990] BJ7#..LX ネジ部長さ＝３２＆１２．５，長さ９１．４,L=91.4,S=32 & 12.5,W/*DL |
90116-10124 |
from US $2.62 |
||
|
42109
|
42109
42109-60050
Cover Sub-Assy, Rear Axle Housing
[11.1984 - 01.1990] BJ7# |
42109-60050 |
— | ||
|
42110
|
42110
42110-60250 Housing Assy, Rear Axle[11.1984 - 08.1986] BJ7# |
42110-60250 |
US $1,367.18 |
||
|
42110
|
42110
42110-60251
Housing Assy, Rear Axle
[08.1986 - 01.1990] BJ7# |
42110-60251 |
— | ||
|
42110
|
42110
42110-60260
Housing Assy, Rear Axle
[11.1984 - 08.1986] BJ7# W/LSD |
42110-60260 |
— | ||
|
42110
|
42110
42110-60261
Housing Assy, Rear Axle
[08.1986 - 01.1990] BJ7# W/LSD |
42110-60261 |
— | ||
|
42110
|
42110
42110-60310
Housing Assy, Rear Axle
[08.1986 - 01.1990] BJ7#..LX W/DIFFERENTIAL LOCK |
42110-60310 |
— | ||
|
42110A
|
42110A
90341-18006 Plug (No magnet)[11.1984 - 01.1990] BJ7#,LJ71 |
90341-18006 |
from US $3.23 |
||
|
42110B
|
42110B
12157-10010 Gasket (For Drain Plug)[11.1984 - 01.1990] BJ7#,LJ71 |
12157-10010 |
from US $0.72 |
||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[11.1984 - 01.1990] BJ7#,LJ71 |
12157-10010 |
from US $0.72 |
||
|
42110E
|
42110E
90341-18057 Drain Plug (with Magnet)[11.1984 - 01.1990] BJ7#,LJ71 |
90341-18057 |
from US $6.27 |
||
|
42137
|
42137
42137-55010 Collar, Rear Axle Housing Side[11.1984 - 01.1990] BJ7# |
42137-55010 |
US $6.27 |
||
|
42181
|
42181
42181-36010
Gasket, Rear Differential Carrier
[11.1984 - 01.1990] BJ7# |
42181-36010 |
— | ||
| replacement | |||||
|
42181
|
42181
42181-60060 Gasket, Rear Differential Carrier[11.1984 - 01.1990] BJ7# |
42181-60060 |
from US $5.99 |
||
|
42181
|
42181
42181-60030 Gasket, Rear Differential Carrier[08.1986 - 01.1990] BJ7#..LX W/DIFFERENTIAL LOCK |
42181-60030 |
US $8.74 |
||
| replacement | |||||
|
42181
|
42181
42181-60060 Gasket, Rear Differential Carrier[08.1986 - 01.1990] BJ7#..LX W/DIFFERENTIAL LOCK |
42181-60060 |
from US $5.99 |
||
|
42183
|
42183
42183-35010 Gasket, Rear Axle Housing Cover[11.1984 - 01.1990] BJ7# |
42183-35010 |
from US $6.38 |
||
|
42306A
|
42306A
90404-10018
Union (For Rear Axle Breather House)
[11.1984 - 01.1990] BJ7# |
90404-10018 |
— | ||
|
42306B
|
42306B
95332-06060
Hose, Fuel
[11.1984 - 02.1987] BJ7# *H,L=480 |
95332-06060 |
— | ||
| replacement | |||||
|
42306B
|
42306B
95333-06060 Hose, Fuel[11.1984 - 02.1987] BJ7# *H,L=480 |
95333-06060 |
from US $17.08 |
||
|
42306B
|
42306B
95333-06060 Hose, Fuel[02.1987 - 01.1990] BJ7# *H,L=480 |
95333-06060 |
from US $17.08 |
||
|
42306C
|
42306C
96132-30600
Clip(For Actuator Hose)
[11.1984 - 01.1990] BJ7#,LJ71 |
96132-30600 |
— | ||
| replacement | |||||
|
42306C
|
42306C
96132-51100 Clip (For Hose)[11.1984 - 01.1990] BJ7#,LJ71 |
96132-51100 |
from US $1.39 |
||
|
42306D
|
42306D
90461-10387
Clamp (For Rear Axle Brather Hose)
[11.1984 - 01.1990] BJ7#,LJ71 |
90461-10387 |
— | ||
|
42306F
|
42306F
90930-03097 Plug, Breather (For Differential)[11.1984 - 01.1990] BJ7#,LJ71 |
90930-03097 |
from US $6.63 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
|
9161660820
|
9161660820
91616-60820
Bolt(For Clutch Release Cylinder Setting)
|
91616-60820 |
— | ||
| replacement | |||||
|
9161660820
|
9161660820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $0.74 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
