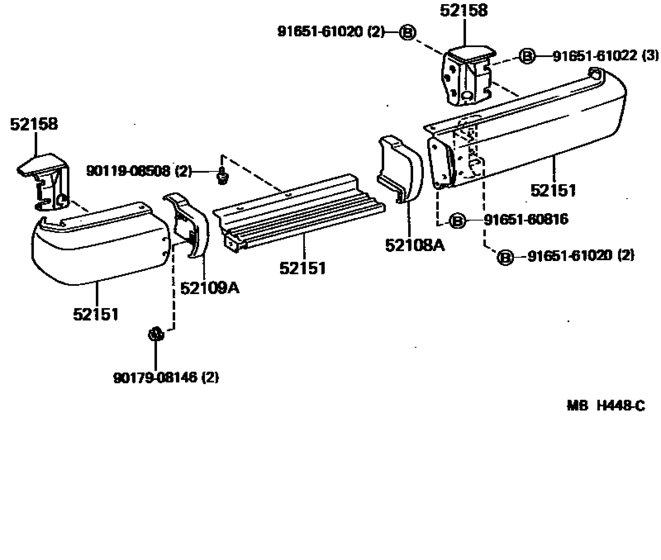

Rear Bumper & Bumper Stay ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52108A
|
52108A
52108-60010
Bumper Sub-Assy, Rear Side, Rh
[11.1984 - 01.1990] BJ7#,LJ71 |
52108-60010 |
— | ||
|
52109A
|
52109A
52109-60010
Bumper Sub-Assy, Rear Side, Lh
[11.1984 - 01.1990] BJ7#,LJ71 |
52109-60010 |
— | ||
|
52151
|
52151
52106-60040
Bumper Assy, Rear
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 RH |
52106-60040 |
— | ||
|
52151
|
52151
52107-90K01
Bumper Assy, Rear
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 LH |
52107-90K01 |
— | ||
|
52151
|
52151
52151-60070
Bumper Assy, Rear
[11.1984 - 01.1990] BJ7#,LJ71 CTR,W/PINTLE HOOK |
52151-60070 |
— | ||
|
52151
|
52151
52151-60090
Bumper Assy, Rear
[11.1984 - 01.1990] BJ7#,LJ71 CTR |
52151-60090 |
— | ||
|
52158
|
52158
52173-60010
Bracket, Rear Bumper
[11.1984 - 01.1990] BJ7#,LJ71 RH |
52173-60010 |
— | ||
|
52158
|
52158
52174-90K00
Bracket, Rear Bumper
[10.1985 - 01.1990] BJ7#,LJ71 LH |
52174-90K00 |
— | ||
|
9011908508
|
9011908508
90119-08508 BOLT |
90119-08508 |
US $1.61 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.33 |
||
|
9165161022
|
9165161022
91651-61022 Bolt(For Transaxle & Engine Setting) |
91651-61022 |
US $1.10 |
||
