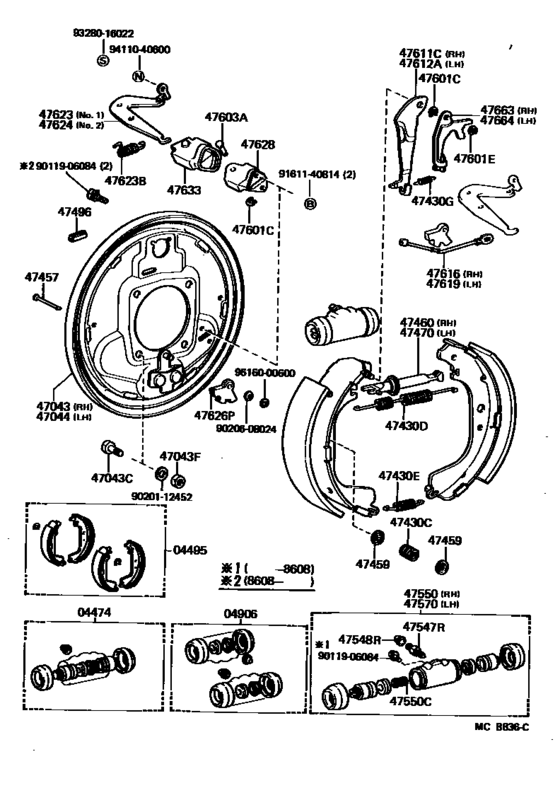

Rear Drum Brake Wheel Cylinder & Backing Plate ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-60010
Cylinder Kit, Rear Wheel
[11.1984 - 01.1990] BJ7# |
04474-60010 |
— | ||
| replacements | |||||
|
04474
|
04474
04474-35100 Cylinder Kit, Rear Wheel[11.1984 - 01.1990] BJ7# |
04474-35100 |
from US $23.88 |
||
|
04474
|
04474
90029-60009 Spring Sub-Assy, Rear Wheel Cylinder Piston[11.1984 - 01.1990] BJ7# |
90029-60009 |
US $1.61 |
||
|
04495
|
04495
04495-60010
Shoe Kit, Rear Brake
[11.1984 - 09.1988] BJ7# |
04495-60010 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-60070 Shoe Kit, Rear Brake[11.1984 - 09.1988] BJ7# |
04495-60070 |
from US $98.93 |
||
|
04495
|
04495
04495-60011
Shoe Kit, Rear Brake
[09.1988 - 01.1990] BJ7# |
04495-60011 |
— | ||
| replacement | |||||
|
04495
|
04495
04495-60070 Shoe Kit, Rear Brake[09.1988 - 01.1990] BJ7# |
04495-60070 |
from US $98.93 |
||
|
04495
|
04495
04497-60010
Shoe Kit, Rear Brake
[11.1984 - 01.1990] BJ7# REBUILT |
04497-60010 |
— | ||
|
04906
|
04906
04906-60050
Cup Kit, Rear Wheel Cylinder
[11.1984 - 01.1990] BJ7# |
04906-60050 |
— | ||
| replacement | |||||
|
04906
|
04906
04906-35130 Cup Kit, Rear Wheel Cylinder[11.1984 - 01.1990] BJ7# |
04906-35130 |
from US $12.22 |
||
|
47043
|
47043
47043-60050
Plate Sub-Assy, Brake Backing, Rear Rh
[11.1984 - 01.1990] BJ7# |
47043-60050 |
— | ||
| replacement | |||||
|
47043
|
47043
47043-60090 Plate Sub-Assy, Brake Backing, Rear Rh[11.1984 - 01.1990] BJ7# |
47043-60090 |
from US $92.60 |
||
|
47043C
|
47043C
90101-12021
Bolt(For Backing Plate To Steering Knuckle Setting)
[11.1984 - 01.1990] BJ7# ＊１２−１．２５ＰＸ３３−２１ |
90101-12021 |
— | ||
| replacement | |||||
|
47043C
|
47043C
90101-12175 Bolt(For Backing Plate To Rear Axle Housing Setting)[11.1984 - 01.1990] BJ7# ＊１２−１．２５ＰＸ３３−２１ |
90101-12175 |
from US $1.29 |
||
|
47043F
|
47043F
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting)[11.1984 - 01.1990] BJ7# |
94115-71200 |
from US $0.95 |
||
|
47044
|
47044
47044-60010
Plate Sub-Assy, Brake Backing, Rear Lh
[11.1984 - 01.1990] BJ7# |
47044-60010 |
— | ||
| replacement | |||||
|
47044
|
47044
47044-60040 Plate Sub-Assy, Brake Backing, Rear Lh[11.1984 - 01.1990] BJ7# |
47044-60040 |
US $108.24 |
||
|
47430C
|
47430C
90501-20012 Spring(For Front Brake Shoe Hold Down)[11.1984 - 01.1990] BJ7# |
90501-20012 |
from US $2.15 |
||
|
47430D
|
47430D
90506-26011 Spring, Tension(For Rear Brake Shoe Return)[11.1984 - 01.1990] BJ7# RH |
90506-26011 |
from US $7.17 |
||
|
47430D
|
47430D
90506-26014 Spring, Tension(For Rear Brake Shoe Return)[11.1984 - 01.1990] BJ7# LH |
90506-26014 |
from US $7.17 |
||
|
47430E
|
47430E
90506-18031 Spring, Tension(For Rear Brake Shoe Return)[11.1984 - 01.1990] BJ7# |
90506-18031 |
from US $4.60 |
||
|
47430G
|
47430G
90506-12031 Spring, Tension(For Rear Brake Automatic Adjust Lever)[11.1984 - 01.1990] BJ7# |
90506-12031 |
from US $3.12 |
||
|
47457
|
47457
47447-60010 Pin, Shoe Hold Down Spring(For Front Brake)[11.1984 - 01.1990] BJ7# |
47447-60010 |
from US $1.81 |
||
|
47459
|
47459
47449-30020 Cup, Shoe Hold Down Spring(For Front Brake)[11.1984 - 01.1990] BJ7#,LJ71 |
47449-30020 |
from US $1.27 |
||
|
47460
|
47460
47061-60011 Strut Set, Parking Brake Shoe, Rh[11.1984 - 01.1990] BJ7# |
47061-60011 |
from US $29.45 |
||
|
47470
|
47470
47062-60011 Strut Set, Parking Brake Shoe, Rh[11.1984 - 01.1990] BJ7# |
47062-60011 |
from US $25.78 |
||
|
47496
|
47496
47491-20011 Plug, Hole(For Rear Brake)[11.1984 - 01.1990] BJ7#,LJ71 |
47491-20011 |
from US $2.01 |
||
|
47547R
|
47547R
47547-60020 Plug, Bleeder(For Release Cylinder)[11.1984 - 01.1990] BJ7# |
47547-60020 |
US $4.12 |
||
|
47548R
|
47548R
31478-30010 Bleeder Plug Cap[11.1984 - 01.1990] BJ7#,LJ71 |
31478-30010 |
from US $1.48 |
||
|
47550
|
47550
47550-60120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1986 - 01.1990] BJ7# |
47550-60120 |
from US $66.92 |
||
|
47550
|
47550
47550-69105
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[11.1984 - 08.1986] BJ7# |
47550-69105 |
— | ||
| replacement | |||||
|
47550
|
47550
47550-60120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[11.1984 - 08.1986] BJ7# |
47550-60120 |
from US $66.92 |
||
|
47550C
|
47550C
47509-60010
Spring Sub-Assy, Rear Wheel Cylinder Piston
[11.1984 - 01.1990] BJ7# |
47509-60010 |
— | ||
|
47570
|
47570
47550-60120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[08.1986 - 01.1990] BJ7# |
47550-60120 |
from US $66.92 |
||
|
47570
|
47570
47550-69105
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
[11.1984 - 08.1986] BJ7# |
47550-69105 |
— | ||
| replacement | |||||
|
47570
|
47570
47550-60120 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[11.1984 - 08.1986] BJ7# |
47550-60120 |
from US $66.92 |
||
|
47601C
|
47601C
90213-06013 Washer, Type C(For Parking Brake Shoe)[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝１．２,T=1.2 |
90213-06013 |
from US $0.72 |
||
|
47601C
|
47601C
90213-07010 Washer, Type C(For Parking Brake Shoe)[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝１．６,T=1.6 |
90213-07010 |
from US $0.47 |
||
|
47601E
|
47601E
96160-00500 Ring, E(For Over Center Lever)[11.1984 - 01.1990] BJ7# |
96160-00500 |
from US $0.82 |
||
|
47603A
|
47603A
90249-08068 Pin, W/hole(For Rear Brake)[11.1984 - 01.1990] BJ7# |
90249-08068 |
from US $2.96 |
||
|
47611C
|
47611C
47611-60010
Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
[11.1984 - 01.1990] BJ7# |
47611-60010 |
— | ||
| replacement | |||||
|
47611C
|
47611C
47611-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[11.1984 - 01.1990] BJ7# |
47611-35040 |
from US $16.31 |
||
|
47612A
|
47612A
47612-60010
Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
[11.1984 - 01.1990] BJ7# |
47612-60010 |
— | ||
| replacement | |||||
|
47612A
|
47612A
47612-35040 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[11.1984 - 01.1990] BJ7# |
47612-35040 |
from US $16.31 |
||
|
47616
|
47616
47616-60010 Wire, Parking Brake, Rh[11.1984 - 01.1990] BJ7# |
47616-60010 |
from US $22.34 |
||
|
47619
|
47619
47616-60010 Wire, Parking Brake, Rh[11.1984 - 01.1990] BJ7# |
47616-60010 |
from US $22.34 |
||
|
47623
|
47623
47624-60010 Crank, Parking Brake Bell, No.1[11.1984 - 01.1990] BJ7# |
47624-60010 |
from US $13.98 |
||
|
47623B
|
47623B
90506-20033 Spring, Tension(For Parking Brake Shoe Strut)[11.1984 - 01.1990] BJ7# |
90506-20033 |
from US $3.65 |
||
|
47624
|
47624
47625-60010 Crank, Parking Brake Bell, No.2[11.1984 - 01.1990] BJ7# |
47625-60010 |
from US $13.98 |
||
|
47626P
|
47626P
47626-60010 Pulley, Parking Brake Segmental[11.1984 - 01.1990] BJ7# |
47626-60010 |
from US $15.50 |
||
|
47628
|
47628
47628-35020 Bracket, Rear Brake Bellcrank[11.1984 - 01.1990] BJ7# |
47628-35020 |
from US $18.98 |
||
|
47633
|
47633
47633-35020 Boot, Parking Brake Bellcrank[11.1984 - 01.1990] BJ7# |
47633-35020 |
from US $12.90 |
||
|
47663
|
47663
47643-60010 Lever, Rear Brake Automatic Adjust, Rh[11.1984 - 01.1990] BJ7# |
47643-60010 |
from US $4.90 |
||
|
47664
|
47664
47644-60010 Lever, Rear Brake Automatic Adjust, Rh[11.1984 - 01.1990] BJ7# |
47644-60010 |
from US $5.09 |
||
|
9011906084
|
9011906084
90119-06084 Bolt(For Rear Wheel Cylinder) |
90119-06084 |
from US $0.97 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.08 |
||
|
9020608024
|
9020608024
90206-08024 Washer, Wave(For Parking Brake Shoe) |
90206-08024 |
from US $0.87 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.74 |
||
|
9328016022
|
9328016022
93280-16022 SCREW |
93280-16022 |
from US $1.46 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.65 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
