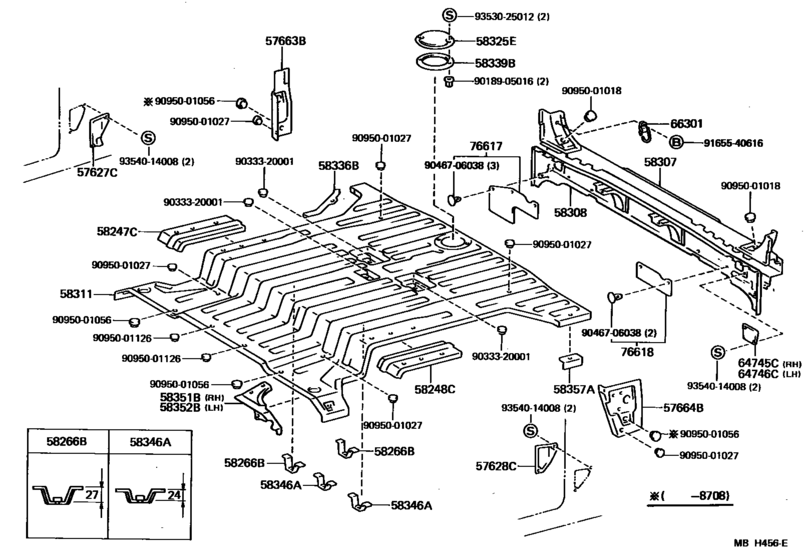

Rear Floor Panel & Rear Floor Member ([11.1984 - ] (8411- )BJ70,71,LJ71) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57627C
|
57627C
57627-90K00 Cover, Rear Floor Side Member, Rh[11.1984 - 01.1990] BJ70,71,LJ71 |
57627-90K00 |
US $9.03 |
||
| replacement | |||||
|
57627C
|
57627C
57627-60020 Cover, Rear Floor Side Member, Rh[11.1984 - 01.1990] BJ70,71,LJ71 |
57627-60020 |
US $6.29 |
||
|
57628C
|
57628C
57628-90K00 Cover, Rear Floor Side Member, Lh[11.1984 - 01.1990] BJ70,71,LJ71 |
57628-90K00 |
US $9.03 |
||
|
57663B
|
57663B
57663-90K00
Panel, Rear Floor Side, Rear Rh
[11.1984 - 01.1990] BJ7#,LJ71 |
57663-90K00 |
— | ||
| replacement | |||||
|
57663B
|
57663B
57663-60050 Panel, Rear Floor Side, Rear Rh[11.1984 - 01.1990] BJ7#,LJ71 |
57663-60050 |
US $18.40 |
||
|
57664B
|
57664B
57664-90K00
Panel, Rear Floor Side, Rear Lh
[11.1984 - 08.1987] BJ7#,LJ71 |
57664-90K00 |
— | ||
|
57664B
|
57664B
57664-90K02 Panel, Rear Floor Side, Rear Lh[08.1987 - 01.1990] BJ7#,LJ71 |
57664-90K02 |
US $16.60 |
||
|
58247C
|
58247C
58247-90K00 Reinforcement, Rear Seat Cushion Hinge, Rh[11.1984 - 01.1990] BJ70,71,LJ71 |
58247-90K00 |
US $38 |
||
|
58248C
|
58248C
58248-90K02 Reinforcement, Rear Seat Cushion Hinge, Lh[11.1984 - 01.1990] BJ70,71,LJ71 |
58248-90K02 |
US $36.87 |
||
|
58266B
|
58266B
58266-90K00 Bracket, Fuel Tube Clamp[11.1984 - 01.1990] BJ7#,LJ71 |
58266-90K00 |
US $4.02 |
||
|
58307
|
58307
58307-90K11 Panel Sub-Assy, Body Lower Back[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
58307-90K11 |
US $563.47 |
||
| replacement | |||||
|
58307
|
58307
58307-60090
Panel Sub-Assy, Body Lower Back
[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
58307-60090 |
— | ||
|
58307
|
58307
58307-90K17 Panel Sub-Assy, Body Lower Back[08.1986 - 01.1990] BJ7#,LJ71 |
58307-90K17 |
US $566.38 |
||
| replacement | |||||
|
58307
|
58307
58307-60090
Panel Sub-Assy, Body Lower Back
[08.1986 - 01.1990] BJ7#,LJ71 |
58307-60090 |
— | ||
|
58308
|
58308
58308-90K00
Panel Sub-Assy, Body Lower Back, Inner
[11.1984 - 01.1990] BJ7#,LJ71 |
58308-90K00 |
— | ||
|
58311
|
58311
58311-90K01 Pan, Rear Floor[11.1984 - 01.1990] BJ70,71 |
58311-90K01 |
US $760.03 |
||
|
58325E
|
58325E
58325-90K00 Cover, Rear Floor Service Hole[11.1984 - 01.1990] BJ7#,LJ71 |
58325-90K00 |
US $10.66 |
||
|
58336B
|
58336B
58336-90K00 Reinforcement, Rear Floor Pan[11.1984 - 01.1990] BJ7#,LJ71 |
58336-90K00 |
US $6.29 |
||
|
58339B
|
58339B
58339-90K00 Packing, Rear Floor Service Hole[11.1984 - 01.1990] BJ7#,LJ71 |
58339-90K00 |
US $3.32 |
||
|
58346A
|
58346A
58346-90K00 Bracket, Rear Floor Heat Insulator, No.2[11.1984 - 01.1990] BJ7#,LJ71 |
58346-90K00 |
US $4.89 |
||
|
58351B
|
58351B
58351-90K00 Reinforcement, Rear Floor Panel, Rh[11.1984 - 01.1990] BJ70,71,LJ71 |
58351-90K00 |
US $20.27 |
||
|
58352B
|
58352B
58352-90K00 Reinforcement, Rear Floor Panel, Lh[11.1984 - 01.1990] BJ70,71,LJ71 |
58352-90K00 |
US $20.27 |
||
|
58357A
|
58357A
58357-90K00
Reinforcement, Jack Carrier
[11.1984 - 08.1987] BJ7#,LJ71 |
58357-90K00 |
— | ||
|
58357A
|
58357A
58357-90K01 Reinforcement, Jack Carrier[08.1987 - 01.1990] BJ7#,LJ71 |
58357-90K01 |
US $2.97 |
||
|
64745C
|
64745C
64745-90K00
Cover, Lower Back Service Hole, Rh
[11.1984 - 01.1990] BJ7#,LJ71 |
64745-90K00 |
— | ||
|
64746C
|
64746C
64746-90K00
Cover, Lower Back Service Hole, Lh
[11.1984 - 01.1990] BJ7#,LJ71 |
64746-90K00 |
— | ||
|
66301
|
66301
66301-90K00 Hook Sub-Assy, Rope[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
66301-90K00 |
US $8.44 |
||
| replacement | |||||
|
66301
|
66301
66301-90K02 Hook Sub-Assy, Rope[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
66301-90K02 |
US $4.82 |
||
|
66301
|
66301
66301-90K02 Hook Sub-Assy, Rope[08.1986 - 01.1990] BJ7#,LJ71 |
66301-90K02 |
US $4.82 |
||
|
76617
|
76617
76617-90K00
Mudguard, Lower Back Panel, Front Rh
[11.1984 - 06.1986] BJ7#,LJ71 |
76617-90K00 |
— | ||
| replacement | |||||
|
76617
|
76617
76617-90K01
Mudguard, Lower Back Panel, Front Rh
[11.1984 - 06.1986] BJ7#,LJ71 |
76617-90K01 |
— | ||
|
76617
|
76617
76617-90K01
Mudguard, Lower Back Panel, Front Rh
[06.1986 - 01.1990] BJ7#,LJ71 |
76617-90K01 |
— | ||
|
76618
|
76618
76618-90K00
Mudguard, Lower Back Panel, Front Lh
[11.1984 - 06.1986] BJ7#,LJ71 |
76618-90K00 |
— | ||
| replacement | |||||
|
76618
|
76618
76618-90K01
Mudguard, Lower Back Panel, Front Lh
[11.1984 - 06.1986] BJ7#,LJ71 |
76618-90K01 |
— | ||
|
76618
|
76618
76618-90K01
Mudguard, Lower Back Panel, Front Lh
[06.1986 - 01.1990] BJ7#,LJ71 |
76618-90K01 |
— | ||
|
9018905016
|
9018905016
90189-05016 Grommet, Screw |
90189-05016 |
US $3.76 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.18 |
||
|
9046706038
|
9046706038
90467-06038 Clip(For Roof Headlining Rear Trim) |
90467-06038 |
US $2.87 |
||
|
9095001018
|
9095001018
90950-01018
Plug, Hole(For Front Door Panel)
|
90950-01018 |
— | ||
| replacement | |||||
|
9095001018
|
9095001018
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $2.15 |
||
|
9095001027
|
9095001027
90950-01027 Plug, Hole, No.3(For Dash Panel) |
90950-01027 |
US $3.58 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $1.94 |
||
|
9095001126
|
9095001126
90950-01126 Grommet, Safety Band Anchorage Nut |
90950-01126 |
US $6.45 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.16 |
||
|
9353025012
|
9353025012
93530-25012
New Genuine Part
|
93530-25012 |
— | ||
|
9354014008
|
9354014008
93540-14008 New Genuine Part |
93540-14008 |
US $1.61 |
||
