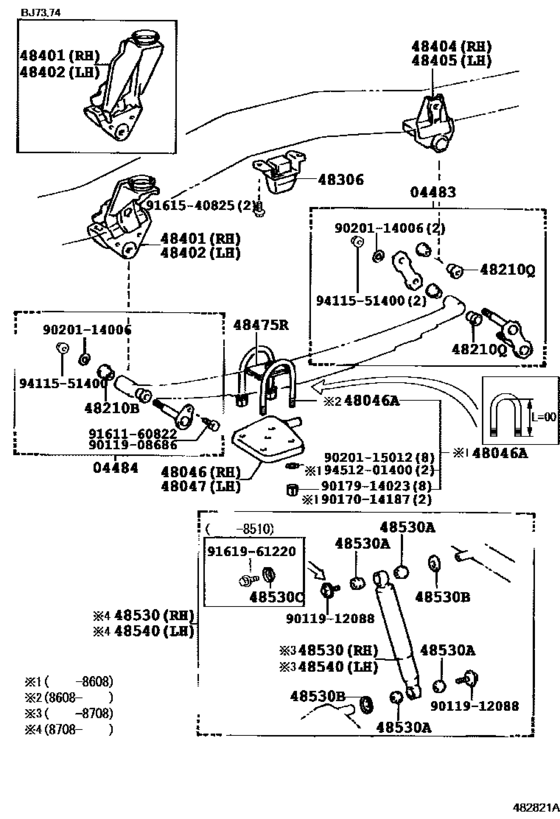

Rear Spring & Shock Absorber ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04483
|
04483
04483-60060 Shackle Kit, Front Spring[11.1984 - 01.1990] BJ7# |
04483-60060 |
from US $54.43 |
||
|
04484
|
04484
04484-60010
Pin Kit, Rear Spring
[11.1984 - 01.1990] BJ7# |
04484-60010 |
— | ||
| replacement | |||||
|
04484
|
04484
04484-60040 Pin Kit, Rear Spring[11.1984 - 01.1990] BJ7# |
04484-60040 |
US $49.73 |
||
|
48046
|
48046
48046-60042
Seat Sub-Assy, Spring U Bolt, Rh
[08.1987 - 01.1990] BJ7# |
48046-60042 |
— | ||
|
48046
|
48046
48046-60060 Seat Sub-Assy, Spring U Bolt, Rh[11.1984 - 08.1987] BJ7# |
48046-60060 |
US $62.17 |
||
|
48046A
|
48046A
90117-14001 Bolt, U(For Rear Spring)[08.1986 - 01.1990] BJ7# 長さ＝１７０,L=165 |
90117-14001 |
from US $25.12 |
||
|
48046A
|
48046A
90117-14177 Bolt, U(For Rear Spring)[08.1986 - 01.1990] BJ7# 長さ＝１７５,L=175,W/DISTANCE PLATE |
90117-14177 |
US $17.14 |
||
|
48046A
|
48046A
90118-14107 Bolt, U(For Rear Spring)[10.1985 - 08.1986] BJ7# L=175,W/DISTANCE PLATE |
90118-14107 |
US $21.84 |
||
| replacement | |||||
|
48046A
|
48046A
90117-14177 Bolt, U(For Rear Spring)[10.1985 - 08.1986] BJ7# L=175,W/DISTANCE PLATE |
90117-14177 |
US $17.14 |
||
|
48046A
|
48046A
90118-14158 Bolt, U(For Rear Spring)[11.1984 - 08.1986] BJ7# L=165 |
90118-14158 |
US $30.72 |
||
| replacement | |||||
|
48046A
|
48046A
90117-14001 Bolt, U(For Rear Spring)[11.1984 - 08.1986] BJ7# L=165 |
90117-14001 |
from US $25.12 |
||
|
48047
|
48047
48047-60060
Seat Sub-Assy, Spring U Bolt, Lh
[11.1984 - 08.1987] BJ7# |
48047-60060 |
— | ||
|
48047
|
48047
48047-60080
Seat Sub-Assy, Spring U Bolt, Lh
[08.1987 - 01.1990] BJ7# |
48047-60080 |
— | ||
| replacement | |||||
|
48047
|
48047
48047-60090 Seat Sub-Assy, Spring U Bolt, Lh[08.1987 - 01.1990] BJ7# |
48047-60090 |
from US $46.02 |
||
|
48210B
|
48210B
90389-18002 Bush(For Spring Shackle, Pin)[11.1984 - 01.1990] BJ7# |
90389-18002 |
from US $6.38 |
||
|
48210Q
|
48210Q
90389-18002 Bush(For Spring Shackle, Pin)[11.1984 - 01.1990] BJ7# |
90389-18002 |
from US $6.38 |
||
|
48306
|
48306
48306-60050 Bumper Sub-Assy, Rear Spring[11.1984 - 01.1990] BJ7# |
48306-60050 |
from US $43.61 |
||
|
48401
|
48401
48404-60010 Bracket Sub-Assy, Rear Spring, Front Rh[11.1984 - 01.1990] BJ70,71 |
48404-60010 |
US $96.10 |
||
|
48402
|
48402
48407-60010 Bracket Sub-Assy, Rear Spring, Front Lh[11.1984 - 01.1990] BJ70,71 |
48407-60010 |
US $96.10 |
||
|
48404
|
48404
48416-60060
Bracket Sub-Assy, Rear Spring, Rear Rh
[11.1984 - 01.1990] BJ7# |
48416-60060 |
— | ||
| replacement | |||||
|
48404
|
48404
48416-60090
Bracket, Spring, No.4 Rh
[11.1984 - 01.1990] BJ7# |
48416-60090 |
— | ||
|
48405
|
48405
48417-60010
Bracket Sub-Assy, Rear Spring, Rear Lh
[11.1984 - 01.1990] BJ7# |
48417-60010 |
— | ||
| replacement | |||||
|
48405
|
48405
48417-60020
Bracket, Spring, No.4 Lh
[11.1984 - 01.1990] BJ7# |
48417-60020 |
— | ||
|
48475R
|
48475R
48475-60020 Plate, Distance(For Front)[11.1984 - 01.1990] BJ7# |
48475-60020 |
from US $35.28 |
||
|
48530
|
48530
48531-60140 Absorber Assy, Shock, Rear Rh[11.1984 - 08.1987] BJ7# |
48531-60140 |
US $94.64 |
||
| replacement | |||||
|
48530
|
48530
48531-69137 Absorber Assy, Shock, Rear Rh[11.1984 - 08.1987] BJ7# |
48531-69137 |
US $94.64 |
||
|
48530
|
48530
48531-69136 Absorber Assy, Shock, Rear Rh[08.1987 - 01.1990] BJ7# |
48531-69136 |
US $96.10 |
||
| replacement | |||||
|
48530
|
48530
48531-69138 Absorber Assy, Shock, Rear Rh[08.1987 - 01.1990] BJ7# |
48531-69138 |
US $96.10 |
||
|
48530A
|
48530A
90385-19003 Bush(For Shock Absorber)[08.1987 - 01.1990] BJ7#,LJ71 |
90385-19003 |
from US $2.47 |
||
|
48530A
|
48530A
90385-19057 Bush(For Front Shock Absorber)[11.1984 - 08.1987] BJ7# |
90385-19057 |
US $7.17 |
||
|
48530B
|
48530B
90948-03011 Washer, Front Shock Absorber Cushion, No.1[11.1984 - 01.1990] BJ7#,LJ71 |
90948-03011 |
from US $2.33 |
||
|
48540
|
48540
48531-60140 Absorber Assy, Shock, Rear Rh[11.1984 - 08.1987] BJ7# |
48531-60140 |
US $94.64 |
||
| replacement | |||||
|
48540
|
48540
48531-69137 Absorber Assy, Shock, Rear Rh[11.1984 - 08.1987] BJ7# |
48531-69137 |
US $94.64 |
||
|
48540
|
48540
48531-69136 Absorber Assy, Shock, Rear Rh[08.1987 - 01.1990] BJ7# |
48531-69136 |
US $96.10 |
||
| replacement | |||||
|
48540
|
48540
48531-69138 Absorber Assy, Shock, Rear Rh[08.1987 - 01.1990] BJ7# |
48531-69138 |
US $96.10 |
||
|
9011908686
|
9011908686
90119-08686 BOLT |
90119-08686 |
from US $0.99 |
||
|
9011912088
|
9011912088
90119-12088 BOLT |
90119-12088 |
from US $2.01 |
||
|
9017014187
|
9017014187
90170-14187 NUT |
90170-14187 |
US $3.23 |
||
|
9017914023
|
9017914023
90179-14023 Nut(For Rear Spring U Bolt) |
90179-14023 |
from US $1.98 |
||
|
9020114006
|
9020114006
90201-14006 New Genuine Part |
90201-14006 |
US $1.97 |
||
|
9020115012
|
9020115012
90201-15012 Washer(For Rear Spring U Bolt) |
90201-15012 |
from US $1.18 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161540825
|
9161540825
91615-40825
Bolt(for Intake Manifold To Exhaust Manifold)
|
91615-40825 |
— | ||
| replacement | |||||
|
9161540825
|
9161540825
91611-60822 Bolt |
91611-60822 |
from US $1.16 |
||
|
9161961220
|
9161961220
91619-61220 Bolt, Stud |
91619-61220 |
US $4.48 |
||
|
9411551400
|
9411551400
94115-51400 Nut, Lock |
94115-51400 |
US $3.58 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.79 |
||
