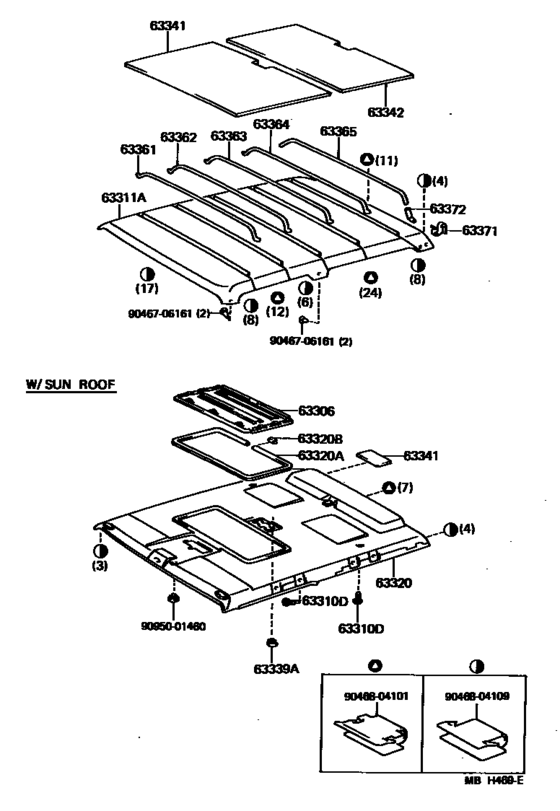

Roof Headlining & Silencer Pad ([11.1984 - ] (8411- )BJ70,71) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63306
|
63306
63306-90K01-08 Trim Sub-Assy, Sunshade[11.1984 - 08.1986] BJ70,71,LJ71..LX,LX5,SX5 IVORY,IVORY |
63306-90K01-08 |
US $487.76 |
||
|
63311A
|
63311A
63310-90K00-08
Headlining Assy, Roof
[11.1984 - 01.1990] BJ70,71..HT IVORY,IVORY |
63310-90K00-08 |
— | ||
| replacement | |||||
|
63311A
|
63311A
63310-90K00-B0 Headlining Assy, RoofGray [11.1984 - 01.1990] BJ70,71..HT IVORY,IVORY |
63310-90K00-B0 |
US $242.86 |
||
|
63320
|
63320
63320-90K01-08
Headlining Assy, Sun Roof Or Removable Roof
[10.1985 - 08.1986] BJ70,71,LJ71..LX,LX5,SX5 W/SUN ROOF,IVORY,IVORY |
63320-90K01-08 |
— | ||
| replacement | |||||
|
63320
|
63320
63320-90K02-08
Headlining Assy, Sun Roof Or Removable Roof
[10.1985 - 08.1986] BJ70,71,LJ71..LX,LX5,SX5 W/SUN ROOF,IVORY,IVORY |
63320-90K02-08 |
— | ||
|
63320
|
63320
63320-90K02-08
Headlining Assy, Sun Roof Or Removable Roof
[08.1986 - 08.1987] BJ70,71,LJ71..LX,LX5 W/SUN ROOF,IVORY,IVORY |
63320-90K02-08 |
— | ||
|
63320
|
63320
63320-90K06-08 Headlining Assy, Sun Roof Or Removable Roof[08.1987 - 01.1990] BJ70,71,LJ71..LX,LX5 W/SUN ROOF,IVORY,IVORY |
63320-90K06-08 |
US $794.98 |
||
|
63320
|
63320
63339-90K00-08
Headlining Assy, Sun Roof Or Removable Roof
[08.1987 - 01.1990] BJ70,71,LJ71..LX,LX5 IVORY,IVORY |
63339-90K00-08 |
— | ||
|
63320A
|
63320A
63318-90K01
Moulding, Sun Roof Or Removable Roof Opening Trim
[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5,SX5 |
63318-90K01 |
— | ||
|
63320B
|
63320B
63319-14011
Joint, Sun Roof Opening Trim
[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5,SX5 |
63319-14011 |
— | ||
|
63339A
|
63339A
63339-90K00-08
Headlining Assy, Sun Roof Or Removable Roof
[08.1987 - 01.1990] BJ71,LJ71..LX,LX5 IVORY,IVORY |
63339-90K00-08 |
— | ||
|
63341
|
63341
63341-90K00
Pad, Roof Silencer, No.1
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
63341-90K00 |
— | ||
| replacement | |||||
|
63341
|
63341
63341-60150
Pad, Roof Silencer, No.1
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
63341-60150 |
— | ||
|
63341
|
63341
63341-90K02 Pad, Roof Silencer, No.1[11.1984 - 01.1990] BJ70,71,LJ71..LX,LX5,SX5 W/SUN ROOF |
63341-90K02 |
US $3.35 |
||
|
63342
|
63342
63341-90K00
Pad, Roof Silencer, No.1
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
63341-90K00 |
— | ||
| replacement | |||||
|
63342
|
63342
63341-60150
Pad, Roof Silencer, No.1
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
63341-60150 |
— | ||
|
63361
|
63361
63363-90K00
Support, Roof Headlining, No.1
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1275 |
63363-90K00 |
— | ||
|
63361
|
63361
63363-90K01 Support, Roof Headlining, No.1[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1272 |
63363-90K01 |
US $14.56 |
||
|
63361
|
63361
63363-90K02 Support, Roof Headlining, No.1[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1269 |
63363-90K02 |
US $14.56 |
||
|
63362
|
63362
63361-90K00
Support, Roof Headlining, No.2
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1262 |
63361-90K00 |
— | ||
|
63362
|
63362
63361-90K01
Support, Roof Headlining, No.2
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1265 |
63361-90K01 |
— | ||
|
63362
|
63362
63361-90K02 Support, Roof Headlining, No.2[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1268 |
63361-90K02 |
US $14.56 |
||
|
63363
|
63363
63361-90K00
Support, Roof Headlining, No.2
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1262 |
63361-90K00 |
— | ||
|
63363
|
63363
63361-90K01
Support, Roof Headlining, No.2
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1265 |
63361-90K01 |
— | ||
|
63363
|
63363
63361-90K02 Support, Roof Headlining, No.2[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1268 |
63361-90K02 |
US $14.56 |
||
|
63364
|
63364
63361-90K00
Support, Roof Headlining, No.2
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1262 |
63361-90K00 |
— | ||
|
63364
|
63364
63361-90K01
Support, Roof Headlining, No.2
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1265 |
63361-90K01 |
— | ||
|
63364
|
63364
63361-90K02 Support, Roof Headlining, No.2[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1268 |
63361-90K02 |
US $14.56 |
||
|
63365
|
63365
63362-90K00
Support, Roof Headlining, No.5
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1233 |
63362-90K00 |
— | ||
|
63365
|
63365
63362-90K01 Support, Roof Headlining, No.5[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1236 |
63362-90K01 |
US $14.56 |
||
|
63365
|
63365
63362-90K02 Support, Roof Headlining, No.5[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG L=1239 |
63362-90K02 |
US $14.56 |
||
|
63371
|
63371
63372-90K00
Hook, Roof Headlining Support
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
63372-90K00 |
— | ||
|
63372
|
63372
63371-90A02 Retainer, Roof Headlining Support[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
63371-90A02 |
US $8.91 |
||
|
9046706161
|
9046706161
90467-06161
New Genuine Part
|
90467-06161 |
— | ||
|
9046804101
|
9046804101
90468-04101 Clip, Roof Headlining |
90468-04101 |
US $0.87 |
||
|
9046804109
|
9046804109
90468-04109 Clip, Roof Headlining |
90468-04109 |
US $0.87 |
||
|
9095001460
|
9095001460
90950-01460
Plug, Hole(For Roof Headlining Assy)
|
90950-01460 |
— | ||
| replacement | |||||
|
9095001460
|
9095001460
90950-01460-B0 Plug, Hole(For Roof Headlining Assy) |
90950-01460-B0 |
US $2.62 |
||
