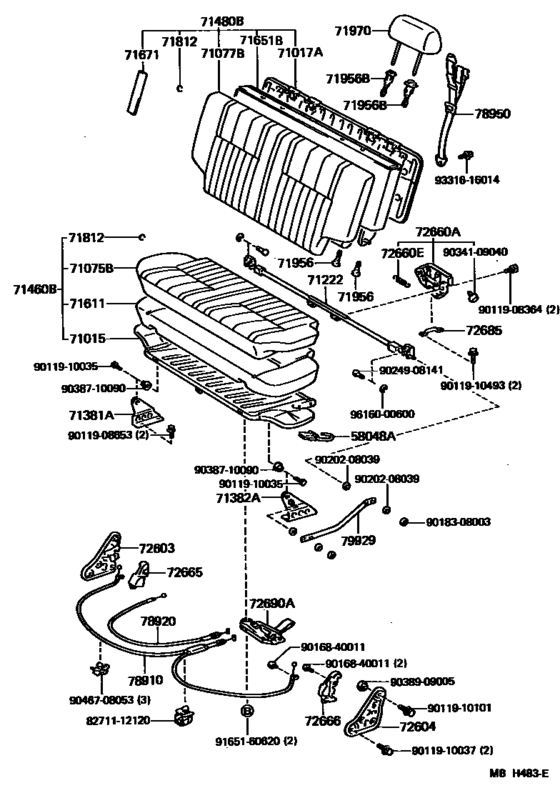

Seat & Seat Track ([11.1984 - ] (8411- )BJ70,71) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58048A
|
58048A
58048-90K00 Hook Sub-Assy, Rope, No.1[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
58048-90K00 |
US $19.07 |
||
|
71015
|
71015
71015-90K04 Frame Sub-Assy, Rear Seat Cushion[11.1984 - 01.1990] BJ70,71 |
71015-90K04 |
US $544.54 |
||
|
71017A
|
71017A
71017-90K11
Frame Sub-Assy, Rear Seat Back
[10.1985 - 08.1987] BJ70,71 |
71017-90K11 |
— | ||
|
71017A
|
71017A
71017-90K17 Frame Sub-Assy, Rear Seat Back[08.1987 - 01.1990] BJ70,71 |
71017-90K17 |
US $481.94 |
||
|
71075B
|
71075B
71075-90K15-03
Cover, Rear Seat Cushion (For Bench Type)
[11.1984 - 08.1986] BJ70,71..LX FB,GRAY,GRAY |
71075-90K15-03 |
— | ||
|
71075B
|
71075B
71075-90K15-05
Cover, Rear Seat Cushion (For Bench Type)
[11.1984 - 08.1986] BJ70,71..LX FB,BEIGE,BEIGE |
71075-90K15-05 |
— | ||
|
71075B
|
71075B
71075-90K21-03
Cover, Rear Seat Cushion (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,GRAY,GRAY |
71075-90K21-03 |
— | ||
|
71075B
|
71075B
71075-90K21-05
Cover, Rear Seat Cushion (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,BEIGE,BEIGE |
71075-90K21-05 |
— | ||
|
71075B
|
71075B
71075-90K39-03 Cover, Rear Seat Cushion (For Bench Type)[08.1987 - 01.1990] BJ70,71..LX FB,GRAY,SHADOW GRAY |
71075-90K39-03 |
US $391.66 |
||
|
71075B
|
71075B
71075-90K39-06 Cover, Rear Seat Cushion (For Bench Type)[08.1987 - 01.1990] BJ70,71..LX FB,BROWN,SEPIA BROWN |
71075-90K39-06 |
US $391.66 |
||
|
71077B
|
71077B
71077-90K15-03 Cover, Rear Seat Back (For Bench Type)[11.1984 - 08.1986] BJ7#..LX FB,GRAY,GRAY |
71077-90K15-03 |
US $390.21 |
||
|
71077B
|
71077B
71077-90K15-05
Cover, Rear Seat Back (For Bench Type)
[11.1984 - 08.1986] BJ7#..LX FB,BEIGE,BEIGE |
71077-90K15-05 |
— | ||
|
71077B
|
71077B
71077-90K23-03
Cover, Rear Seat Back (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,GRAY,GRAY |
71077-90K23-03 |
— | ||
|
71077B
|
71077B
71077-90K23-05
Cover, Rear Seat Back (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,BEIGE,BEIGE |
71077-90K23-05 |
— | ||
|
71077B
|
71077B
71077-90K39-03 Cover, Rear Seat Back (For Bench Type)[08.1987 - 01.1990] BJ70,71..LX FB,GRAY,SHADOW GRAY |
71077-90K39-03 |
US $391.66 |
||
|
71077B
|
71077B
71077-90K39-06 Cover, Rear Seat Back (For Bench Type)[08.1987 - 01.1990] BJ70,71..LX FB,BROWN,SEPIA BROWN |
71077-90K39-06 |
US $391.66 |
||
|
71222
|
71222
71033-90K03-01 Leg Sub-Assy, Rear Seat Cushion[11.1984 - 01.1990] BJ70,71 BLACK |
71033-90K03-01 |
US $160.16 |
||
|
71381A
|
71381A
71381-90K04 Bracket, Rear Seat Cushion Set, Rh[11.1984 - 01.1990] BJ70,71 |
71381-90K04 |
US $133.95 |
||
|
71382A
|
71382A
71382-90K04 Bracket, Rear Seat Cushion Set, Lh[11.1984 - 01.1990] BJ70,71 |
71382-90K04 |
US $133.95 |
||
|
71460B
|
71460B
71460-90K12-03
Cushion Assy, Rear Seat (For Bench Type)
[11.1984 - 08.1986] BJ70,71..LX FB,GRAY,GRAY |
71460-90K12-03 |
— | ||
|
71460B
|
71460B
71460-90K12-05
Cushion Assy, Rear Seat (For Bench Type)
[11.1984 - 08.1986] BJ70,71..LX FB,BEIGE,BEIGE |
71460-90K12-05 |
— | ||
|
71460B
|
71460B
71460-90K23-03
Cushion Assy, Rear Seat (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,GRAY,GRAY |
71460-90K23-03 |
— | ||
|
71460B
|
71460B
71460-90K23-05
Cushion Assy, Rear Seat (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,BEIGE,BEIGE |
71460-90K23-05 |
— | ||
|
71460B
|
71460B
71460-90K42-03
Cushion Assy, Rear Seat (For Bench Type)
[08.1987 - 01.1990] BJ70,71..LX FB,GRAY,SHADOW GRAY |
71460-90K42-03 |
— | ||
|
71460B
|
71460B
71460-90K42-06
Cushion Assy, Rear Seat (For Bench Type)
[08.1987 - 01.1990] BJ70,71..LX FB,BROWN,SEPIA BROWN |
71460-90K42-06 |
— | ||
|
71480B
|
71480B
71480-90K27-03
Back Assy, Rear Seat (For Bench Type)
[10.1985 - 08.1986] BJ70,71..LX FB,GRAY,GRAY |
71480-90K27-03 |
— | ||
|
71480B
|
71480B
71480-90K27-05
Back Assy, Rear Seat (For Bench Type)
[10.1985 - 08.1986] BJ70,71..LX FB,BEIGE,BEIGE |
71480-90K27-05 |
— | ||
|
71480B
|
71480B
71480-90K33-03
Back Assy, Rear Seat (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,GRAY,GRAY |
71480-90K33-03 |
— | ||
|
71480B
|
71480B
71480-90K33-05
Back Assy, Rear Seat (For Bench Type)
[08.1986 - 08.1987] BJ70,71..LX FB,BEIGE,BEIGE |
71480-90K33-05 |
— | ||
|
71480B
|
71480B
71480-90K47-03
Back Assy, Rear Seat (For Bench Type)
[08.1987 - 01.1990] BJ70,71..LX FB,GRAY,SHADOW GRAY |
71480-90K47-03 |
— | ||
|
71480B
|
71480B
71480-90K47-06
Back Assy, Rear Seat (For Bench Type)
[08.1987 - 01.1990] BJ70,71..LX FB,BROWN,SEPIA BROWN |
71480-90K47-06 |
— | ||
|
71611
|
71611
71611-90K03 Pad, Rear Seat Cushion[11.1984 - 08.1987] BJ70,71 |
71611-90K03 |
US $228.59 |
||
|
71611
|
71611
71611-90K08 Pad, Rear Seat Cushion[08.1987 - 01.1990] BJ70,71 |
71611-90K08 |
US $321.78 |
||
|
71651B
|
71651B
71507-90K12
Pad, Rear Seat Back(For Bench Type)
[10.1985 - 08.1987] BJ70,71 |
71507-90K12 |
— | ||
|
71651B
|
71651B
71507-90K14 Pad, Rear Seat Back(For Bench Type)[08.1987 - 01.1990] BJ70,71 |
71507-90K14 |
US $187.82 |
||
|
71671
|
71671
71671-90K00 Pad, Rear Seat Back Silencer, A[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
71671-90K00 |
US $7.86 |
||
|
71812
|
71812
90468-18071
Clip (For Front Seat Cushion Cover)
[11.1984 - 01.1990] BJ7#,LJ71 |
90468-18071 |
— | ||
| replacement | |||||
|
71812
|
71812
90468-16019 Clip (For Rear Seat Back)[11.1984 - 01.1990] BJ7#,LJ71 |
90468-16019 |
from US $0.84 |
||
|
71956
|
71956
71955-90K00-01 Support, Rear Seat Headrest[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 BLACK,BLACK |
71955-90K00-01 |
US $4.08 |
||
|
71956B
|
71956B
71930-10060-33
Support, Front Seat Headrest
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 ロック付,W/LOCK,GRAY,SHADOW GRAY |
71930-10060-33 |
— | ||
|
71956B
|
71956B
71930-10060-36 Support, Rear Seat Headrest[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 ロック付,W/LOCK,BROWN,SEPIA BROWN |
71930-10060-36 |
US $17.18 |
||
| replacement | |||||
|
71956B
|
71956B
71930-10060-50
Support, Front Seat Headrest
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 ロック付,W/LOCK,BROWN,SEPIA BROWN |
71930-10060-50 |
— | ||
|
71956B
|
71956B
71931-10010-33
Support, Front Seat Headrest
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 ロック無,W/O LOCK,GRAY,SHADOW GRAY |
71931-10010-33 |
— | ||
|
71956B
|
71956B
71931-10010-36 Support, Rear Seat Headrest[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 ロック無,W/O LOCK,BROWN,SEPIA BROWN |
71931-10010-36 |
US $10.92 |
||
| replacement | |||||
|
71956B
|
71956B
71931-10010-B1
Support, Front Seat Headrest
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 ロック無,W/O LOCK,BROWN,SEPIA BROWN |
71931-10010-B1 |
— | ||
|
71970
|
71970
71940-90K01-03 Headrest Assy, Rear Seat[10.1985 - 01.1990] BJ7#..LX GRAY,GRAY |
71940-90K01-03 |
US $189.28 |
||
| replacement | |||||
|
71970
|
71970
71940-90K01-13 Headrest Assy, Rear Seat[10.1985 - 01.1990] BJ7#..LX GRAY,GRAY |
71940-90K01-13 |
US $189.28 |
||
|
71970
|
71970
71940-90K01-06 Headrest Assy, Rear Seat[10.1985 - 01.1990] BJ7#..LX BROWN,BROWN |
71940-90K01-06 |
US $189.28 |
||
| replacement | |||||
|
71970
|
71970
71940-90K01-16 Headrest Assy, Rear Seat[10.1985 - 01.1990] BJ7#..LX BROWN,BROWN |
71940-90K01-16 |
US $189.28 |
||
|
72603
|
72603
72603-90K00-03 Lock Sub-Assy, Rear Seat Back, Rh[11.1984 - 08.1987] BJ7# GRAY,SHADOW GRAY |
72603-90K00-03 |
US $60.57 |
||
|
72603
|
72603
72603-90K00-06 Lock Sub-Assy, Rear Seat Back, Rh[11.1984 - 08.1987] BJ7# BROWN,SEPIA BROWN |
72603-90K00-06 |
US $60.57 |
||
| replacement | |||||
|
72603
|
72603
72603-90K00-03 Lock Sub-Assy, Rear Seat Back, Rh[11.1984 - 08.1987] BJ7# BROWN,SEPIA BROWN |
72603-90K00-03 |
US $60.57 |
||
|
72603
|
72603
72603-90K02-03 Lock Sub-Assy, Rear Seat Back, Rh[08.1987 - 01.1990] BJ7# GRAY,SHADOW GRAY |
72603-90K02-03 |
US $60.72 |
||
|
72603
|
72603
72603-90K02-06 Lock Sub-Assy, Rear Seat Back, Rh[08.1987 - 01.1990] BJ7# BROWN,SEPIA BROWN |
72603-90K02-06 |
US $60.72 |
||
| replacement | |||||
|
72603
|
72603
72603-90K02-03 Lock Sub-Assy, Rear Seat Back, Rh[08.1987 - 01.1990] BJ7# BROWN,SEPIA BROWN |
72603-90K02-03 |
US $60.72 |
||
|
72604
|
72604
72604-90K00-03 Lock Sub-Assy, Rear Seat Back, Lh[11.1984 - 08.1987] BJ7# GRAY,SHADOW GRAY |
72604-90K00-03 |
US $60.57 |
||
|
72604
|
72604
72604-90K00-06 Lock Sub-Assy, Rear Seat Back, Lh[11.1984 - 08.1987] BJ7# BROWN,SEPIA BROWN |
72604-90K00-06 |
US $60.57 |
||
| replacement | |||||
|
72604
|
72604
72604-90K00-03 Lock Sub-Assy, Rear Seat Back, Lh[11.1984 - 08.1987] BJ7# BROWN,SEPIA BROWN |
72604-90K00-03 |
US $60.57 |
||
|
72604
|
72604
72604-90K02-03 Lock Sub-Assy, Rear Seat Back, Lh[08.1987 - 01.1990] BJ7# GRAY,SHADOW GRAY |
72604-90K02-03 |
US $60.72 |
||
|
72604
|
72604
72604-90K02-06 Lock Sub-Assy, Rear Seat Back, Lh[08.1987 - 01.1990] BJ7# BROWN,SEPIA BROWN |
72604-90K02-06 |
US $60.72 |
||
| replacement | |||||
|
72604
|
72604
72604-90K02-03 Lock Sub-Assy, Rear Seat Back, Lh[08.1987 - 01.1990] BJ7# BROWN,SEPIA BROWN |
72604-90K02-03 |
US $60.72 |
||
|
72660A
|
72660A
72660-90K01
Support Assy, Rear Seat Cushion
[11.1984 - 01.1990] BJ7# |
72660-90K01 |
— | ||
|
72660E
|
72660E
90506-08003 Spring, Rear Seat Back Stopper[11.1984 - 01.1990] BJ7# |
90506-08003 |
US $2.62 |
||
|
72665
|
72665
72665-90K00 Cover, Rear Seat Back Lock, Rh[11.1984 - 01.1990] BJ7# |
72665-90K00 |
US $6.36 |
||
|
72666
|
72666
72666-90K00 Cover, Rear Seat Back Lock, Rh[11.1984 - 01.1990] BJ7# |
72666-90K00 |
US $6.36 |
||
|
72685
|
72685
72691-90K01
Striker Sub-Assy, Rear Seat Cushion Lock
[11.1984 - 01.1990] BJ7# |
72691-90K01 |
— | ||
|
72690A
|
72690A
72690-90K00-03 Strap Assy, Rear Seat Lock Release[11.1984 - 10.1986] BJ7# GRAY,GRAY |
72690-90K00-03 |
US $60.72 |
||
| replacement | |||||
|
72690A
|
72690A
72690-60010-B0
Strap Assy, Rear Seat Lock Release
[11.1984 - 10.1986] BJ7# GRAY,GRAY |
72690-60010-B0 |
— | ||
|
72690A
|
72690A
72690-90K00-06 Strap Assy, Rear Seat Lock Release[11.1984 - 10.1986] BJ7# BROWN,SEPIA BROWN |
72690-90K00-06 |
US $60.72 |
||
| replacement | |||||
|
72690A
|
72690A
72690-60010-E0 Strap Assy, Rear Seat Lock Release[11.1984 - 10.1986] BJ7# BROWN,SEPIA BROWN |
72690-60010-E0 |
US $50.38 |
||
|
72690A
|
72690A
72690-90K01-03 Strap Assy, Rear Seat Lock Release[10.1986 - 01.1990] BJ7# GRAY,GRAY |
72690-90K01-03 |
US $74.26 |
||
| replacement | |||||
|
72690A
|
72690A
72690-60010-B0
Strap Assy, Rear Seat Lock Release
[10.1986 - 01.1990] BJ7# GRAY,GRAY |
72690-60010-B0 |
— | ||
|
72690A
|
72690A
72690-90K01-06 Strap Assy, Rear Seat Lock Release[10.1986 - 01.1990] BJ7# BROWN,SEPIA BROWN |
72690-90K01-06 |
US $74.26 |
||
| replacement | |||||
|
72690A
|
72690A
72690-60010-E0 Strap Assy, Rear Seat Lock Release[10.1986 - 01.1990] BJ7# BROWN,SEPIA BROWN |
72690-60010-E0 |
US $50.38 |
||
|
78910
|
78910
78910-90K00 Cable Assy, Fold Seat Lock Control, No.1[11.1984 - 01.1990] BJ7# |
78910-90K00 |
US $26.21 |
||
|
78920
|
78920
78920-90K01
Cable Assy, Fold Seat Lock Control, No.2
[11.1984 - 01.1990] BJ7# |
78920-90K01 |
— | ||
|
78950
|
78950
78950-90K01-03
Band Assy, Fold Seat Stopper, No.1
[11.1984 - 08.1987] BJ70,71 GRAY,GRAY |
78950-90K01-03 |
— | ||
|
78950
|
78950
78950-90K01-06
Band Assy, Fold Seat Stopper, No.1
[11.1984 - 08.1987] BJ70,71 BROWN,SEPIA BROWN |
78950-90K01-06 |
— | ||
|
78950
|
78950
78950-90K07-03 Band Assy, Fold Seat Stopper, No.1[08.1987 - 01.1990] BJ70,71 GRAY,SHADOW GRAY |
78950-90K07-03 |
US $99.01 |
||
| replacement | |||||
|
78950
|
78950
78950-90K07-B0 Band Assy, Fold Seat Stopper, No.1[08.1987 - 01.1990] BJ70,71 GRAY,SHADOW GRAY |
78950-90K07-B0 |
US $99.01 |
||
|
78950
|
78950
78950-90K07-06 Band Assy, Fold Seat Stopper, No.1[08.1987 - 01.1990] BJ70,71 BROWN,SEPIA BROWN |
78950-90K07-06 |
US $99.01 |
||
| replacement | |||||
|
78950
|
78950
78950-90K07-E1 Band Assy, Fold Seat Stopper, No.1[08.1987 - 01.1990] BJ70,71 BROWN,SEPIA BROWN |
78950-90K07-E1 |
US $99.01 |
||
|
79929
|
79929
79929-90K04 Frame, Fold Seat Leg Stopper[11.1984 - 01.1990] BJ70,71 |
79929-90K04 |
US $24.46 |
||
|
8271112120
|
8271112120
82711-12120 Clamp(Rear Seat) |
82711-12120 |
US $3.40 |
||
|
9011908364
|
9011908364
90119-08364 Bolt |
90119-08364 |
US $2.48 |
||
|
9011908653
|
9011908653
90119-08653 New Genuine Part |
90119-08653 |
US $2.87 |
||
|
9011910035
|
9011910035
90119-10035 New Genuine Part |
90119-10035 |
US $2.62 |
||
|
9011910037
|
9011910037
90119-10037 BOLT |
90119-10037 |
US $2.09 |
||
|
9011910101
|
9011910101
90119-10101 BOLT |
90119-10101 |
US $3.44 |
||
|
9011910493
|
9011910493
90119-10493 BOLT W-WASHER |
90119-10493 |
US $1.97 |
||
|
9016840011
|
9016840011
90168-40011 SCREW |
90168-40011 |
US $1.93 |
||
|
9018308003
|
9018308003
90183-08003 NUT |
90183-08003 |
US $0.70 |
||
|
9020208039
|
9020208039
90202-08039 WASHER |
90202-08039 |
US $3.76 |
||
|
9024908141
|
9024908141
90249-08141
Pin, Rear Seat Cushion Leg, Rear
|
90249-08141 |
— | ||
| replacement | |||||
|
9024908141
|
9024908141
71434-95701 Pin, Rear Seat Cushion Leg, Rear |
71434-95701 |
US $4.37 |
||
|
9034109040
|
9034109040
90341-09040
New Genuine Part
|
90341-09040 |
— | ||
|
9038710090
|
9038710090
90387-10090 New Genuine Part |
90387-10090 |
US $4.95 |
||
|
9038909005
|
9038909005
90389-09005 BUSH |
90389-09005 |
US $3.67 |
||
|
9046708053
|
9046708053
90467-08053 Clamp |
90467-08053 |
US $3.14 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
||
|
9331616014
|
9331616014
93316-16014 New Genuine Part |
93316-16014 |
US $1.75 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.82 |
||
