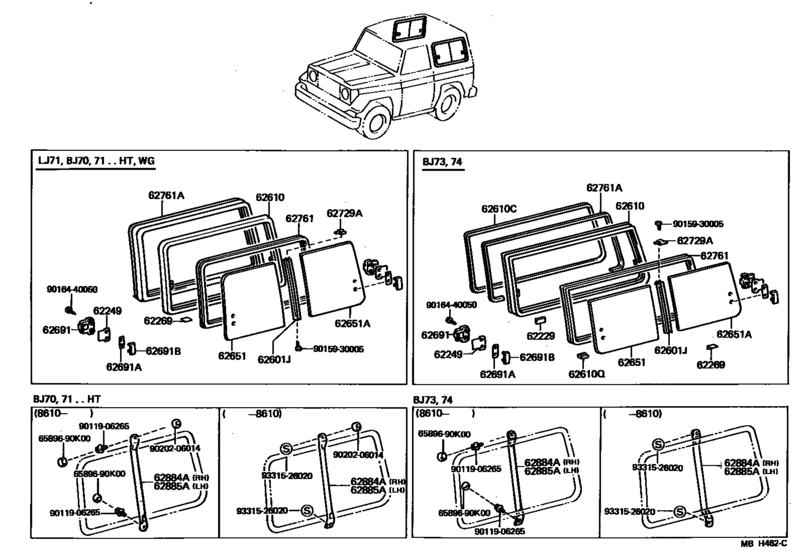

Side Window ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62249
|
62249
62249-95700 Plate, Side Window, Rh[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
62249-95700 |
from US $1.46 |
||
|
62269
|
62269
62269-90K01 Film, Side Window Frame[10.1985 - 01.1990] BJ70,71,LJ71..HT,WG |
62269-90K01 |
US $2.15 |
||
|
62601J
|
62601J
67045-90K00 Weatherstrip, Side Window Center, No.1 RH[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
67045-90K00 |
from US $10.77 |
||
|
62601J
|
62601J
67046-90K00 Weatherstrip, Side Window Center, No.1 LH[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
67046-90K00 |
from US $9.71 |
||
|
62610
|
62610
62705-90K00
Sash Assy, Side Window Outer, No.1 (For Slide Type)
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
62705-90K00 |
— | ||
| replacement | |||||
|
62610
|
62610
62705-60032 Frame Sub-Assy, Quarter Window, Rh[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
62705-60032 |
from US $134.48 |
||
|
62610
|
62610
62706-90K00
Sash Assy, Side Window Outer, No.1 (For Slide Type)
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
62706-90K00 |
— | ||
| replacement | |||||
|
62610
|
62610
62706-60022 Frame Sub-Assy, Quarter Window, Lh[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
62706-60022 |
from US $134.48 |
||
|
62651
|
62651
62711-90K03 Glass, Side Window, No.1, Front (For Slide Type)[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,RH,*TT,T=4.0 |
62711-90K03 |
US $228.59 |
||
| replacement | |||||
|
62651
|
62651
62711-60380
Glass, Quarter Window, Front Rh
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,RH,*TT,T=4.0 |
62711-60380 |
— | ||
|
62651
|
62651
62712-90K03
Glass, Side Window, No.1, Front (For Slide Type)
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,LH,*TT,T=4.0 |
62712-90K03 |
— | ||
| replacement | |||||
|
62651
|
62651
62712-60310
Glass, Quarter Window, Front Lh
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,LH,*TT,T=4.0 |
62712-60310 |
— | ||
|
62651A
|
62651A
62713-90K01 Glass, Side Window, No.1, Rear (For Slide Type)[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,RH,*TT,T=4.0 |
62713-90K01 |
US $232.96 |
||
| replacement | |||||
|
62651A
|
62651A
62713-60130
Glass, Quarter Window, Rear Rh
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,RH,*TT,T=4.0 |
62713-60130 |
— | ||
|
62651A
|
62651A
62714-90K01
Glass, Side Window, No.1, Rear (For Slide Type)
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,LH,*TT,T=4.0 |
62714-90K01 |
— | ||
| replacement | |||||
|
62651A
|
62651A
62714-60120
Glass, Quarter Window, Rear Lh
[10.1985 - 01.1990] BJ70,71,LJ71..LX,LX5 ＊ＴＴ，厚さ＝４．０,LH,*TT,T=4.0 |
62714-60120 |
— | ||
|
62691
|
62691
62910-95703 Lock, Side Window, No.1 Glass (For Slide Type)[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
62910-95703 |
from US $11.19 |
||
|
62691A
|
62691A
62792-95A00 Packing, Side Rear Window, Rh[11.1984 - 01.1990] BJ7#,LJ71..HT,WG |
62792-95A00 |
from US $1.54 |
||
|
62691B
|
62691B
62793-95704 Retainer, Side Window Lock, No.1[12.1985 - 01.1990] BJ7#,LJ71..HT,WG |
62793-95704 |
from US $6.10 |
||
|
62691B
|
62691B
62793-95J00 Retainer, Side Window Lock, No.1[11.1984 - 12.1985] BJ7#,LJ71..HT,WG |
62793-95J00 |
from US $3.40 |
||
|
62729A
|
62729A
62729-90K00 Pad, Window Center Sash[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG |
62729-90K00 |
US $3.58 |
||
|
62761
|
62761
62755-90K00
Run, Quarter Window, Rh
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
62755-90K00 |
— | ||
| replacement | |||||
|
62761
|
62761
62755-60050 Run, Quarter Window, Rh[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
62755-60050 |
from US $49.73 |
||
|
62761
|
62761
62756-90K00
Run, Quarter Window, Lh
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
62756-90K00 |
— | ||
| replacement | |||||
|
62761
|
62761
62756-60050 Run, Quarter Window, Lh[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
62756-60050 |
from US $49.73 |
||
|
62761A
|
62761A
62741-90K01
Weatherstrip, Quarter Window, Rh
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
62741-90K01 |
— | ||
| replacement | |||||
|
62761A
|
62761A
62741-60100 Weatherstrip, Quarter Window, Rh[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG RH |
62741-60100 |
from US $64.89 |
||
|
62761A
|
62761A
62742-90K01
Weatherstrip, Quarter Window, Lh
[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
62742-90K01 |
— | ||
| replacement | |||||
|
62761A
|
62761A
62742-60090 Weatherstrip, Quarter Window, Lh[11.1984 - 01.1990] BJ70,71,LJ71..HT,WG LH |
62742-60090 |
US $85.28 |
||
|
62884A
|
62884A
62884-90K01
Guard, Quarter Window, Rh
[11.1984 - 01.1990] BJ70,71..HT |
62884-90K01 |
— | ||
|
62885A
|
62885A
62884-90K01
Guard, Quarter Window, Rh
[11.1984 - 01.1990] BJ70,71..HT |
62884-90K01 |
— | ||
|
6589690K00
|
6589690K00
65896-90K00 Cap, Cover Top Set Bolt |
65896-90K00 |
from US $3.94 |
||
|
9011906265
|
9011906265
90119-06265 BOLT |
90119-06265 |
from US $1.25 |
||
|
9015930005
|
9015930005
90159-30005 SCREW |
90159-30005 |
US $1.61 |
||
|
9016440050
|
9016440050
90164-40050 SCREW |
90164-40050 |
from US $0.78 |
||
|
9020206014
|
9020206014
90202-06014
New Genuine Part
|
90202-06014 |
— | ||
|
9331526020
|
9331526020
93315-26020 New Genuine Part |
93315-26020 |
US $1.02 |
||
