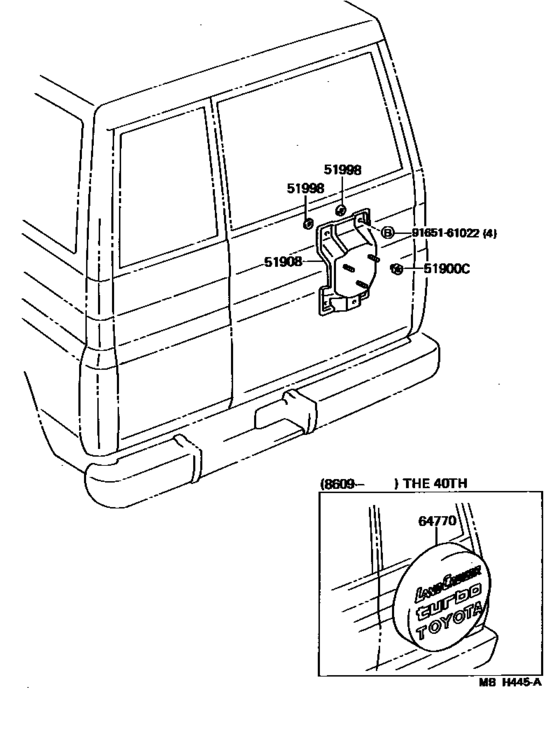

Spare Wheel Carrier ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51900C
|
51900C
90942-01007 Nut, Hub (For Axle)[11.1984 - 01.1990] BJ7#,LJ71 |
90942-01007 |
from US $1.92 |
||
|
51908
|
51908
51908-90K01
Bracket Sub-Assy, Spare Wheel Carrier
[11.1984 - 11.1985] BJ7#,LJ71 |
51908-90K01 |
— | ||
| replacement | |||||
|
51908
|
51908
51908-60070
Bracket Sub-Assy, Spare Wheel Carrier
[11.1984 - 11.1985] BJ7#,LJ71 |
51908-60070 |
— | ||
|
51908
|
51908
51908-90K05
Bracket Sub-Assy, Spare Wheel Carrier
[11.1985 - 01.1990] BJ7#,LJ71 |
51908-90K05 |
— | ||
| replacement | |||||
|
51908
|
51908
51908-60070
Bracket Sub-Assy, Spare Wheel Carrier
[11.1985 - 01.1990] BJ7#,LJ71 |
51908-60070 |
— | ||
|
51998
|
51998
51998-90K00
Pad, Spare Wheel Bracket
[11.1984 - 09.1989] BJ7#,LJ71 |
51998-90K00 |
— | ||
| replacement | |||||
|
51998
|
51998
51998-90K01 Pad, Spare Wheel Bracket[11.1984 - 09.1989] BJ7#,LJ71 |
51998-90K01 |
US $4.12 |
||
|
51998
|
51998
51998-90K01 Pad, Spare Wheel Bracket[09.1989 - 01.1990] BJ7#,LJ71 |
51998-90K01 |
US $4.12 |
||
|
9165161022
|
9165161022
91651-61022 Bolt(For Transaxle & Engine Setting) |
91651-61022 |
US $1.10 |
||
