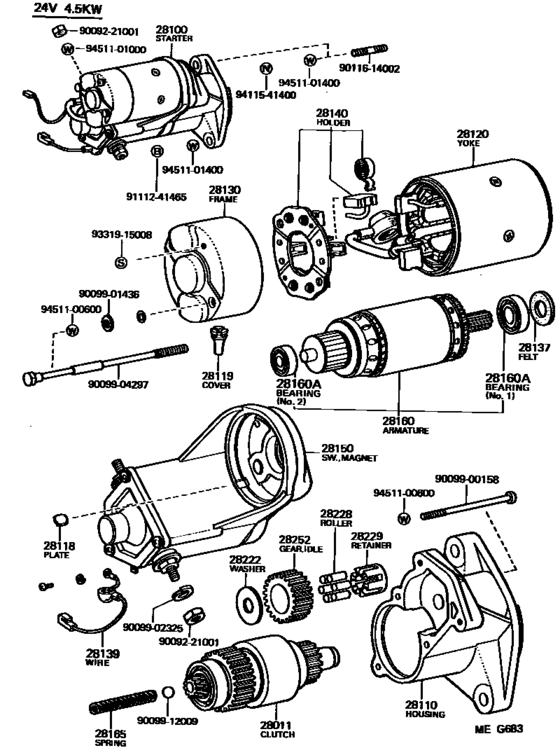

Starter ([11.1984 - ] (8411- )13BT,3B) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-54010 Clutch Sub-Assy, Starter[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28011-54010 |
from US $184.93 |
||
|
28100
|
28100
28100-56180
Starter Assy
[11.1984 - 08.1986] 13BT,3B..BJ7# 24V 4.5KW |
28100-56180 |
— | ||
| replacement | |||||
|
28100
|
28100
28100-56181
Starter Assy
[11.1984 - 08.1986] 13BT,3B..BJ7# 24V 4.5KW |
28100-56181 |
— | ||
|
28100
|
28100
28100-56181
Starter Assy
[08.1986 - 01.1990] 13BT,3B..BJ7# ２４Ｖ ４．５ＫＷ,24V 4.5KW |
28100-56181 |
— | ||
|
28110
|
28110
28115-56180
Housing Assy, Starter Drive
[11.1984 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28115-56180 |
— | ||
|
28118
|
28118
28118-77090
Plate(For Starter Yoke)
[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28118-77090 |
— | ||
|
28119
|
28119
28119-77090
Cover, Starter End Frame
[11.1984 - 02.1987] 13BT,3B..BJ7# 24V 4.5KW |
28119-77090 |
— | ||
| replacement | |||||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[11.1984 - 02.1987] 13BT,3B..BJ7# 24V 4.5KW |
28199-77090 |
— | ||
|
28119
|
28119
28199-77090
Cover, Starter End Frame
[02.1987 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28199-77090 |
— | ||
|
28120
|
28120
28120-56071 Yoke Assy, Starter[08.1987 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28120-56071 |
US $248.10 |
||
|
28120
|
28120
28120-77090
Yoke Assy, Starter
[11.1984 - 08.1987] 13BT,3B..BJ7# 24V 4.5KW |
28120-77090 |
— | ||
|
28130
|
28130
28130-54010 Frame Assy, Starter Commutator End[11.1984 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28130-54010 |
US $74.26 |
||
| replacements | |||||
|
28130
|
28130
28130-56300
Frame Assy, Starter Commutator End
[11.1984 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28130-56300 |
— | ||
|
28130
|
28130
28199-46080 Cover, Starter End Frame[11.1984 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28199-46080 |
from US $2.97 |
||
|
28130
|
28130
90099-04207
New Genuine Part
[11.1984 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
90099-04207 |
— | ||
|
28137
|
28137
90099-02205
Washer, Felt, Starter
[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
90099-02205 |
— | ||
|
28139
|
28139
28139-47070
Wire, Lead, No.1(For Starter)
[11.1984 - 08.1986] 13BT,3B..BJ7# 24V 4.5KW |
28139-47070 |
— | ||
| replacement | |||||
|
28139
|
28139
28139-56160
Wire, Lead, No.1(For Starter)
[11.1984 - 08.1986] 13BT,3B..BJ7# 24V 4.5KW |
28139-56160 |
— | ||
|
28139
|
28139
28139-77110
Wire, Lead, No.1(For Starter)
[08.1986 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28139-77110 |
— | ||
|
28140
|
28140
28140-77090 Holder Assy, Starter Brush[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28140-77090 |
from US $55.39 |
||
|
28150
|
28150
28150-56180 Switch Assy, Magnet Starter[11.1984 - 08.1986] 13BT,3B..BJ7# 24V 4.5KW |
28150-56180 |
US $436.80 |
||
|
28150
|
28150
28150-56181 Switch Assy, Magnet Starter[08.1986 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28150-56181 |
US $436.80 |
||
|
28160
|
28160
28160-77090 Armature Assy, Starter[11.1984 - 01.1990] 13BT,3B..BJ7# 24V 4.5KW |
28160-77090 |
US $338.96 |
||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW,NO.1 |
90099-10107 |
from US $4.72 |
||
|
28160A
|
28160A
90099-10119 Bearing, Starter Armature[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW,NO.2 |
90099-10119 |
from US $10.18 |
||
|
28165
|
28165
28165-77090
Spring, Starter Magnet Switch Return
[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28165-77090 |
— | ||
|
28222
|
28222
28222-77090
Washer, Starter Idle Gear Clutch
[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28222-77090 |
— | ||
|
28228
|
28228
28228-56080
Roller, Starter Idle Gear Clutch
[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28228-56080 |
— | ||
|
28229
|
28229
28229-56080
Retainer, Starter Idle Gear
[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28229-56080 |
— | ||
|
28252
|
28252
28254-77090
Pinion, Starter Drive
[11.1984 - 01.1990] 13BT,3B,2LT..BJ7#,LJ71 12V 2.5KW,24V 4.5KW |
28254-77090 |
— | ||
|
9009221001
|
9009221001
90092-21001 NUT |
90092-21001 |
US $0.42 |
||
|
9009900158
|
9009900158
90099-00158
SCREW
|
90099-00158 |
— | ||
|
9009901436
|
9009901436
90099-01436
New Genuine Part
|
90099-01436 |
— | ||
|
9009902325
|
9009902325
90099-02325 WASHER |
90099-02325 |
from US $0.28 |
||
|
9009904297
|
9009904297
90099-04297
BOLT
|
90099-04297 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9011614002
|
9011614002
90116-14002
New Genuine Part
|
90116-14002 |
— | ||
|
9111241465
|
9111241465
91112-41465 BOLT |
91112-41465 |
US $4.22 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $3.05 |
||
|
9411541400
|
9411541400
94115-41400 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-41400 |
US $1.22 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $2.15 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.97 |
||
|
9451101400
|
9451101400
94511-01400
WASHER
|
94511-01400 |
— | ||
