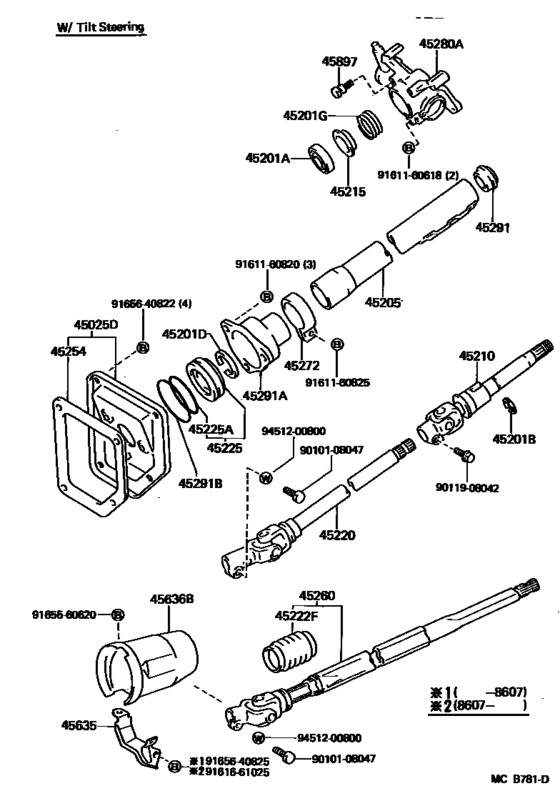

Steering Column & Shaft ([10.1985 - ] (8411-8510) ; (8510- )LX) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-60050 Cover, Steering Intermediate Shaft[11.1984 - 01.1990] BJ7# |
45025-60050 |
US $33.63 |
||
|
45201A
|
45201A
90363-28001 Bearing(For Steering Main Shaft)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
90363-28001 |
from US $24.11 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[11.1984 - 01.1990] BJ7#,LJ71 厚さ＝１．２０,FLAT TYPE |
90520-17042 |
from US $0.80 |
||
|
45201D
|
45201D
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
96152-00300 |
US $0.70 |
||
|
45201G
|
45201G
90501-45011 Spring, Compression(For Steering Main Shaft)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
90501-45011 |
US $7.69 |
||
|
45205
|
45205
45205-60120 Tube Sub-Assy, Steering Column[10.1985 - 01.1990] BJ7#..LX |
45205-60120 |
US $47.61 |
||
|
45210
|
45210
45210-60060
Shaft Assy, Steering Main
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45210-60060 |
— | ||
| replacement | |||||
|
45210
|
45210
45210-60061 Shaft Assy, Steering Main[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45210-60061 |
from US $233.73 |
||
|
45215
|
45215
45215-22011 Collar, Main Shaft Bearing Thrust[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45215-22011 |
from US $4.89 |
||
|
45220
|
45220
45220-60090
Shaft Assy, Steering Intermediate
[10.1985 - 01.1990] BJ7#..LX |
45220-60090 |
— | ||
| replacement | |||||
|
45220
|
45220
45220-60091
Shaft Assy, Steering Intermediate
[10.1985 - 01.1990] BJ7#..LX |
45220-60091 |
— | ||
|
45222F
|
45222F
45222-60030
Cover, Steering Gear Dust
[11.1984 - 11.1985] BJ7#,LJ71 |
45222-60030 |
— | ||
|
45222F
|
45222F
45222-60031 Cover, Steering Gear Dust[11.1985 - 01.1990] BJ7#,LJ71 |
45222-60031 |
from US $5.91 |
||
|
45225
|
45225
45225-60010 Bearing(For Steering Main Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
45225-60010 |
from US $46.32 |
||
|
45225A
|
45225A
96711-24053 Ring, O(For Hydraulic Cylinder Body)[11.1984 - 01.1990] BJ7#,LJ71 |
96711-24053 |
US $4.02 |
||
|
45254
|
45254
45254-60050 Shield, Steering Column Hole[11.1984 - 01.1990] BJ7#,LJ71 |
45254-60050 |
US $10.48 |
||
|
45260
|
45260
45260-60040
Shaft Assy, Steering Intermediate, No.2
[11.1984 - 01.1990] BJ7# |
45260-60040 |
— | ||
|
45272
|
45272
45272-35020
Clamp, Steering Column, Lower
[11.1984 - 01.1990] BJ7# |
45272-35020 |
— | ||
|
45280A
|
45280A
45280-60170
Bracket Assy, Steering Column, Upper
[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
45280-60170 |
— | ||
| replacement | |||||
|
45280A
|
45280A
45280-60180
Bracket Assy, Steering Column, Upper
[10.1985 - 08.1986] BJ7#,LJ71..LX,LX5,SX5 |
45280-60180 |
— | ||
|
45280A
|
45280A
45280-60201
Bracket Assy, Steering Column, Upper
[08.1986 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45280-60201 |
— | ||
| replacement | |||||
|
45280A
|
45280A
45280-60181
Bracket Assy, Steering Column, Upper
[08.1986 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45280-60181 |
— | ||
|
45291
|
45291
45282-60010 Seal, Main Shaft Upper Dust[10.1985 - 01.1990] BJ7#..LX |
45282-60010 |
US $9.17 |
||
|
45291A
|
45291A
45291-60041
Support, Steering Column Tube
[09.1985 - 01.1990] BJ7# |
45291-60041 |
— | ||
|
45291B
|
45291B
90301-61002 Ring, O (For Axle Bearing)[09.1985 - 01.1990] BJ7# |
90301-61002 |
from US $2.83 |
||
|
45635
|
45635
45635-60010
Support, Intermediate Link Joint Protector
[11.1984 - 01.1990] BJ7# |
45635-60010 |
— | ||
|
45636B
|
45636B
45636-60051 Protector, Intermediate Link Joint[11.1984 - 01.1990] BJ7#,LJ71 |
45636-60051 |
US $7.69 |
||
|
45897
|
45897
45897-14010
Bolt, Hexagon(For Steering Column Bracket)
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45897-14010 |
— | ||
| replacement | |||||
|
45897
|
45897
45897-12030 Bolt, Hexagon(For Steering Column Bracket)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45897-12030 |
US $8.56 |
||
|
9010108047
|
9010108047
90101-08047 Bolt, Hexagon(For Steering Sliding Yoke Set) |
90101-08047 |
US $1.89 |
||
| replacement | |||||
|
9010108047
|
9010108047
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.43 |
||
|
9011908042
|
9011908042
90119-08042 Bolt(For Power Steering Pressure Control Valve) |
90119-08042 |
US $1.93 |
||
|
9161160618
|
9161160618
91611-60618 Bolt(For Oil Receiver Pipe) |
91611-60618 |
US $2.15 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.08 |
||
|
9161661025
|
9161661025
91616-61025
Bolt (For Control Shaft Cover)
|
91616-61025 |
— | ||
| replacement | |||||
|
9161661025
|
9161661025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.93 |
||
|
9165560620
|
9165560620
91655-60620 New Genuine Part |
91655-60620 |
US $1.89 |
||
| replacement | |||||
|
9165560620
|
9165560620
91651-60616 BOLT |
91651-60616 |
from US $0.91 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.08 |
||
|
9165640825
|
9165640825
91656-40825
New Genuine Part
|
91656-40825 |
— | ||
| replacement | |||||
|
9165640825
|
9165640825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.82 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
