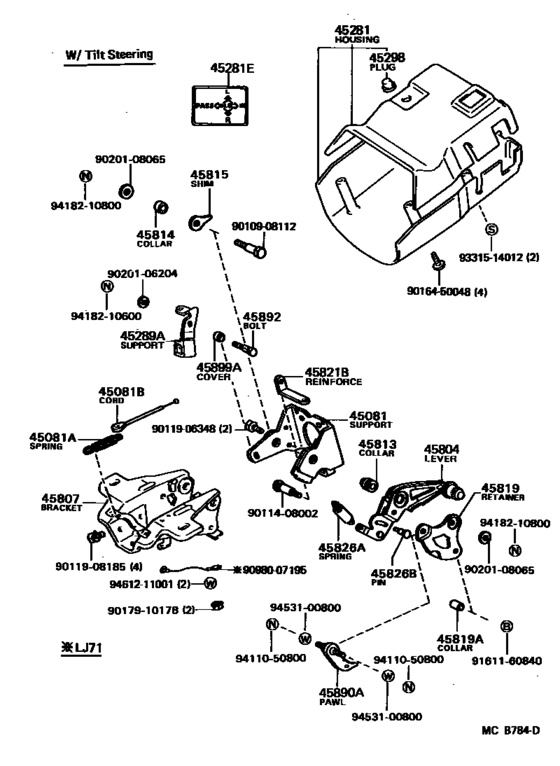

Steering Column & Shaft ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45081
|
45081
45081-22020 Support Sub-Assy, Tilt Steering[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45081-22020 |
US $56.96 |
||
|
45081A
|
45081A
90506-23009
Spring, Tension(For Tilt Steering)
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
90506-23009 |
— | ||
|
45081B
|
45081B
90945-02034 Cord(For Tilt Steering)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 長さ＝１０７．５ |
90945-02034 |
US $6.12 |
||
|
45281
|
45281
45286-60927-03 Housing, Steering Column (GRAY,SHADOW GRAY)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 GRAY,SHADOW GRAY |
45286-60927-03 |
US $85.28 |
||
| replacement | |||||
|
45281
|
45281
45286-60927-13 Cover, Steering Column (BLUISH GRAY)BLUISH GRAY [10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 GRAY,SHADOW GRAY |
45286-60927-13 |
from US $85.28 |
||
|
45281
|
45281
45286-60927-06 Housing, Steering Column (BROWN,SEPIA BROWN)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 BROWN,SEPIA BROWN |
45286-60927-06 |
US $85.28 |
||
| replacement | |||||
|
45281
|
45281
45286-60927-13 Cover, Steering Column (BLUISH GRAY)BLUISH GRAY [10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 BROWN,SEPIA BROWN |
45286-60927-13 |
from US $85.28 |
||
|
45281E
|
45281E
45283-22010 Plate, Safety Caution[11.1984 - 01.1990] BJ7#,LJ71 |
45283-22010 |
US $2.69 |
||
|
45289A
|
45289A
45289-22020 Support, Steering Column Cover[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45289-22020 |
US $6.99 |
||
|
45804
|
45804
45804-22010 Lever Sub-Assy, Steering Tilt[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45804-22010 |
US $29.56 |
||
|
45807
|
45807
45807-60060 Bracket Sub-Assy, Steering Column Upper Support[10.1985 - 01.1990] BJ7#..LX |
45807-60060 |
US $77.17 |
||
|
45813
|
45813
45813-22010
Collar, Tilt Steering Support, No.1
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 外径＝１７．９９６−１８．００３,OD=17.996-18.003 |
45813-22010 |
— | ||
|
45813
|
45813
45813-22020
Collar, Tilt Steering Support, No.1
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 外径＝１８．００３−１８．０１０,OD=18.003-18.010 |
45813-22020 |
— | ||
|
45813
|
45813
45813-22030
Collar, Tilt Steering Support, No.1
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 外径＝１８．０１０−１８．０１７,OD=18.010-18.017 |
45813-22030 |
— | ||
|
45813
|
45813
45813-22040
Collar, Tilt Steering Support, No.1
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 外径＝１８．０１７−１８．０２４,OD=18.017-18.024 |
45813-22040 |
— | ||
|
45813
|
45813
45813-22050
Collar, Tilt Steering Support, No.1
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 外径＝１７．９８９−１７．９９６,OD=17.989-17.996 |
45813-22050 |
— | ||
|
45814
|
45814
45814-22010 Collar, Tilt Steering Support, No.2[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 外径＝１７．９８２−１８．０００,OD=17.982-18.000 |
45814-22010 |
US $10.83 |
||
|
45814
|
45814
45814-22020 Collar, Tilt Steering Support, No.2[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 外径＝１８．０００−１８．０１８,OD=18.000-18.018 |
45814-22020 |
US $12.06 |
||
|
45815
|
45815
45815-22060 Shim, Tilt Steering Support[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 厚さ＝０．２,T=0.2 |
45815-22060 |
US $3.67 |
||
|
45815
|
45815
45815-22070
Shim, Tilt Steering Support
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 厚さ＝０．５,T=0.5 |
45815-22070 |
— | ||
|
45815
|
45815
45815-22080
Shim, Tilt Steering Support
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 厚さ＝０．８,T=0.8 |
45815-22080 |
— | ||
|
45815
|
45815
45815-22090
Shim, Tilt Steering Support
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 厚さ＝１．４,T=1.4 |
45815-22090 |
— | ||
|
45815
|
45815
45815-22100
Shim, Tilt Steering Support
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 厚さ＝１．８,T=1.8 |
45815-22100 |
— | ||
|
45819
|
45819
45819-22011 Retainer, Tilt Lever[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45819-22011 |
US $5.59 |
||
|
45819A
|
45819A
90387-08002 Collar(For Tilt Lever Retainer)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
90387-08002 |
US $2.80 |
||
|
45821B
|
45821B
45821-22010 Reinforce, Tilt Steering Support[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45821-22010 |
US $6.99 |
||
|
45826A
|
45826A
90507-14001
Spring, Tension(For Steering Tilt Lever)
[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
90507-14001 |
— | ||
|
45826B
|
45826B
72538-12010 Pin(For Steering Tilt Lever)[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
72538-12010 |
US $3.35 |
||
|
45890A
|
45890A
45890-22050 Pawl, Tilt Steering[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45890-22050 |
US $12.75 |
||
|
45892
|
45892
45898-22010 Bolt, Tilt Steering Support Stopper[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45898-22010 |
US $5.59 |
||
|
45899A
|
45899A
45899-22020 Cover, Tilt Steering Support Stopper[10.1985 - 01.1990] BJ7#,LJ71..LX,LX5,SX5 |
45899-22020 |
US $5.59 |
||
|
9010908112
|
9010908112
90109-08112 New Genuine Part |
90109-08112 |
US $1.49 |
||
|
9011408002
|
9011408002
90114-08002 New Genuine Part |
90114-08002 |
US $3.14 |
||
|
9011906348
|
9011906348
90119-06348
New Genuine Part
|
90119-06348 |
— | ||
| replacement | |||||
|
9011906348
|
9011906348
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
9011908185
|
9011908185
90119-08185 New Genuine Part |
90119-08185 |
US $1.75 |
||
| replacement | |||||
|
9011908185
|
9011908185
90119-08165 New Genuine Part |
90119-08165 |
US $2.62 |
||
|
9016450048
|
9016450048
90164-50048 SCREW |
90164-50048 |
from US $0.84 |
||
|
9017910178
|
9017910178
90179-10178 New Genuine Part |
90179-10178 |
US $1.75 |
||
|
9020106204
|
9020106204
90201-06204 Washer, Plate(For Steering Tilt Lever) |
90201-06204 |
US $2.33 |
||
|
9020108065
|
9020108065
90201-08065 Washer, Plate(For Control Select Lever) |
90201-08065 |
US $1.08 |
||
|
9098007195
|
9098007195
90980-07195 Cable, Bond(For Horn Earth) |
90980-07195 |
US $17.33 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
US $2.33 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.76 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.43 |
||
|
9418210600
|
9418210600
94182-10600 Nut, Tilt Steering Adjusting, No.1 |
94182-10600 |
US $1.89 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.35 |
||
|
9453100800
|
9453100800
94531-00800 Washer (For Transfer Shift Outer Lever) |
94531-00800 |
from US $0.84 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
