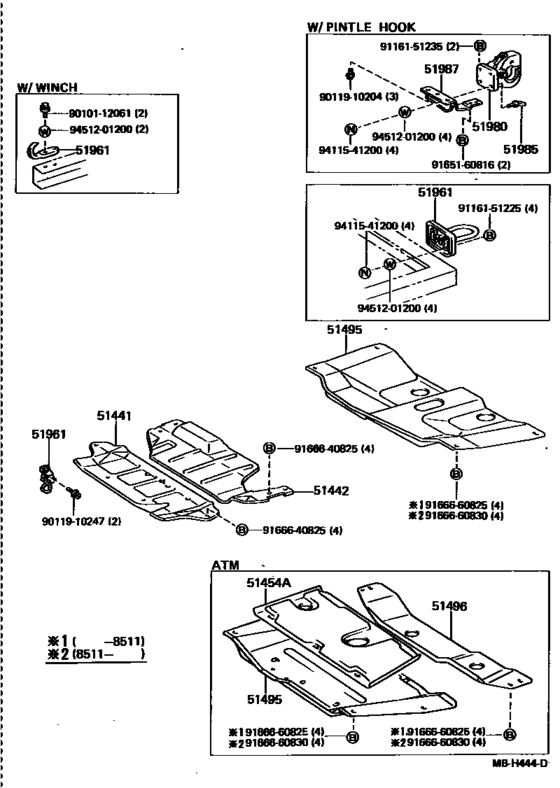

Suspension Crossmember & Under Cover ([11.1984 - ] (8411- )BJ7#) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51441
|
51441
51405-60050
Cover, Engine Under, No.1
[11.1984 - 01.1990] BJ7# |
51405-60050 |
— | ||
|
51442
|
51442
51442-60031
Cover, Engine Under, No.2
[10.1985 - 01.1990] BJ7# |
51442-60031 |
— | ||
|
51495
|
51495
51495-60130 Cover, Transmission Under[11.1984 - 01.1990] BJ7#..MTM |
51495-60130 |
US $224.22 |
||
|
51961
|
51961
51961-60010 Hook, No.1[11.1984 - 08.1987] BJ7#,LJ71 FR,W/WINCH |
51961-60010 |
US $33.43 |
||
|
51961
|
51961
51961-60050 Hook, No.1[11.1984 - 01.1990] BJ7# FR |
51961-60050 |
US $33.92 |
||
|
51961
|
51961
51961-60080 Hook, No.1[11.1984 - 01.1990] BJ7#,LJ71 RR |
51961-60080 |
US $39.89 |
||
| replacement | |||||
|
51961
|
51961
51961-60081 Hook, No.3[11.1984 - 01.1990] BJ7#,LJ71 RR |
51961-60081 |
from US $46.03 |
||
|
51980
|
51980
51980-60010
Hook Assy, Pintle
[11.1984 - 01.1990] BJ7#,LJ71 |
51980-60010 |
— | ||
| replacements | |||||
|
51980
|
51980
51980-60012 Hook Assy, Pintle[11.1984 - 01.1990] BJ7#,LJ71 |
51980-60012 |
from US $235.20 |
||
|
51980
|
51980
90119-12263 BOLT, WWASHER[11.1984 - 01.1990] BJ7#,LJ71 |
90119-12263 |
from US $1.54 |
||
|
51980
|
51980
90201-12019 WASHER[11.1984 - 01.1990] BJ7#,LJ71 |
90201-12019 |
from US $1.10 |
||
|
51985
|
51985
51985-60011 Hook, Eyelet Pintle[11.1984 - 01.1990] BJ7#,LJ71 |
51985-60011 |
from US $12.72 |
||
|
51987
|
51987
51987-60020 Bracket, Pintle Hook[11.1984 - 01.1990] BJ7#,LJ71 |
51987-60020 |
US $23.59 |
||
|
9010112061
|
9010112061
90101-12061
New Genuine Part
|
90101-12061 |
— | ||
|
9011910204
|
9011910204
90119-10204 Bolt, No.1 (For Center Support Bearing) |
90119-10204 |
US $3.40 |
||
|
9011910247
|
9011910247
90119-10247 BOLT |
90119-10247 |
US $3.58 |
||
|
9116151225
|
9116151225
91161-51225
New Genuine Part
|
91161-51225 |
— | ||
|
9116151235
|
9116151235
91161-51235
New Genuine Part
|
91161-51235 |
— | ||
| replacement | |||||
|
9116151235
|
9116151235
91162-61235
New Genuine Part
|
91162-61235 |
— | ||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $0.99 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 BOLT |
90080-11396 |
US $3.32 |
||
|
9166640825
|
9166640825
91666-40825
New Genuine Part
|
91666-40825 |
— | ||
| replacement | |||||
|
9166640825
|
9166640825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
|
9166660825
|
9166660825
91666-60825
New Genuine Part
|
91666-60825 |
— | ||
| replacement | |||||
|
9166660825
|
9166660825
91661-60825 New Genuine Part |
91661-60825 |
US $2.69 |
||
|
9166660830
|
9166660830
91666-60830 New Genuine Part |
91666-60830 |
US $2.18 |
||
| replacement | |||||
|
9166660830
|
9166660830
91661-60830 Bolt |
91661-60830 |
from US $1.61 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.95 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.70 |
||
