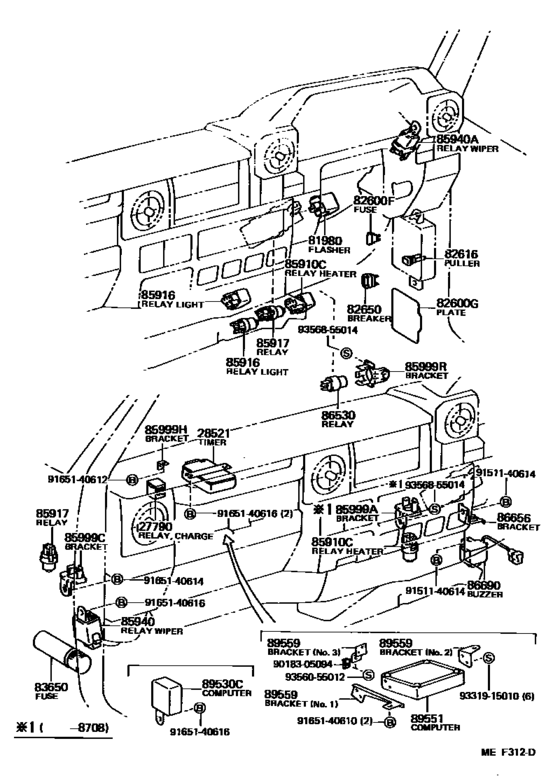

Switch & Relay & Computer ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27790
|
27790
27790-57010
Relay Assy, Charge Lamp
[10.1985 - 01.1990] 13BT..BJ71,74 |
27790-57010 |
— | ||
|
28521
|
28521
28521-58010 Timer, Preheating[10.1985 - 08.1987] 13BT..BJ71,74 |
28521-58010 |
US $633.36 |
||
|
28521
|
28521
28521-58030
Timer, Preheating
[08.1987 - 01.1990] 13BT..BJ71,74 |
28521-58030 |
— | ||
|
81980
|
81980
81980-36060 Flasher Assy, Turn Signal[11.1984 - 01.1990] BJ7# |
81980-36060 |
US $129.56 |
||
|
82600F
|
82600F
90982-09002 Fusible Link[11.1984 - 01.1990] BJ7#,LJ71 １０Ａ,10A |
90982-09002 |
from US $0.80 |
||
|
82600F
|
82600F
90982-09003 Fusible Link[11.1984 - 01.1990] BJ7#,LJ71 １５Ａ,15A |
90982-09003 |
from US $0.87 |
||
|
82600F
|
82600F
90982-09004 Fusible Link[11.1984 - 01.1990] BJ7#,LJ71 ２０Ａ,20A |
90982-09004 |
from US $0.84 |
||
|
82600F
|
82600F
90982-09005 Fuse, Fuse Block[11.1984 - 01.1990] BJ7#,LJ71 ７．５Ａ,7.5A |
90982-09005 |
from US $0.97 |
||
|
82600G
|
82600G
82683-90K04
Plate, Caution(For Fuse)
[10.1985 - 01.1990] BJ7#,LJ71 |
82683-90K04 |
— | ||
|
82616
|
82616
82616-12010 Lever, Fuse[11.1984 - 01.1990] BJ7#,LJ71 |
82616-12010 |
US $3.40 |
||
|
82650
|
82650
82650-20011 Breaker Assy, Wiring Circuit, No.1[11.1984 - 01.1990] BJ7#,LJ71 ３０Ａ,30A |
82650-20011 |
US $15.77 |
||
|
82650
|
82650
82650-35010 Breaker Assy, Wiring Circuit, No.1[11.1984 - 01.1990] BJ7#,LJ71 ２０Ａ,20A |
82650-35010 |
US $14 |
||
|
83650
|
83650
90986-01003
Fusee
[11.1984 - 01.1990] BJ7#,LJ71 |
90986-01003 |
— | ||
|
85910C
|
85910C
85913-90K00 Relay Assy (For Heater Blower Motor)[11.1984 - 01.1990] BJ7# FR HEATER |
85913-90K00 |
from US $71.40 |
||
|
85910C
|
85910C
90987-02005 Relay, Ignition, No.1[11.1984 - 01.1990] BJ7# RR HEATER |
90987-02005 |
from US $28.80 |
||
|
85916
|
85916
90987-01004 Relay, Heater Pump[11.1984 - 01.1990] BJ7# TAIL LAMP |
90987-01004 |
US $35.78 |
||
|
85916
|
85916
90987-02007 Relay, Light Control[11.1984 - 01.1990] BJ7# HEADLAMP |
90987-02007 |
from US $34.64 |
||
|
85917
|
85917
90987-03002 Relay, Turbo Indicator[11.1984 - 01.1990] BJ7# |
90987-03002 |
US $22.85 |
||
|
85940
|
85940
85940-90K03
Relay Assy, Windshield Wiper
[10.1985 - 01.1990] BJ7# |
85940-90K03 |
— | ||
|
85999A
|
85999A
85999-12050
Bracket, Main Relay
[11.1984 - 08.1987] BJ7#,LJ71 |
85999-12050 |
— | ||
|
85999C
|
85999C
85999-12050
Bracket, Main Relay
[11.1984 - 01.1990] BJ7#,LJ71 |
85999-12050 |
— | ||
|
85999H
|
85999H
85999-89101 Bracket Sub-Assy, Flasher[10.1985 - 01.1990] BJ71,74 |
85999-89101 |
US $2.77 |
||
|
85999R
|
85999R
85999-12050
Bracket, Main Relay
[08.1987 - 01.1990] BJ7# |
85999-12050 |
— | ||
|
86530
|
86530
90987-01004 Relay, Heater Pump[08.1987 - 01.1990] BJ7# |
90987-01004 |
US $35.78 |
||
|
86656
|
86656
86659-90K00 Bracket, Buzzer[11.1984 - 01.1990] BJ7#,LJ71 |
86659-90K00 |
US $7.72 |
||
|
86690
|
86690
86650-90K02 Buzzer Assy, Speed Indicator[10.1985 - 01.1990] BJ7# |
86650-90K02 |
US $43.24 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.91 |
||
|
9151140614
|
9151140614
91511-40614 New Genuine Part |
91511-40614 |
US $1.89 |
||
| replacement | |||||
|
9151140614
|
9151140614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.67 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.87 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.95 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.76 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.72 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.43 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9356055012
|
9356055012
93560-55012 New Genuine Part |
93560-55012 |
US $2.15 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.48 |
||
