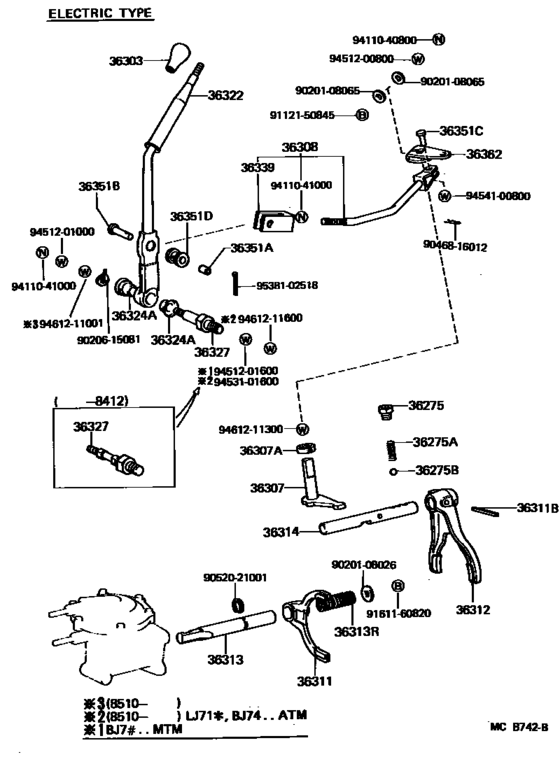

Transfer Lever & Shift Rod ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36275
|
36275
90341-15001 Plug, Shift Detent Ball Spring[11.1984 - 01.1990] BJ7#,LJ71 |
90341-15001 |
from US $6.04 |
||
|
36275A
|
36275A
90501-14029
Spring, Compression (For Shift Detent Ball Low Side)
[11.1984 - 06.1988] BJ7#,LJ71 |
90501-14029 |
— | ||
| replacement | |||||
|
36275A
|
36275A
90501-16115 Spring, Compression (For Shift Detent Ball)[11.1984 - 06.1988] BJ7#,LJ71 |
90501-16115 |
from US $1.61 |
||
|
36275A
|
36275A
90501-16115 Spring, Compression (For Shift Detent Ball)[06.1988 - 01.1990] BJ7#,LJ71 長さ＝１７．７ |
90501-16115 |
from US $1.61 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[11.1984 - 01.1990] BJ7#,LJ71 外径＝９．５２，スチール |
90360-10003 |
from US $1.16 |
||
|
36303
|
36303
36303-60130
Knob Sub-Assy, Shift Lever
[11.1984 - 01.1990] BJ7#,LJ71 |
36303-60130 |
— | ||
| replacement | |||||
|
36303
|
36303
36303-60130-C0
Knob Sub-Assy, Shift Lever (Black)
[11.1984 - 01.1990] BJ7#,LJ71 |
36303-60130-C0 |
— | ||
|
36307
|
36307
36307-60040 Lever Sub-Assy, High & Low Shift Inner[11.1984 - 01.1990] BJ7#,LJ71 |
36307-60040 |
US $14.50 |
||
|
36307A
|
36307A
90313-13001 Seal, Oil(For Shift Lever Shaft)[11.1984 - 01.1990] BJ7#,LJ71 |
90313-13001 |
from US $2.87 |
||
|
36308
|
36308
36308-60080
Rod Sub-Assy, High & Low Shift
[03.1985 - 01.1990] BJ7#..MTM |
36308-60080 |
— | ||
|
36311
|
36311
36311-60041 Fork, Transfer Gear Shift, No.1[11.1984 - 01.1990] BJ7#,LJ71 |
36311-60041 |
from US $45.37 |
||
|
36311B
|
36311B
90254-05016 Pin, Slotted Spring(For Shift Lever Shaft Set)[11.1984 - 01.1990] BJ7#,LJ71 長さ＝２５．５ |
90254-05016 |
from US $1.90 |
||
|
36312
|
36312
36312-60040 Fork, Transfer Gear Shift, No.2[11.1984 - 01.1990] BJ7#,LJ71 |
36312-60040 |
US $54.51 |
||
|
36313
|
36313
36313-60070 Shaft, Transfer Front Drive Shift[11.1984 - 01.1990] BJ7#,LJ71 |
36313-60070 |
US $59.40 |
||
|
36313R
|
36313R
90501-29003 Spring, Compression (For C-3 Accumulator Piston)[11.1984 - 01.1990] BJ7#,LJ71 |
90501-29003 |
US $4.66 |
||
|
36314
|
36314
36314-60040 Shaft, Transfer High And Low Shift Fork[11.1984 - 01.1990] BJ7#,LJ71 |
36314-60040 |
US $33.55 |
||
|
36322
|
36322
36360-60160
Lever, Transfer High & Low Shift
[10.1985 - 01.1990] BJ7# |
36360-60160 |
— | ||
|
36324A
|
36324A
36324-60050 Bush (For Front Drive Shift Link Lever)[12.1984 - 01.1990] BJ7#,LJ71 |
36324-60050 |
from US $1.37 |
||
|
36327
|
36327
36327-60031 Shaft, Transfer Shift Lever[12.1984 - 01.1990] BJ7#,LJ71 |
36327-60031 |
US $16.42 |
||
|
36339
|
36339
36338-60030 Clevis, Transfer Shift Rod[03.1985 - 01.1990] BJ7#,LJ71 |
36338-60030 |
US $29.70 |
||
|
36351A
|
36351A
90560-10406 Spacer (For High & Low Shift Rod)[11.1984 - 01.1990] BJ7#,LJ71 |
90560-10406 |
US $2.62 |
||
|
36351B
|
36351B
90240-10157 Pin (For High & Low Shift Rod)[03.1985 - 01.1990] BJ7#,LJ71..MTM L=31.5 |
90240-10157 |
US $1.97 |
||
|
36351C
|
36351C
90240-08128 Pin (For High & Low Shift Rod)[11.1984 - 01.1990] BJ7#,LJ71 |
90240-08128 |
US $1.14 |
||
|
36351D
|
36351D
90480-17401 Grommet (For High & Low Shift Rod)[11.1984 - 01.1990] BJ7#,LJ71 |
90480-17401 |
US $2.87 |
||
|
36362
|
36362
36362-60020 Lever, Transfer High And Low Shift Outer[11.1984 - 01.1990] BJ7#,LJ71 |
36362-60020 |
US $6.29 |
||
|
9020108026
|
9020108026
90201-08026 New Genuine Part |
90201-08026 |
US $1.31 |
||
|
9020108065
|
9020108065
90201-08065 Washer, Plate(For Control Select Lever) |
90201-08065 |
US $1.08 |
||
|
9020615081
|
9020615081
90206-15081 Washer Wave(For Hydraulic Motor Vane Pump Pulley Seat) |
90206-15081 |
US $1.31 |
||
|
9046816012
|
9046816012
90468-16012 Pin, Sub Seat Cushion Pin |
90468-16012 |
from US $0.87 |
||
|
9052021001
|
9052021001
90520-21001 New Genuine Part |
90520-21001 |
US $4.37 |
||
|
9112150845
|
9112150845
91121-50845 Bolt (For Floor Shift Control Lever) |
91121-50845 |
US $1.05 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.18 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.87 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.68 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.78 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $3.05 |
||
|
9453101600
|
9453101600
94531-01600 WASHER |
94531-01600 |
US $0.61 |
||
|
9454100800
|
9454100800
94541-00800 New Genuine Part |
94541-00800 |
US $1.79 |
||
|
9461211001
|
9461211001
94612-11001 Washer, Plate (For Center Support Bearing Housing) |
94612-11001 |
from US $1.08 |
||
|
9461211300
|
9461211300
94612-11300 Washer(For Outer Lever Oil Setting) |
94612-11300 |
from US $0.68 |
||
|
9461211600
|
9461211600
94612-11600 Washer, Shift Lever Shaft Housing, No.2 |
94612-11600 |
US $1.97 |
||
|
9538102518
|
9538102518
95381-02518
PIN
|
95381-02518 |
— | ||
