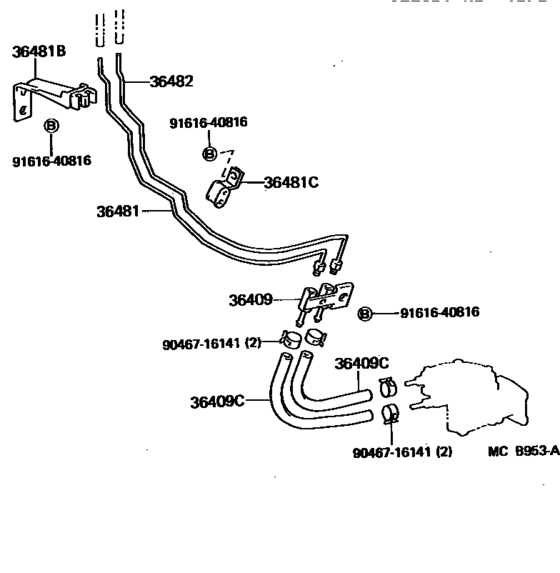

Transfer Vacuum Piping ([11.1984 - ] (8411- )) Diagram Toyota LAND CRUISER
- Year
- 1985 - 1990
- Sales region
- Japan
- Frame
- BJ71
- grade
- LX
- body
- HT
- ENGINE
- 13BT
- TRANSMISSION
- MTM
- Model
- LAND CRUISER 70
- From
- 10.1985
- To
- 01.1990
- Vehicle Model
- Land Cruiser S/T,H/T
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36409
|
36409
36409-60030
Support Sub-Assy, Vacuum Tube Union
[11.1984 - 01.1990] BJ7#,LJ71 |
36409-60030 |
— | ||
|
36409C
|
36409C
95441-09260
Hose, Vacuum, No.1 (For Front Drive Shift)
[11.1984 - 01.1990] BJ7#,LJ71..MTM 長さ＝２６０ |
95441-09260 |
— | ||
| replacement | |||||
|
36409C
|
36409C
95446-09300 Hose, Solenoid To Vacuum Tube[11.1984 - 01.1990] BJ7#,LJ71..MTM 長さ＝２６０ |
95446-09300 |
US $11.65 |
||
|
36409C
|
36409C
95441-09300
Hose, No.2(For Clutch Booster Vacuum)
[11.1984 - 01.1990] BJ7#,LJ71..MTM 長さ＝３００ |
95441-09300 |
— | ||
| replacement | |||||
|
36409C
|
36409C
95446-09300 Hose, Solenoid To Vacuum Tube[11.1984 - 01.1990] BJ7#,LJ71..MTM 長さ＝３００ |
95446-09300 |
US $11.65 |
||
|
36481
|
36481
36481-60070
Tube, Front Drive Vacuum, No.1
[11.1984 - 01.1990] BJ7#,LJ71 |
36481-60070 |
— | ||
|
36481B
|
36481B
47371-60040
Clamp, Front Drive Vacuum Tube, No.1
[11.1984 - 01.1990] BJ7#,LJ71 |
47371-60040 |
— | ||
|
36481C
|
36481C
47372-35010 Clamp, Front Drive Vacuum Tube, No.2[11.1984 - 01.1990] BJ7#,LJ71 |
47372-35010 |
US $7.51 |
||
|
36482
|
36482
36482-60070
Tube, Front Drive Vacuum, No.2
[11.1984 - 01.1990] BJ7#,LJ71 |
36482-60070 |
— | ||
|
9046716141
|
9046716141
90467-16141
Clip(For Clutch Reservoir Tube)
|
90467-16141 |
— | ||
|
9161640816
|
9161640816
91616-40816
Screw Or Bolt(for Valve Rocker Shaft Lock)
|
91616-40816 |
— | ||
| replacement | |||||
|
9161640816
|
9161640816
91611-B0816 Bolt |
91611-B0816 |
from US $0.99 |
||
